How to make Custom Sway Bar End links
- Thread starter HKPRO5
- Start date
03zoomzoom
Member
- :
- 2012 Mazda 3 i Touring
Any idea if this will work for both the front and rear links?
- :
- MSP 1145
of course it will. you just have to get /make different sizes
03zoomzoom
Member
- :
- 2012 Mazda 3 i Touring
I thought so, just wondered if I was overlooking something simple. Off to Jegs to get endlinks.
Rears are 8" in overall length for the MSP. So if you do the calculations from my earlier post you'd need a rod that's 7.125" in length. If your car is lowered (non-MSP springs), then set your sway up parallel to the ground, while the car is on the ground, measure the distance from hole to hole, subtract .875 (if using aforementioned rod ends), and there's your rod length.
RGN .5 AASN
Member
- :
- MAZDA PROTEGE 5
yeah i am about to cut to length this weekend, mine are sitting on S Techs so i got to get under there and measure after i put the Progress sway bar on but i can take measurements for the front though...
alright. so i ordered the ball joints then mcmaster canceled it and told me they cant ship to canada anymore =( I have no idea where i can get these in canada... so anyone feel like acting as a shipping proxy for me =)?
- :
- MSP 1145
that sucks.. how much were the ball joints? how many did you order?
I ordered 4 at $5.47 each. they didn't quote any shipping in my order.. but i don't imagine shipping to canada is much more than $10 for that...
really hope to get these joints or something similar.. i don't wanna pay $81 usd for awr links. already got the stainless steel rod from my friend at work.
but if anyone is willing to proxy for me send me pm for details and stuff. would help a lot =)
really hope to get these joints or something similar.. i don't wanna pay $81 usd for awr links. already got the stainless steel rod from my friend at work.
but if anyone is willing to proxy for me send me pm for details and stuff. would help a lot =)
- :
- MSP 1145
heh. i'll do it. pmed.
03zoomzoom
Member
- :
- 2012 Mazda 3 i Touring
- :
- MSP 1145
nice dude. how much did you pay for those?
03zoomzoom
Member
- :
- 2012 Mazda 3 i Touring

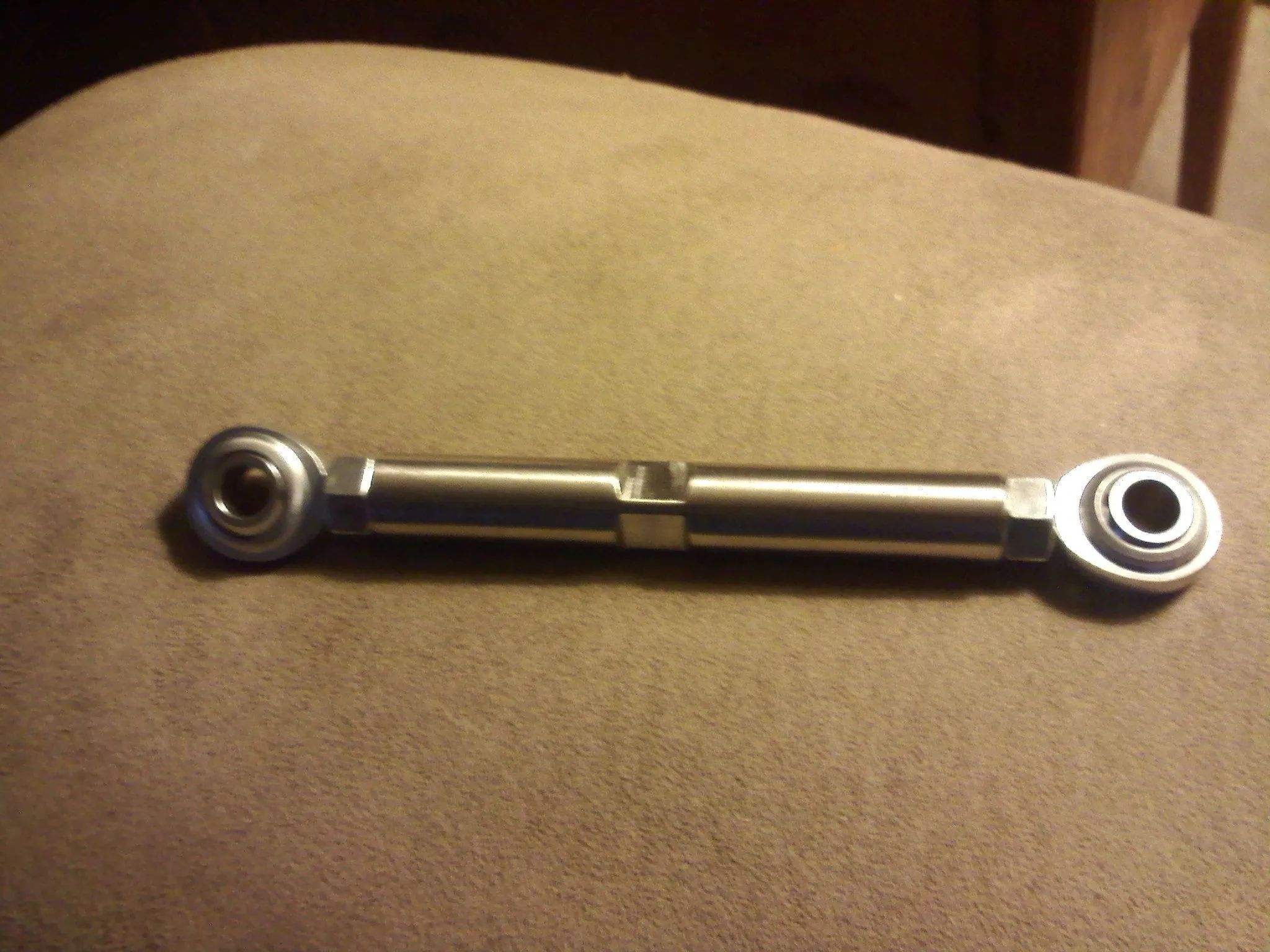

yep, whole assembly $45. I just was worried about using all-thread. I wasn't impressed with how it would hold up to the weather. with these the whole assembly is stainless. and if something happens you can just change out the end links.
