popinfreshpsk
Member
- :
- Mazda CX-5 2015
That what I would do I was just thinking you may know what the other pair would be at the bose amp to use for the other channel.
Thanks!! (2thumbs)
Finally! my Aftermarket Subwoofer and Amplifier Integration into Bose Audio How To
- Thread starter Skorpio
- Start date
That what I would do I was just thinking you may know what the other pair would be at the bose amp to use for the other channel.
Thanks!! (2thumbs)
popinfreshpsk
Member
- :
- Mazda CX-5 2015
Finally! my Aftermarket Subwoofer and Amplifier Integration into Bose Audio H...

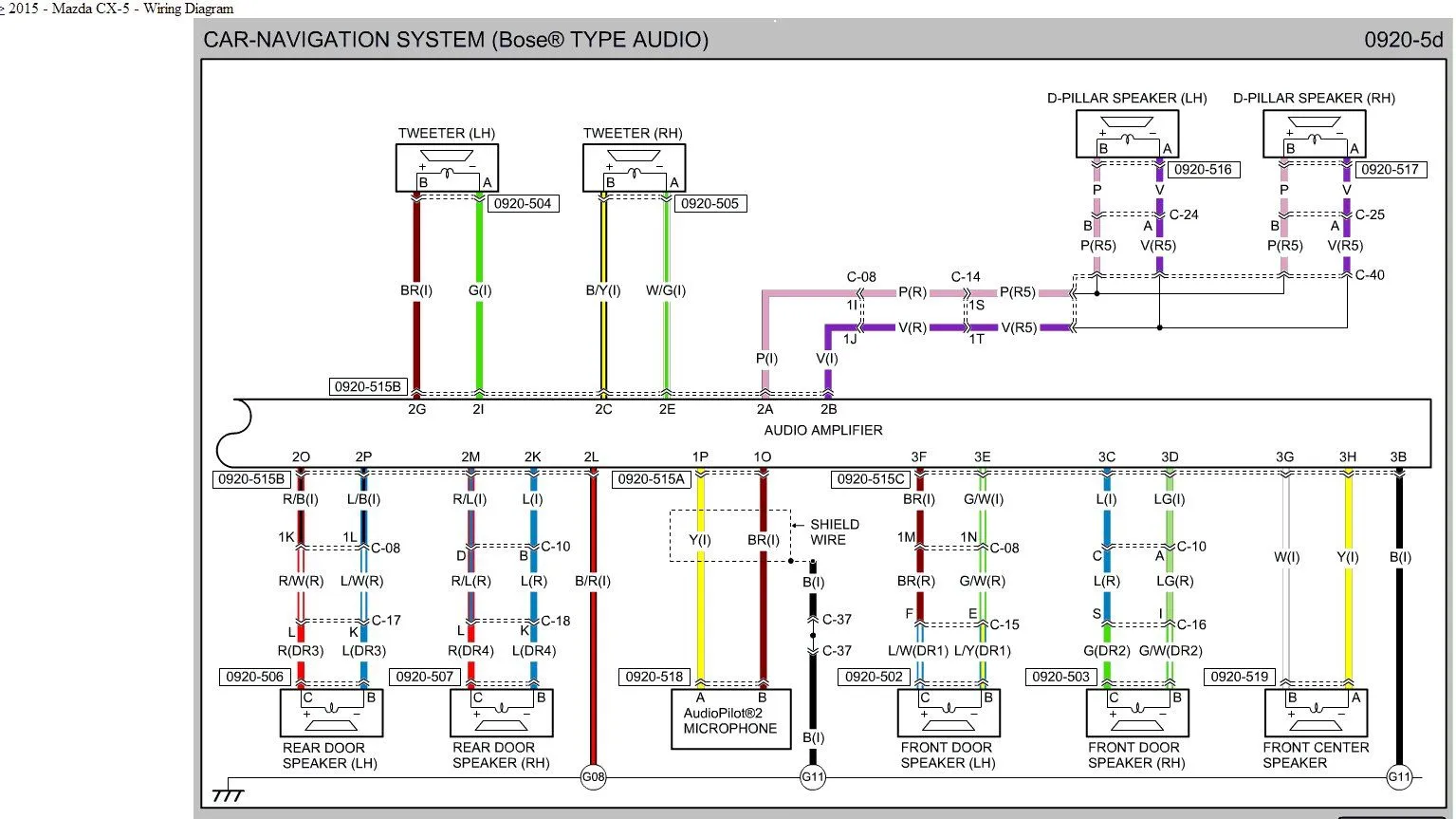

Yes, I was shown this same diagram from another member Bmarsh. I probably should have posted it but he showed it to me after the install. Hopefully, it helps you all.
Yes, I was shown this same diagram from another member Bmarsh. I probably should have posted it but he showed it to me after the install. Hopefully, it helps you all.
popinfreshpsk
Member
- :
- Mazda CX-5 2015
So am I right to think that you tapped into the positive left front door and negative front center?? Brown, Yellow of the 3rd harness. Just want to make sure I am going to tap into the correct harness on the diagram.
Not to my knowledge, but for this install I went by the seat of my pants (and Power Probe III circuit tester).
looking at the diagram, your assessment seems correct. I may have to reevaluate my wiring, as it's not as professional as it could be. I do know it works though.
Ah, maybe that explains some of my confusion.
I'm pretty sure the connector in your picture isn't where you tapped into the yellow and brown speaker wires. The connector with the speaker connections should be the 0920-515C, with only 8 wires in it, and the yellow and brown wires connect to the left (brown, +, 3F) and center (yellow, -, 3H). Since these are speaker outputs, you would need your LOC! The connector in your picture is the 0920-515A (16 positions, with six places open), and the yellow and brown wires go to the AudioPilot microphone. The 0920-515B connector doesn't have a yellow and brown wire (solid colors, at least).
Skorpio, you might want to move the tap from the yellow wire to the blue wire (3C in the diagram). Since there probably isn't much bass on the center speaker (probably only when centerpoint is turned on), you are probably only 'hearing' the left channel. Maybe when you turned on centerpoint that's why it sounded so different?
I've got everything I need except TIME to install my sub. I hope to document it as well as Skorpio did! (2thumbs)
Finally! my Aftermarket Subwoofer and Amplifier Integration into Bose Audio H...
I'm going to do some experiment some this weekend with the wiring and see if I can't solve this mystery. However, the centerpoint option has always been on, but it seems to only "activate" when I play a CD, not Bluetooth or XM, hence the difference in sound. Even though there isn't much bass from the small center speaker, I believe it's because of speaker size, not from the audio signal itself. I definitely get a bass signal, "whaaat? Huuh?" (lol2)
Please share with us your install Bmarsh! (thumb)
I'm going to do some experiment some this weekend with the wiring and see if I can't solve this mystery. However, the centerpoint option has always been on, but it seems to only "activate" when I play a CD, not Bluetooth or XM, hence the difference in sound. Even though there isn't much bass from the small center speaker, I believe it's because of speaker size, not from the audio signal itself. I definitely get a bass signal, "whaaat? Huuh?" (lol2)
Please share with us your install Bmarsh! (thumb)
Last edited:
For sure!
My time issue is that every weekend I'm training to hike up Mt. Whitney (highest peak in the continental U.S.) at the end of July. It doesn't leave much time each weekend
For sure!
My time issue is that every weekend I'm training to hike up Mt. Whitney (highest peak in the continental U.S.) at the end of July. It doesn't leave much time each weekend
Too cool brother! I'm envious!
popinfreshpsk
Member
- :
- Mazda CX-5 2015
Can't wait to hear your results. I've ordered my supplies so I'll be right behind you. I'm planning on putting my 2 10s some how in the spare wheel well without having to build a new box.
I believe the center point only comes on with CDs.
Two 10's in the spare well?! Can't wait to see your results, as well! Keep me informed! I'm looking for a permanent install to put my 12 into. Or, possible one or two 10's. I'm also keeping keeping an eye on Mazstyle's build for ideas. (drinks)
popinfreshpsk
Member
- :
- Mazda CX-5 2015
So my Current Boxes wont fit. Over 12" Tall
I measured the space for the wheel well and here is what I designed using some CAD software.
You have to plug the harness back in.
Finally! my Aftermarket Subwoofer and Amplifier Integration into Bose Audio H...

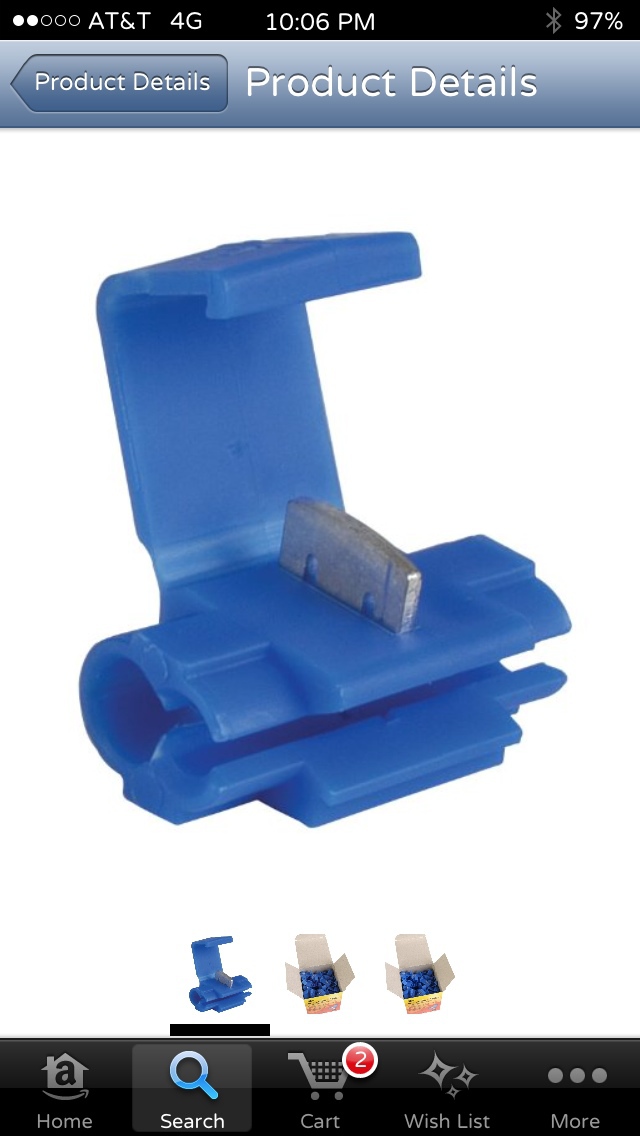

The harness must be plugged back in or you won't have any sound. The wires are just tapped into via wire taps
The harness must be plugged back in or you won't have any sound. The wires are just tapped into via wire taps
(Chanting) build it!....build it!!
Last edited:
popinfreshpsk
Member
- :
- Mazda CX-5 2015

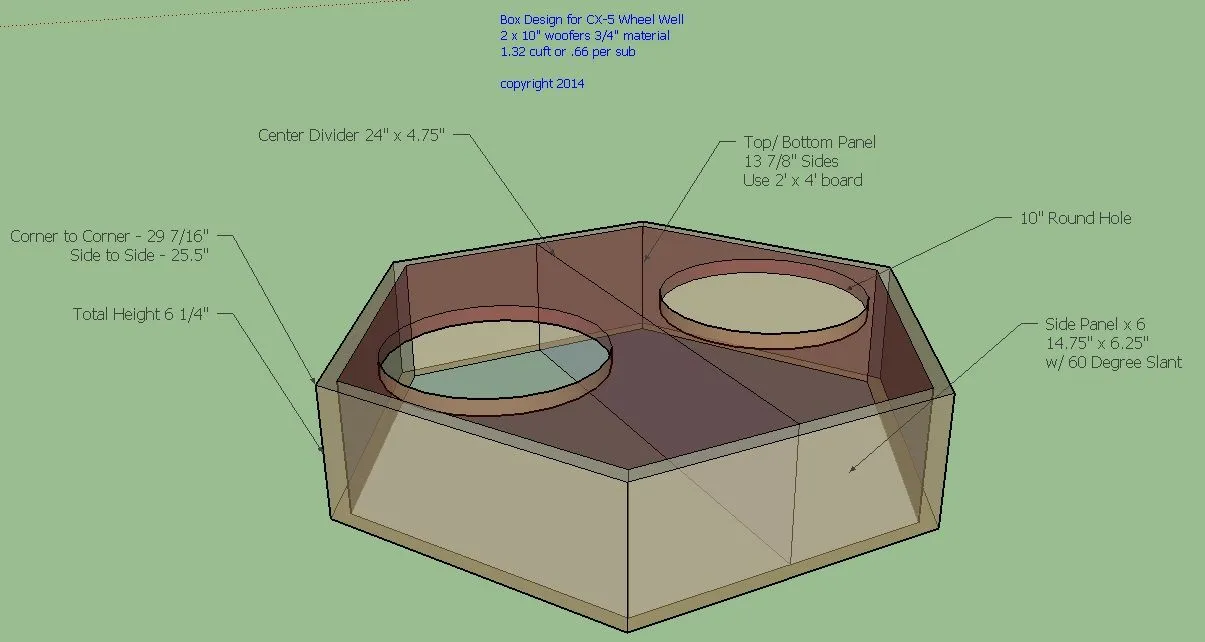

So my Current Boxes wont fit. Over 12" Tall

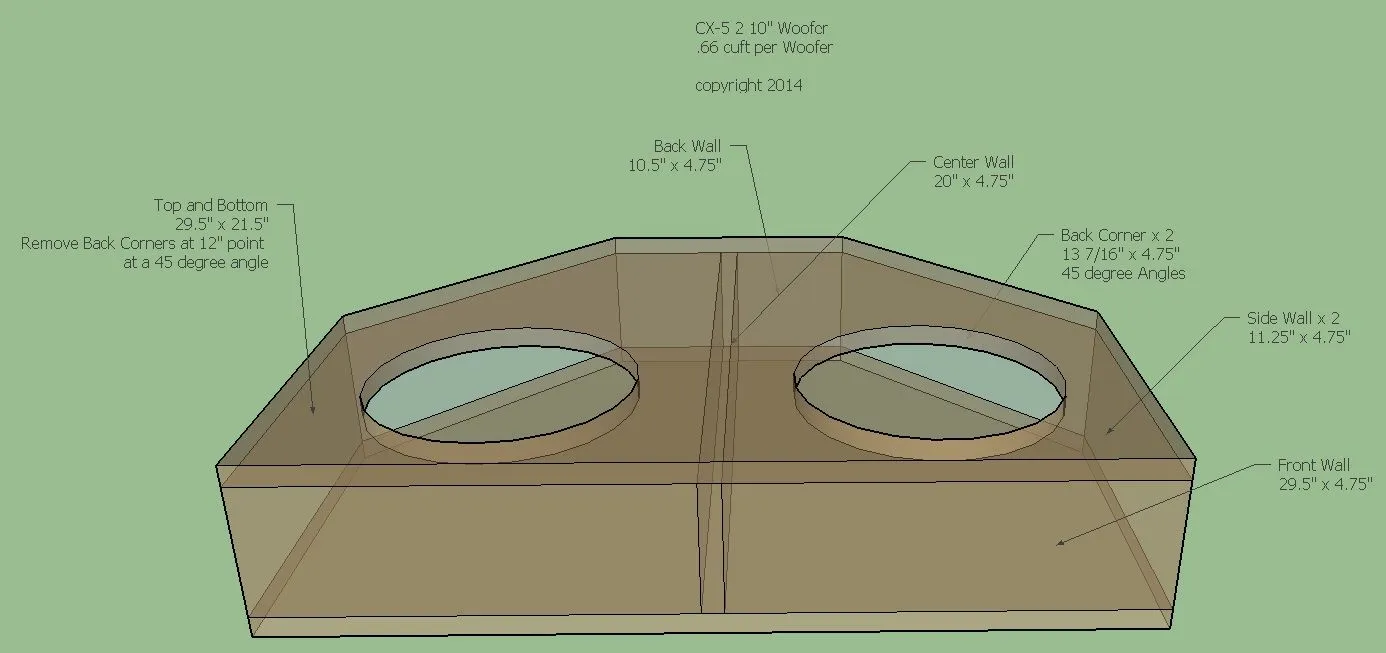

I measured the space for the wheel well and here is what I designed using some CAD software.
View attachment 207888

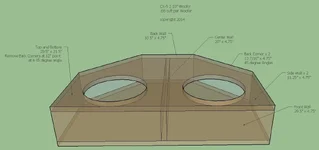

Another Design. A little easier to build and better fit.
Also created a subreddit. http://www.reddit.com/r/CX5/
Last edited:
Finally! my Aftermarket Subwoofer and Amplifier Integration into Bose Audio H...
Ok, so now that I got a little time, I took the harness off the Bose amp and see that the LF speaker is brown and green/white stripe. Since I already had the brown one tapped, I removed the yellow wire and tapped it into the gr/wt. I didn't think I was going to get an improvement, but it sound ALOT louder, like almost a 1/3 louder! I have to readjust my gain and remote bass knob down some, and my mirrors are taking a beating! So, in summary, the correct wires to tap is brown and green/white. Thanks go out to Bmarsh and Popinfreshpsk for the helpful diagrams! Now, I got to go paint my rear calipers and a how to rear brake job! (2thumbs)
Btw, a 12" and JL 500/1 v2 is way overkill (lol2), so for you guys thinking of 2 10's you're gonna rattle some interior pieces loose! (hearya)
Ok, so now that I got a little time, I took the harness off the Bose amp and see that the LF speaker is brown and green/white stripe. Since I already had the brown one tapped, I removed the yellow wire and tapped it into the gr/wt. I didn't think I was going to get an improvement, but it sound ALOT louder, like almost a 1/3 louder! I have to readjust my gain and remote bass knob down some, and my mirrors are taking a beating! So, in summary, the correct wires to tap is brown and green/white. Thanks go out to Bmarsh and Popinfreshpsk for the helpful diagrams! Now, I got to go paint my rear calipers and a how to rear brake job! (2thumbs)
Btw, a 12" and JL 500/1 v2 is way overkill (lol2), so for you guys thinking of 2 10's you're gonna rattle some interior pieces loose! (hearya)
Last edited:
heheh

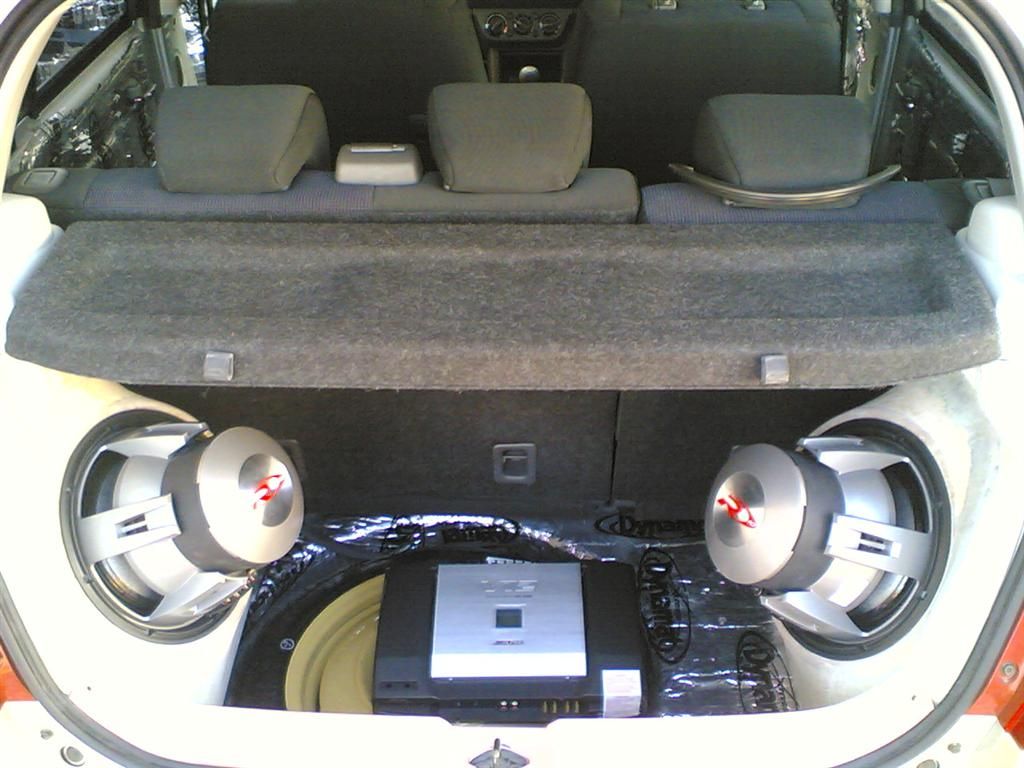

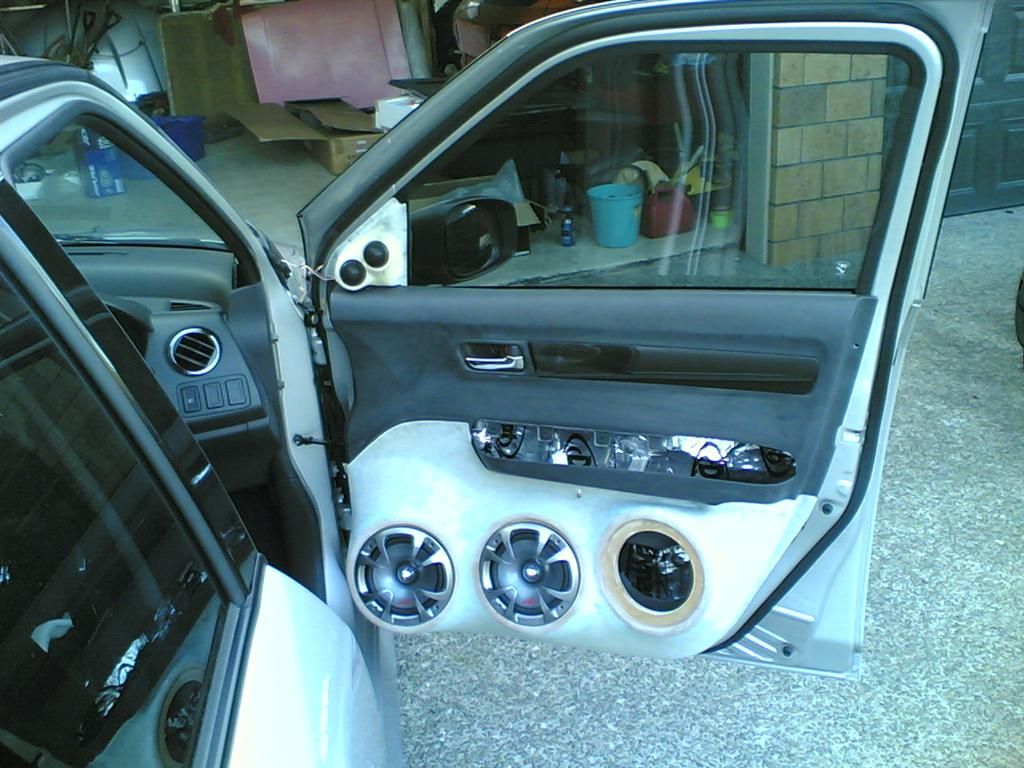

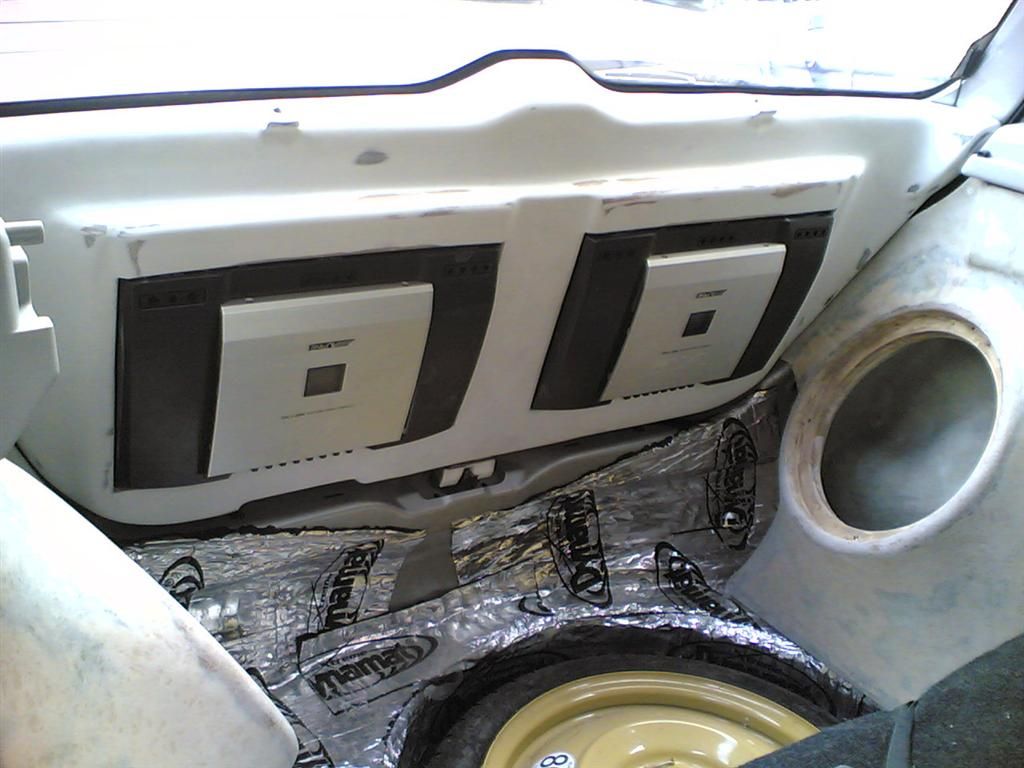

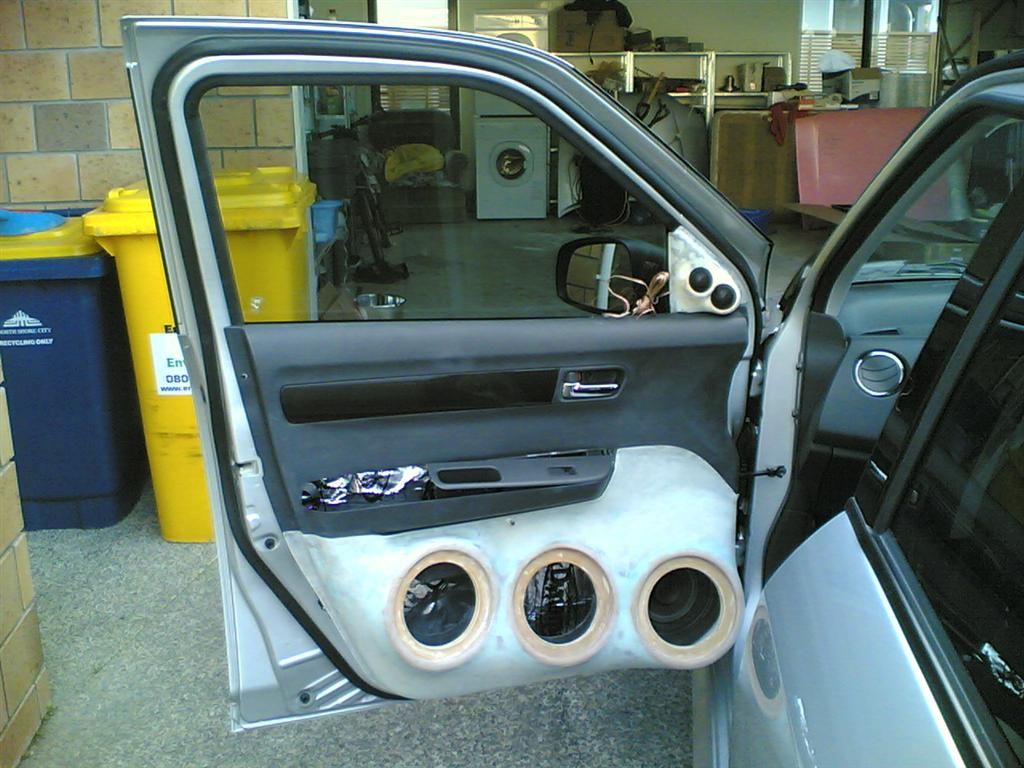

Perhaps i'm bias on wanting more subs, I did this basic upgrade on the wifes car.
Perhaps i'm bias on wanting more subs, I did this basic upgrade on the wifes car.
Mazstyle, you biased?! I couldnt tell(lol2)! I was about where you are about 8 years ago mod-wise, but I don't go crazy these days. But, looking at your posts make get the custom mod bug again (smash). Btw, does the door enclosures get in the way of your legs, or they make a good rest area (popcorn)
Skorpio, I wanted to say thank you for posting this thread. I was reading thread after thread with so many questions. It seamed like everyone was posting the wire diagram for the NON bose system, and finally I found all the needed info in one thread.
