2023 CX-5 Turbo Whining Noise
- Thread starter jov_
- Start date
PTSanchez
2018 CX-5 GT FWD 42M: Deep crystal blue mica
Sure, check those DTCs.
The audio file above is of no help, but do have a look here:
mazdas247.com
The audio file above is of no help, but do have a look here:
New CX-5, high pitched whine at 80 km/h (50 mph)
I recently bought a 2021.5 CX-5 GS AWD. When driving on secondary highways, I noticed a high pitched whine when the vehicle was going at 80 km/h (50 mph). The sound is distinct but is not particularly loud, i.e. you can't really hear it with the radio on or if the ventilation fan is above the...
Last edited:
My 23 Turbo has the exact same noise, however a little less loud. So far I've taken it four times to two different dealers and Mazda has deemed it as normal operation. Mine has less miles than yours (10K), but pretty much started noticing it at 1.5k miles when I first took it to the dealer for inspection.
Funny thing is the last time I took it in the mechanic said they put a stethoscope and could hear the noise coming from the transmission, but Mazda's hotline deemed it as normal operation and they will not be replacing anything.
I think Mazda knows about this issue considering previous TSBs, but will only proceed with replacing a transmission on cars with higher mileage as it does not help their reliability ratings.
I am beyond frustrated that they have not fixed mine so far and just shows the poor customer service of Mazda. I'll keep reporting the noise every time I take it in for a service and hopefully they fix it at some point. If not, then will be considering trading it as it very annoying driving around and hearing a high pitched whining noise.
I'm glad you're getting yours sorted!
We just purchased a 2021 CX5 GT Turbo with only 21000Km and I have noticed an annoying high pitch whining noise when accelerating and deceleration. When we test drove it, I mentioned it to the salesman and he said it's probably the fan. Well, it's definitely not the fan. I'm taking it to the dealership to have them access the noise. Not sure if they will do anything, as it sounds like it's a noise that is common from what I've read. I wish I had tinnitus like my husband has. He can't hear the noise at all. I told him he can have the vehicle & I will go back to my Honda Civic turbo with no noise. I will post the results after the appointment in a few weeks from now.
Ok, thank you. We figured it might be a transmission problem
The issue is the bearing in these pictures. It goes in the center case of the transmission and splines into the output gear of the transmission and it helps support the geartrain. If any debris gets inside them it can grab the roller surfaces and pit the bearing. Because the transmission output gear is directly supported by the bearing it will make noise as the vehicle speed increases. The bearing is put in place and partially integrated into the surrounding case. There is an aftermarket process that you can sleeve the case and install a new bearing or you purchase a new case half from Mazda.

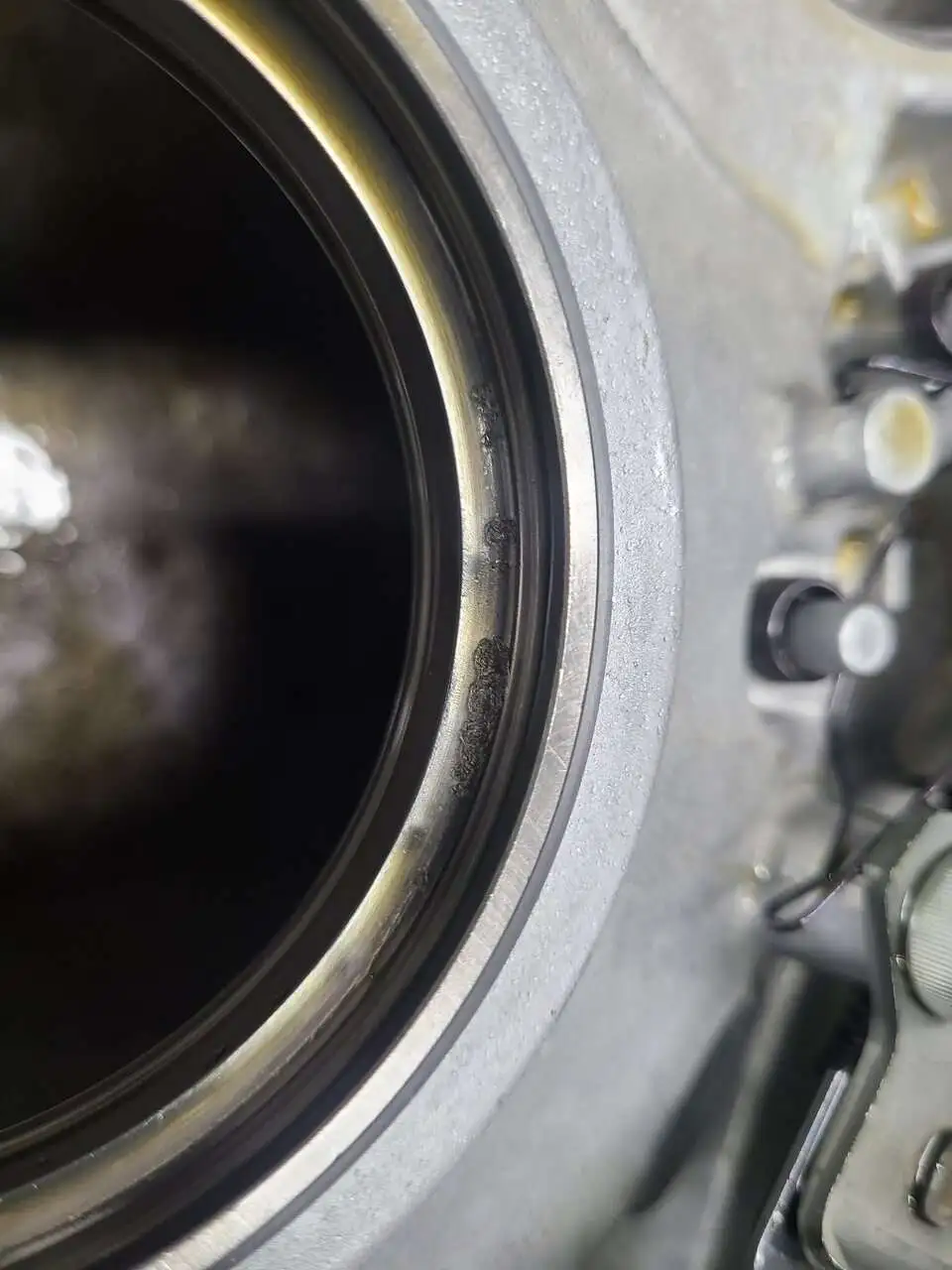

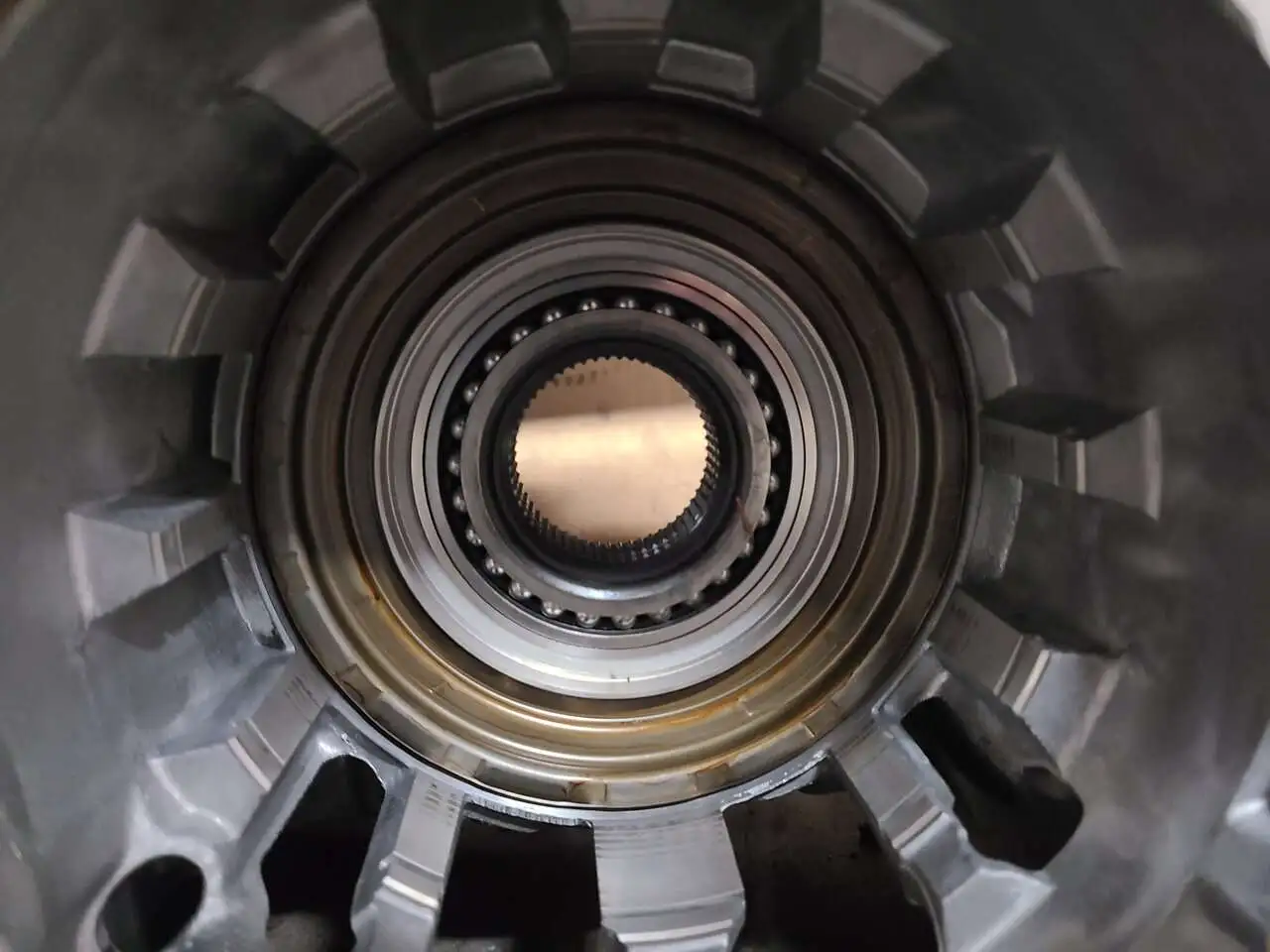

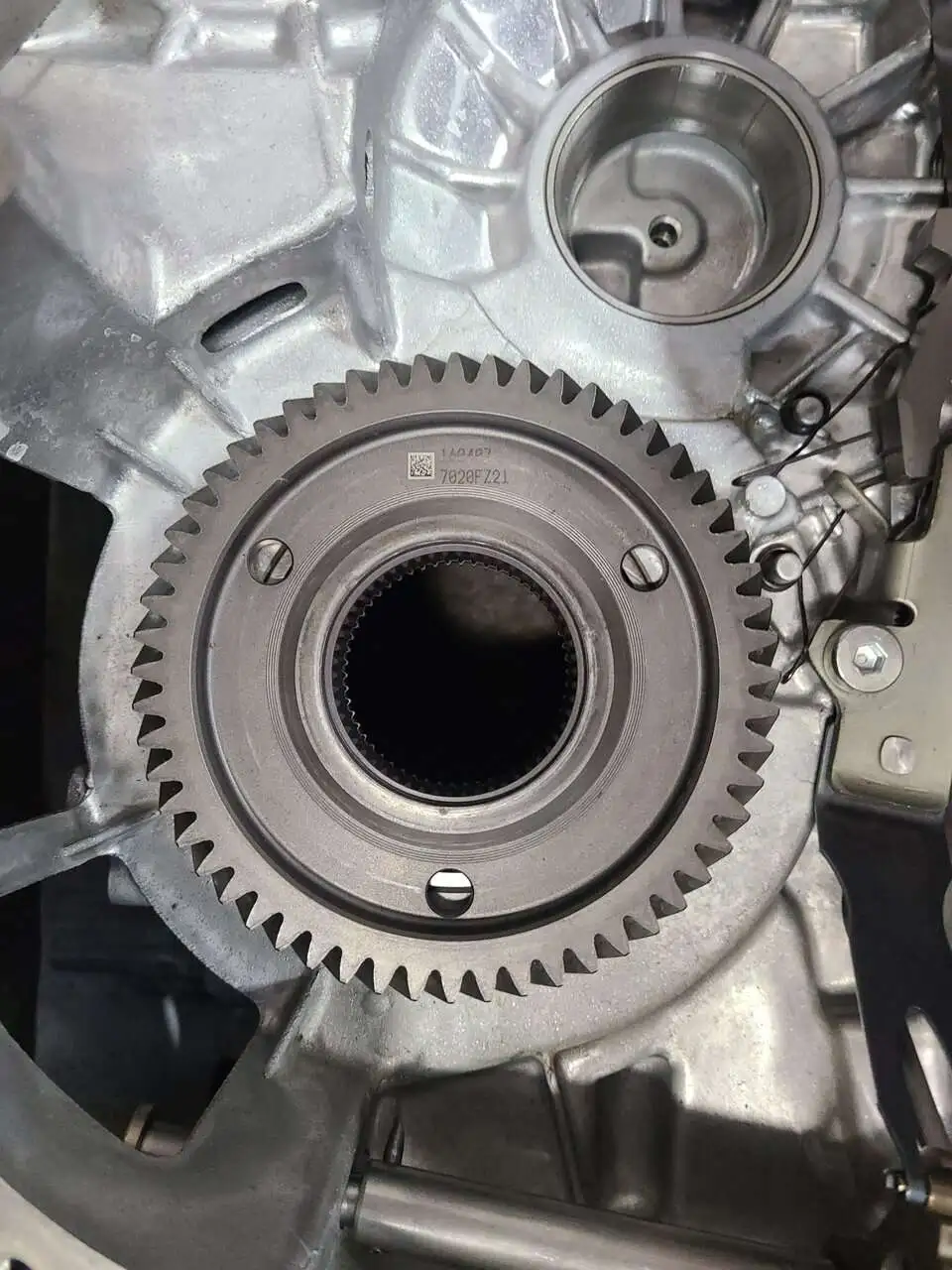

The first two pictures are the center case where the bearing is, on one side is the output gear, the other is the bearing in the case.

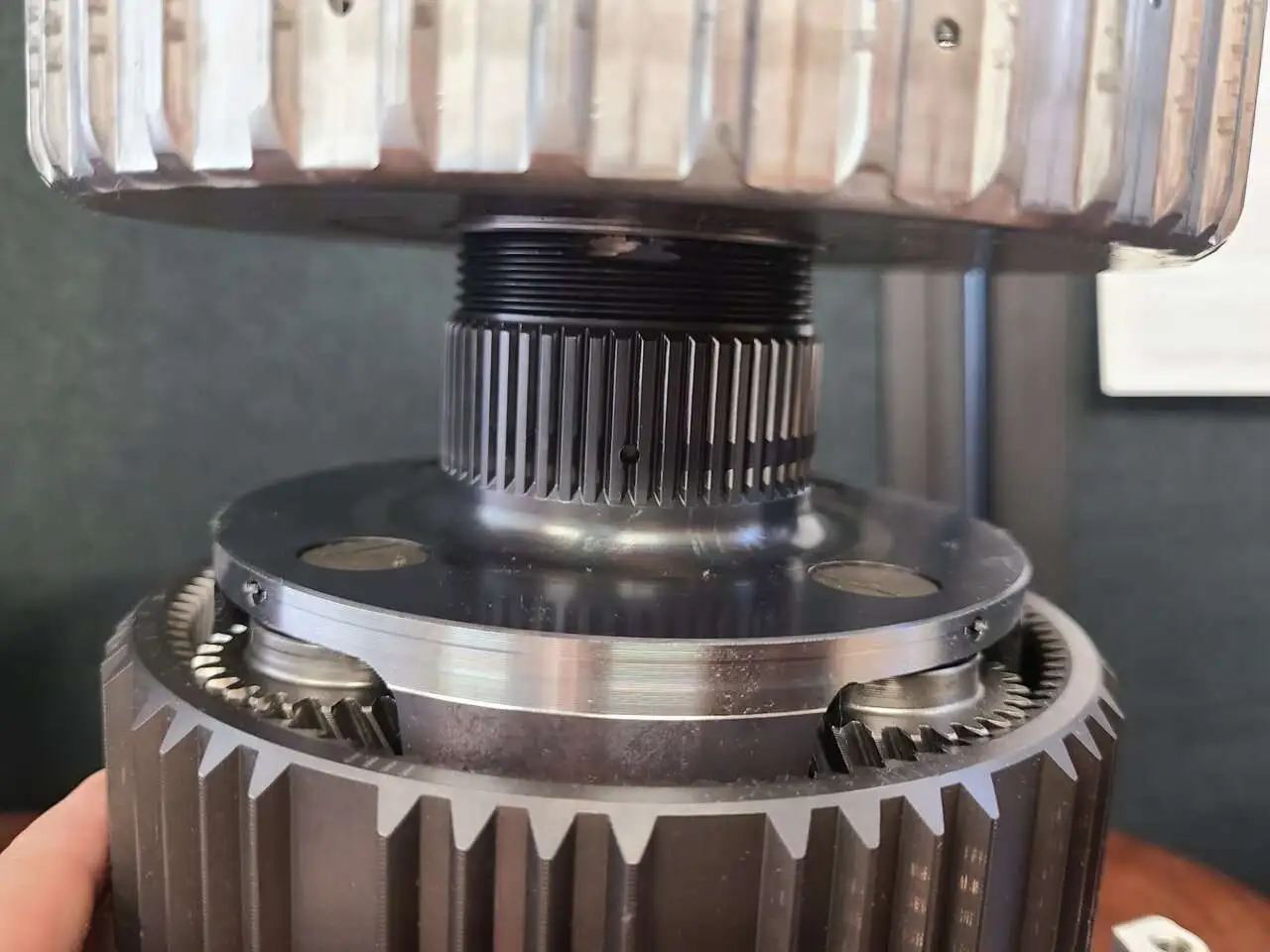

Third picture is the part of the planet the output gear slides over.

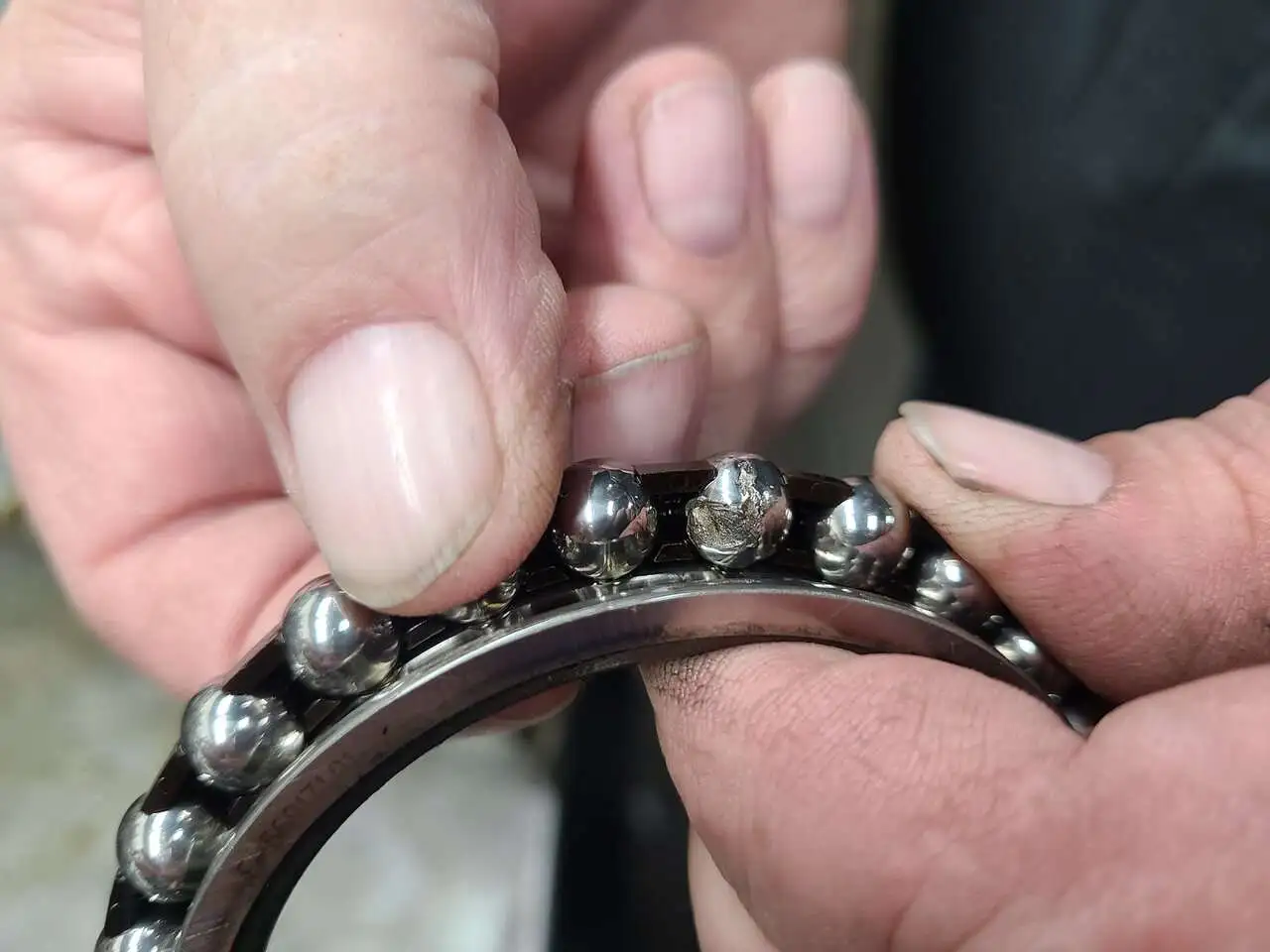

Last picture is the bearing itself, pitted rollers and damaged race.
The first two pictures are the center case where the bearing is, on one side is the output gear, the other is the bearing in the case.
Third picture is the part of the planet the output gear slides over.
Last picture is the bearing itself, pitted rollers and damaged race.
Attachments
Hence why it is they replace the entire trans and don't do a repair. So, basically can happen to anyone with this transmission, doesn't matter what year?
Yes it can happen to any year and any model. I don't see the failure often but it can happen.
So, a more aggressive fluid change schedule would lesson the probability of this happening?
I am a proponent of changing fluids in vehicles, personally I like every 30- 40k miles if you plan on keeping the car. The clutches used in the Skyactivs make a fair amount of debris because of the high carbon content in some of the clutch sets. I'm seeing valve body wear more common in the Skys lately causing failure and fluid is cheaper than an overhaul.
With regular (30-40K) fluid changes, is it necessary to change the filter or does the filter just catch the bigger particles. If filter change makes a big difference then at what mileage would you consider to be the maximum.
