What have you done to your CX-5 today?

[SoulRedCX]

Yes on the doors, sometimes. All depends how strong I slam the door I guess.

100% agree with the card. Have you tried going to a 256 or 512? I hear there's a way to do it.

I guess it's a qurik I have to live with. The doors on the CX-5 need a bit force to close.

As for SD cards, I'm running 256 gb, but that's the maximum capacity on mine.



[ruthrj]

Ok all done.... got the hardwire kit and finalized the install of the dashcam.

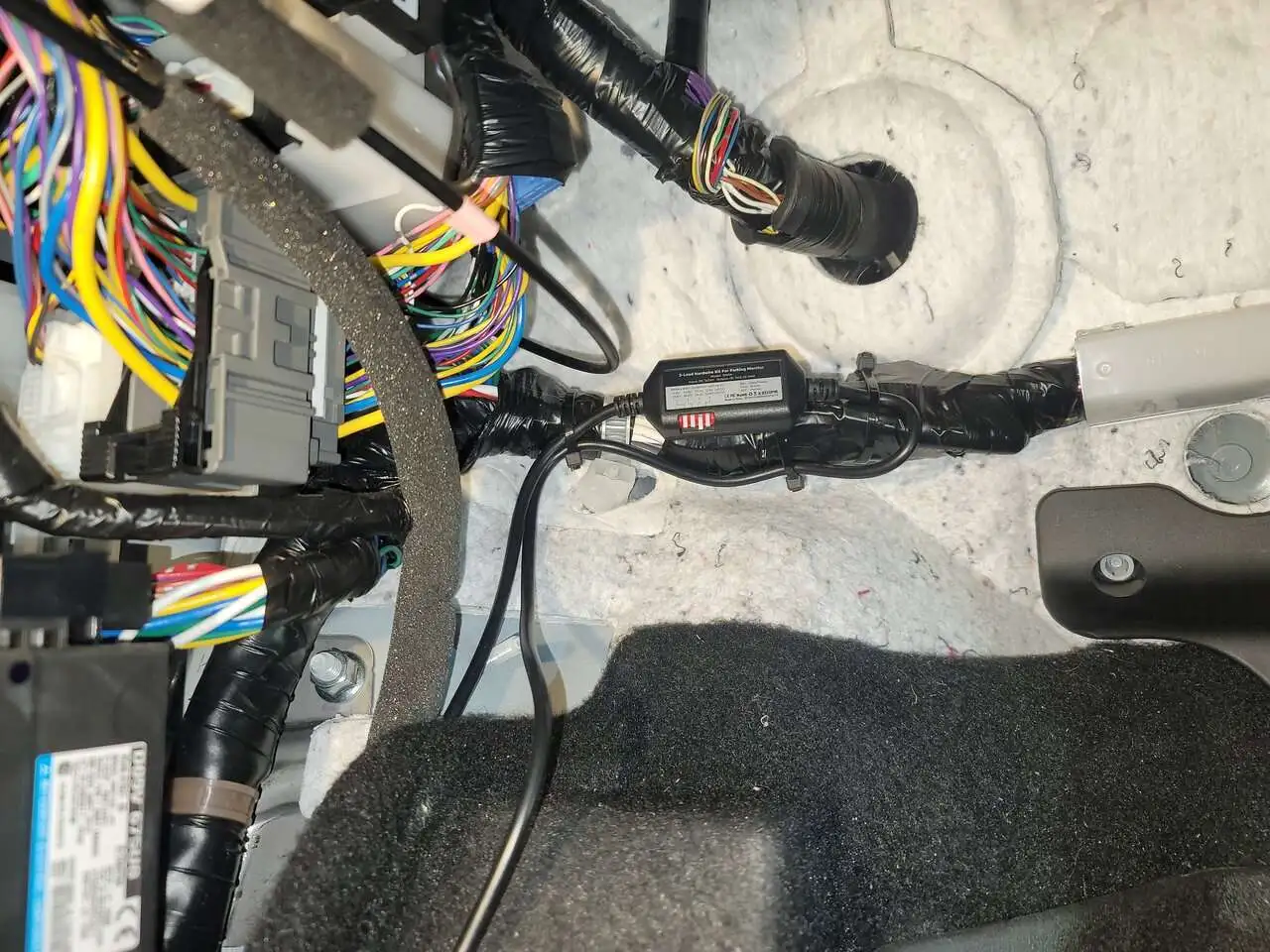

This is the battery saver. I kept it out and accessible so I can adjust the voltage if needed.

View attachment 323103

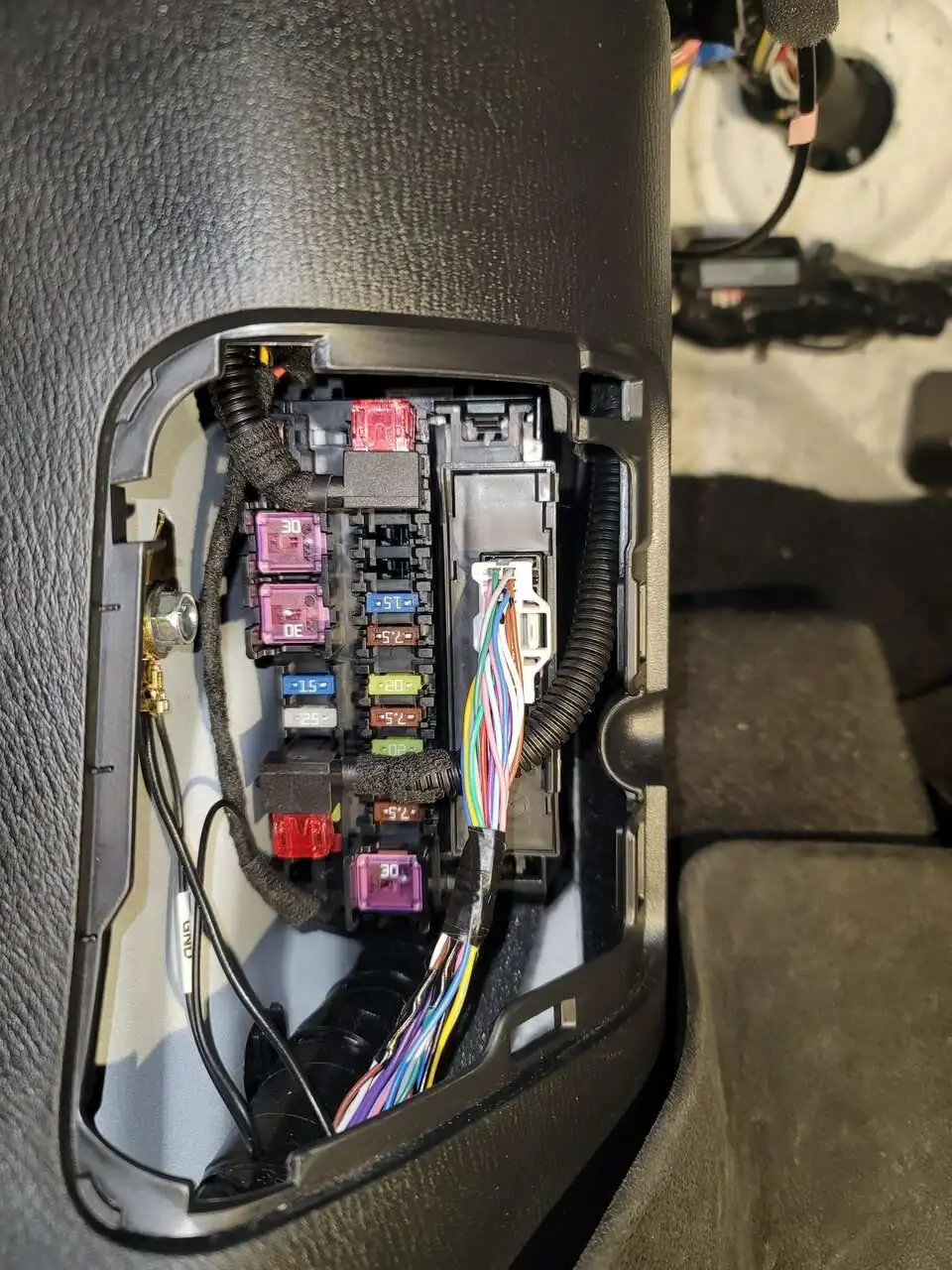

Here's the fuse box. I used #5 for the constant+ and #11 for the accessory+ (which was an empty slot).

View attachment 323104

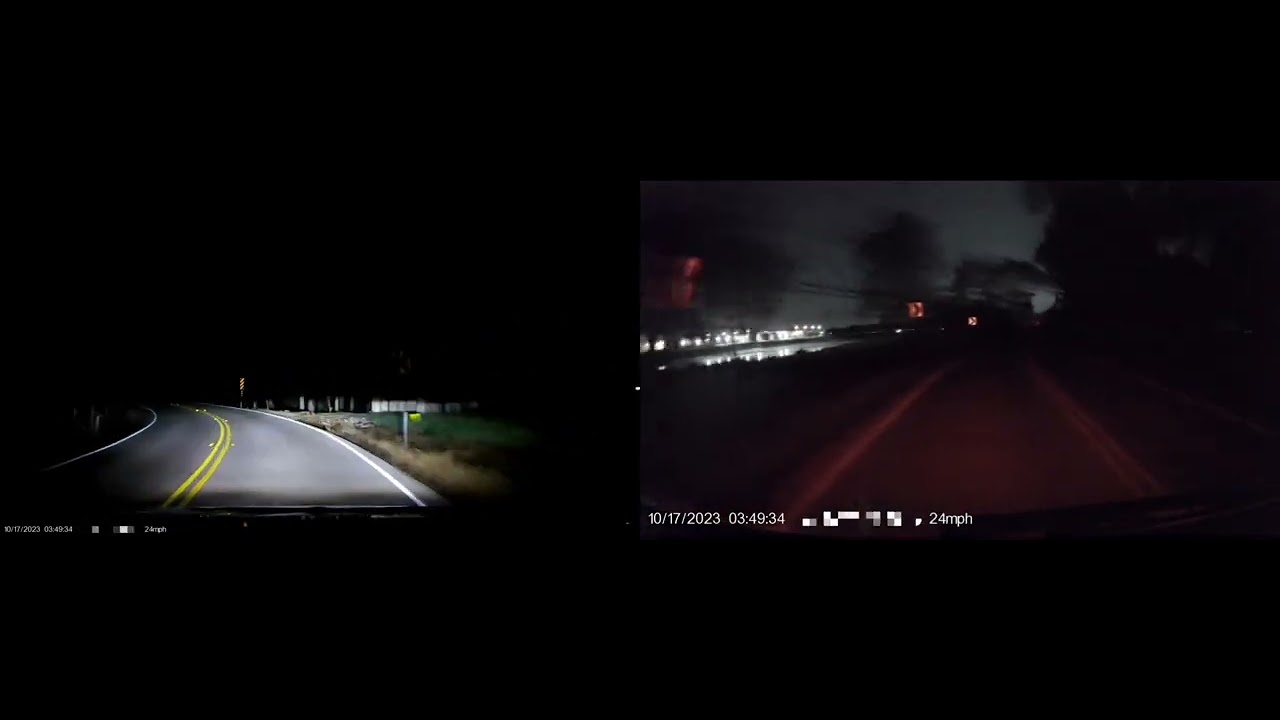

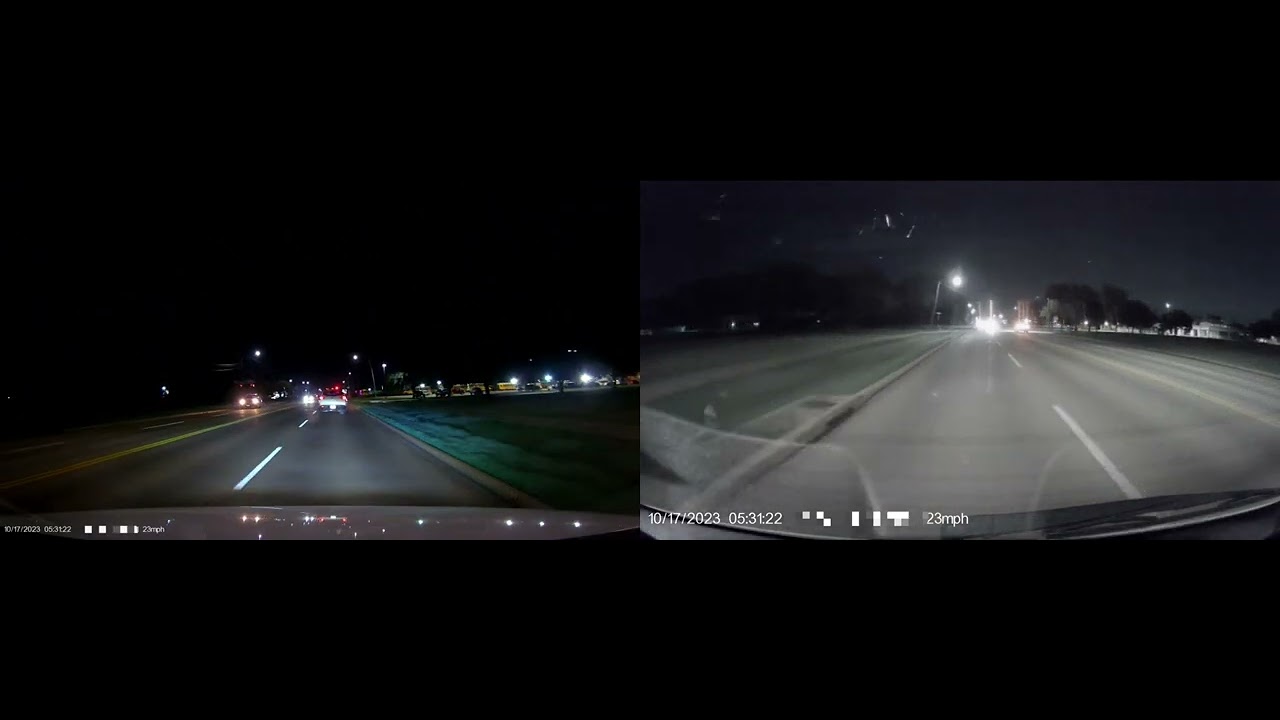

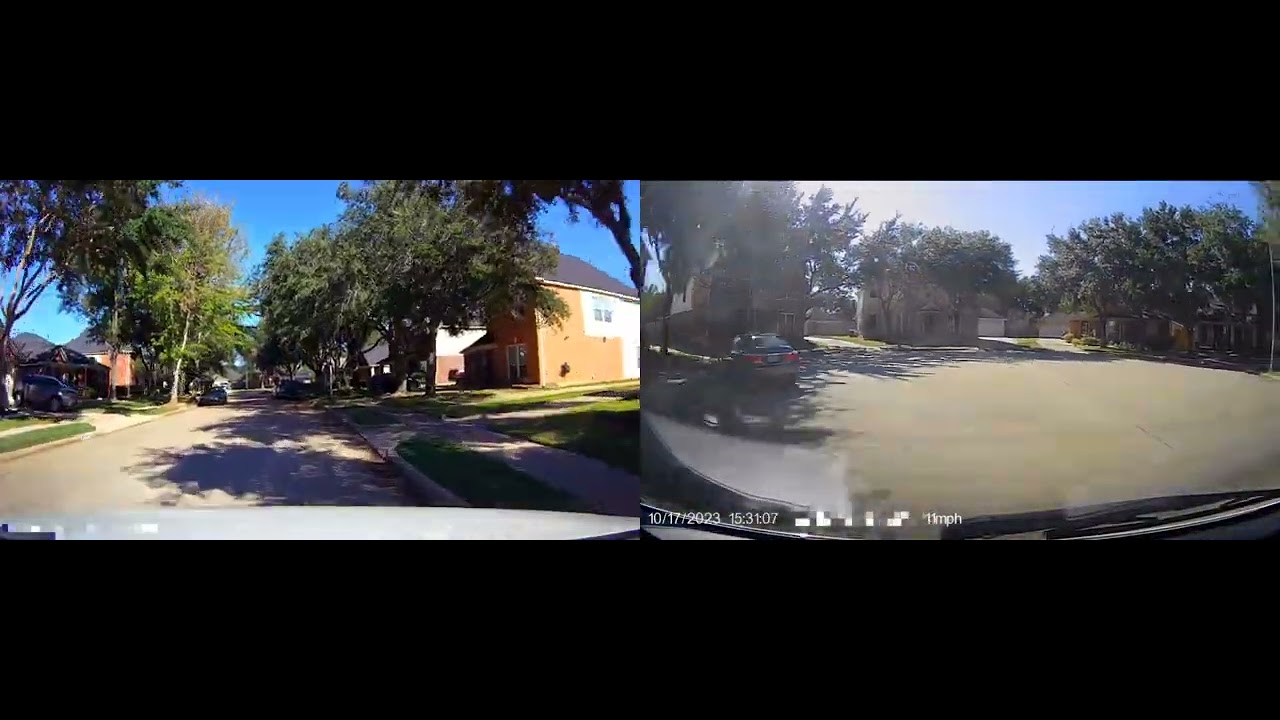

Here's a couple of sample (sped up) videos for the AZDome M300S. I need to get a filter to reduce the glare. I wonder if the filter for the U1000 work for this one.

AZDome M300S - Sample 1 (2019 CX5)

youtu.be

AZDome M300S - Sample 2 (2019 CX5)

youtu.be

AZDome M300S - Sample 3 (2019 CX5)

youtu.be

Thanks for sharing your install details. I ordered and installed a Viofo A119 and the HK3 hardwire kit. I probably won’t use the parking mode at all, but the hardwire kit was nice as I can’t find the Dongar rear view mirror adapter in stock anywhere.

I’m working on the Kahtec 3rd brake light flasher now. This is the third one I’ve installed and really like them. I opt for the “smart” version that has an 8s delay between brake pedal presses before it blinks again.



[chiefmg]

Oil/filter change, new wiper blades, waiting on a call to go pick up the wheels with the new tires. Went with General Altimax RT45 since they discontinued the RT43, hoping they are as good as the 43s have been.



[rzc]

Thanks for sharing your install details. I ordered and installed a Viofo A119 and the HK3 hardwire kit. I probably won’t use the parking mode at all, but the hardwire kit was nice as I can’t find the Dongar rear view mirror adapter in stock anywhere.

I'm not too familiar with the A119 (but I did came close to buying the version 3 this past weekend). Anyway, if there's an option for the parking mode, do it. I'm glad I did, my truck was hit by a delivery truck at work.



[rzc]

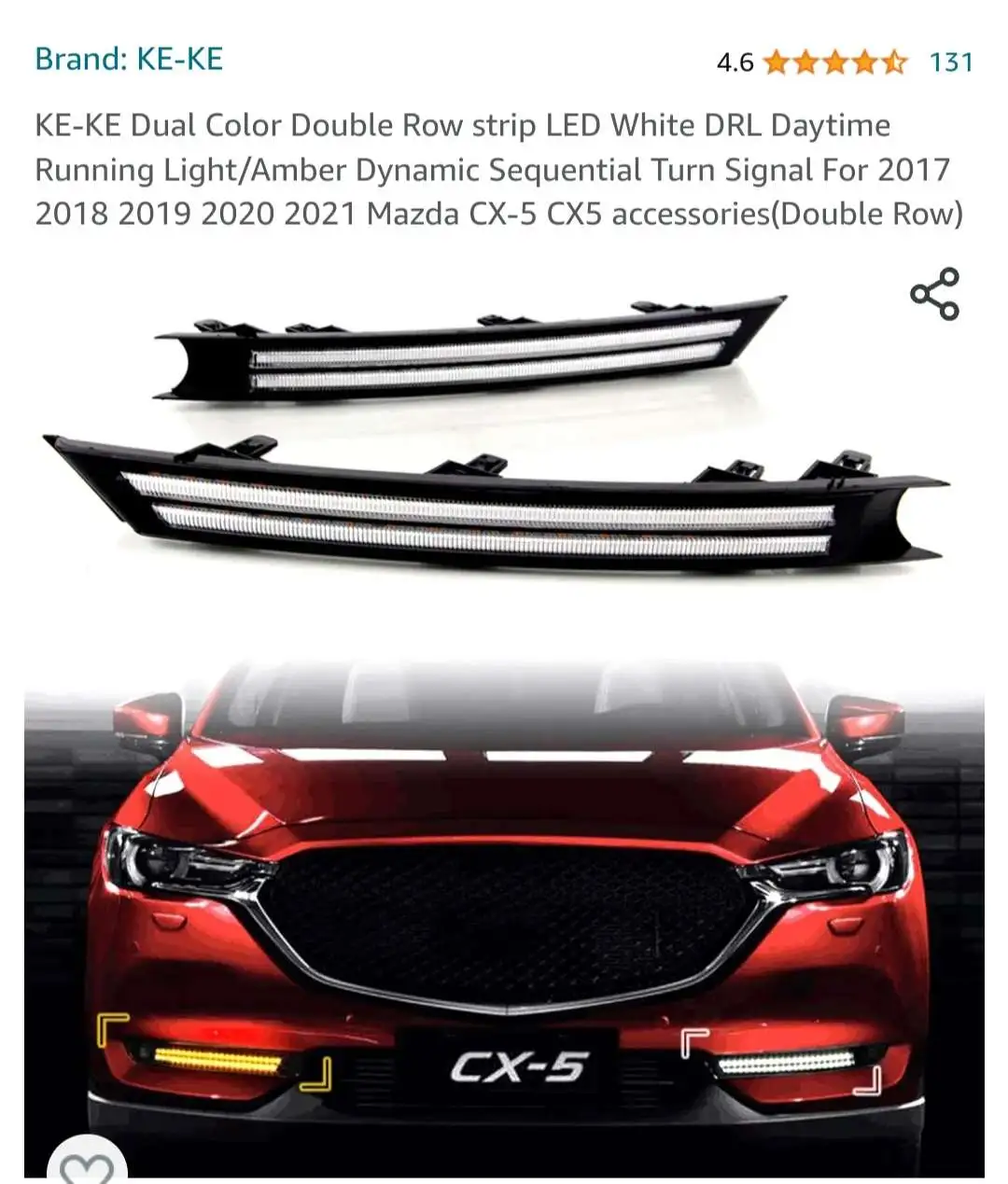

Just curious, anyone install this????

While on vacation, I purchased one locally. Can't wait to install it this weekend. I need to get the bumper off.

IMO the front turn signal light are not visible enough for the oncoming vehicle.



[SoulRedCX]

Just curious, anyone install this????

View attachment 323338

While on vacation, I purchased one locally. Can't wait to install it this weekend. I need to get the bumper off.

IMO the front turn signal light are not visible enough for the oncoming vehicle.

I can't comment on quality, but I can suggest replacing the stock front turn signal bulbs to LEDs.

With the CX-5, I recommend something like the VLEDS V6 Extreme or the GTR Lighting i-LED. They do cost a bit, but rest assured, they do catch attention.

V6 EXTREME AMBER

Radial Lens Optical grade polycarbonate lens creates radial 360° pattern for maximum intensity in the housing Adjustable Added spacer ring allows for two-position adjustment Resistors Many vehicles do not require load resistors but if needed VLR-15 meets load requirement Parking Cut Low...

www.vleds.com

7440/7443: GTR I-LED ULTRA

New Benchmark: When it comes to high performance LED Bulbs; the numbers game is simply an excuse for a lack of engineering, and GTR Lighting isn't here to play that game. The i-LED bulbs from GTR Lighting are here to win, and when you see them next to the aging competition, you won't worry much...

lightwerkz.net

I have the VLEDS in the front, while the GTRs are in the rear on my Civic.



[yrwei52]

IMO the front turn signal light are not visible enough for the oncoming vehicle.

That I agree with you on Gen-2 CX-5. The front turn signals are hidden at inner side of the headlight assembly with very small area. Worse, they use dual filament ember 7444NA bulb mixed with parking lights which won’t be as distinguishable as dedicated turn signals with on-off-on-off effect. Replacing front turn signals with “switch-back” 7444NA equivalent LEDs helps but it can’t solve the poor location and small area problem.



[RedBaron]

Just curious, anyone install this????

While on vacation, I purchased one locally. Can't wait to install it this weekend. I need to get the bumper off.

IMO the front turn signal light are not visible enough for the oncoming vehicle.

Yep. Had them on the wife's cars for several years now and very happy with them. Just a note... these are designed to butt up to the foglights, so if your car doesn't have them (ours didn't) you'll have to either get foglights too, or fab something to fill-in the gap. I ended up getting cheap aftermarket CX-5 foglights from China (and then a new turn-signal stalk with the switch!) to make it look good. The AliExpress foglights fitted and worked just like factory ones - plug and play with factory wiring - even though I hate using the stupid useless foglights on modern cars, so they stay off (I know, Doh!)



[PatrickGSR94]

I went with LASFIT amber LED's for both front and rear on our 2014 CX5. They have built-in circuitry to prevent hyper flashing, and are extremely bright. Had them a couple years now. The only issue is that if you sit with the turn signal on for several minutes, they will heat up enough that I guess the resistor circuit is bypassed, and it starts flashing quickly. But that almost never happens.

Went with those since there's no discreet flasher relay to replace, and I didn't want janky resistor boxes inside the trim panels.

7443 7444 CANBUS Error Free LED Turn Signal Light Anti Hyper Flash | Amber Yellow, 2 Bulbs

The brightest switchback led turn signal light in the market built in CANBUS system with amber bulb. Fit size: 7443, 7443a, 7443na, 7441, 7444, 7444na, etc. Plug and play, no need any extra resistors or parts.

www.lasfit.com



[GFrosty]

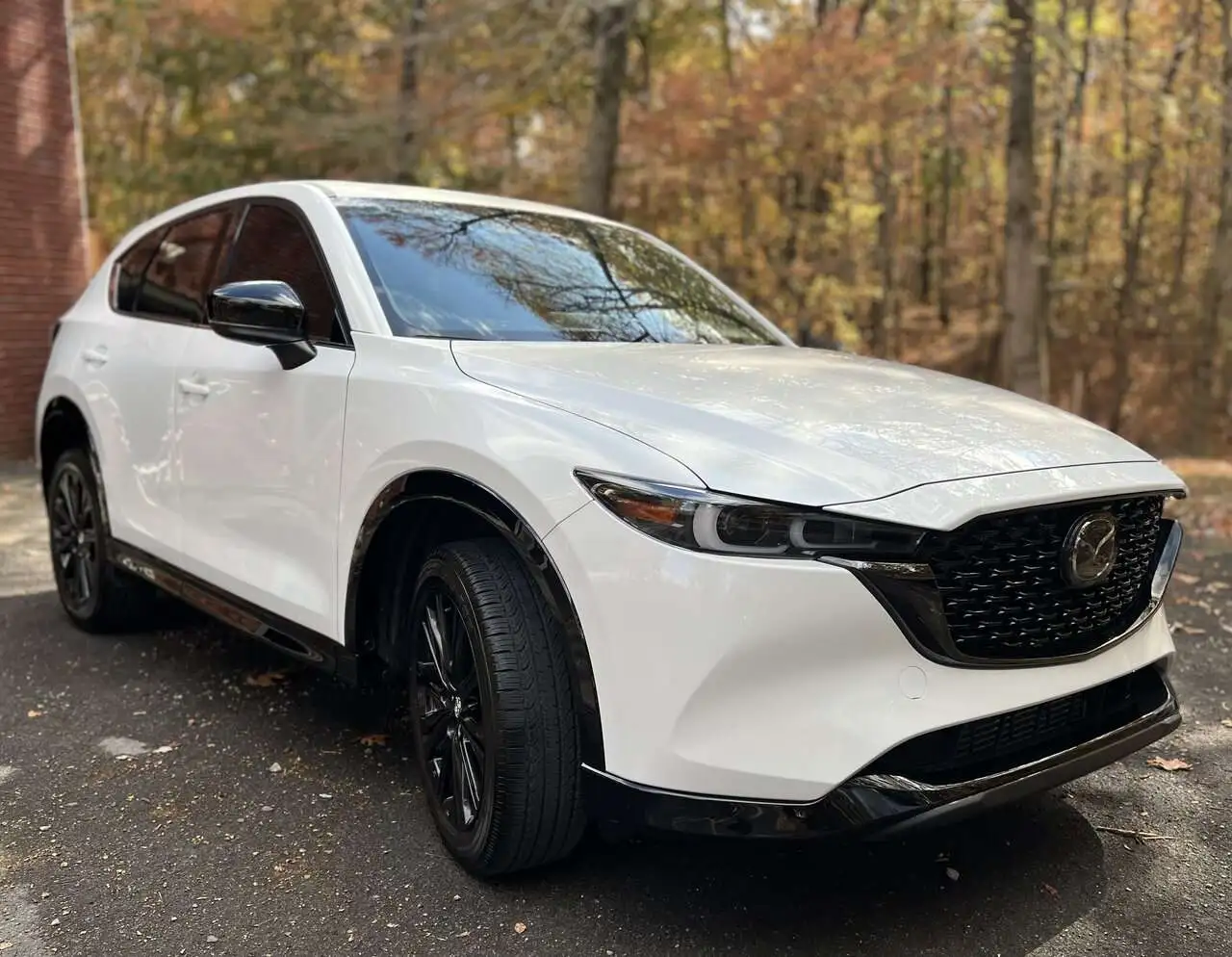

Cleaned up some residues on the black trim and wheel well areas. PreWow and BlackWow products. Good stuff.



[RL911]

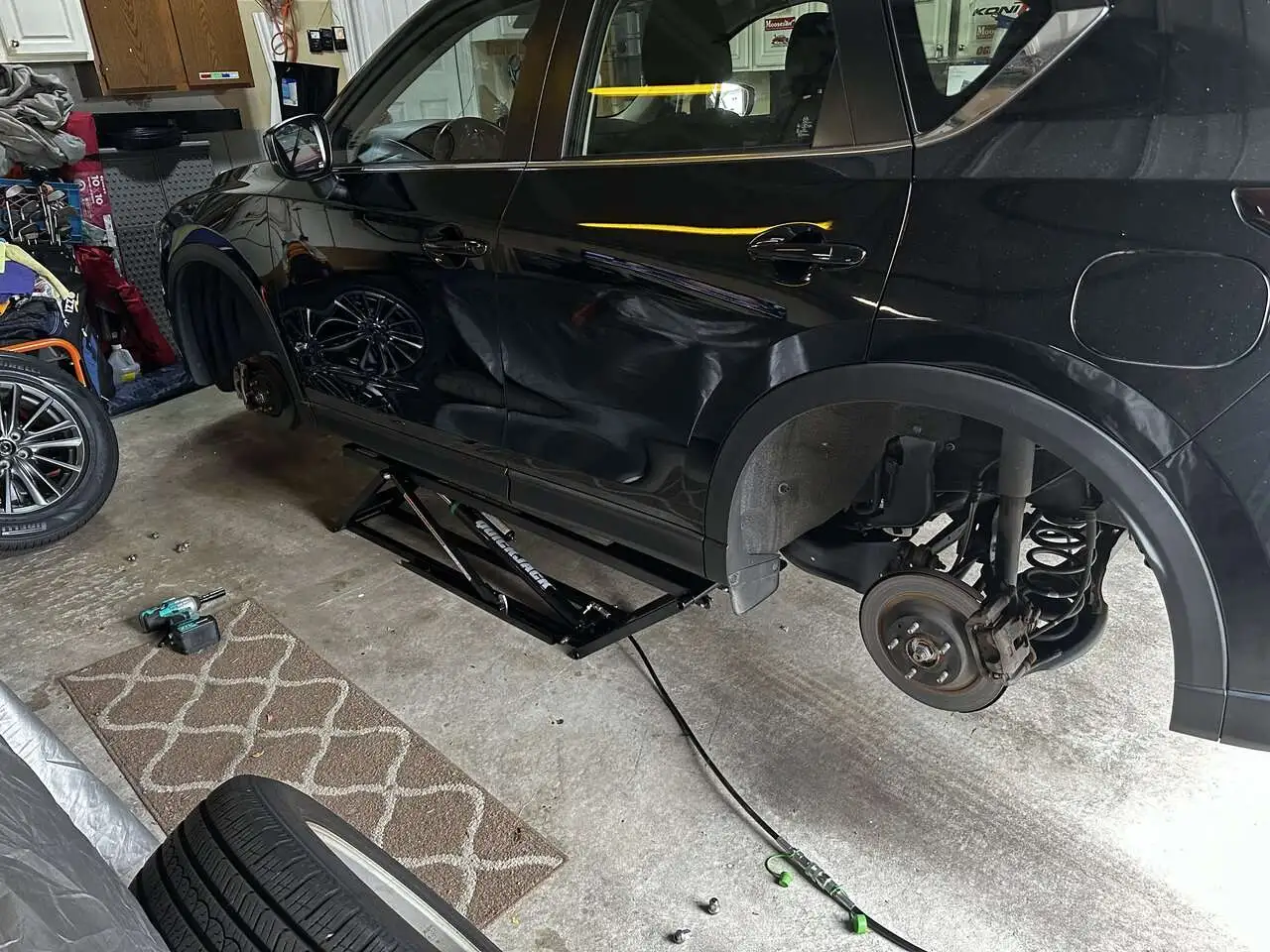

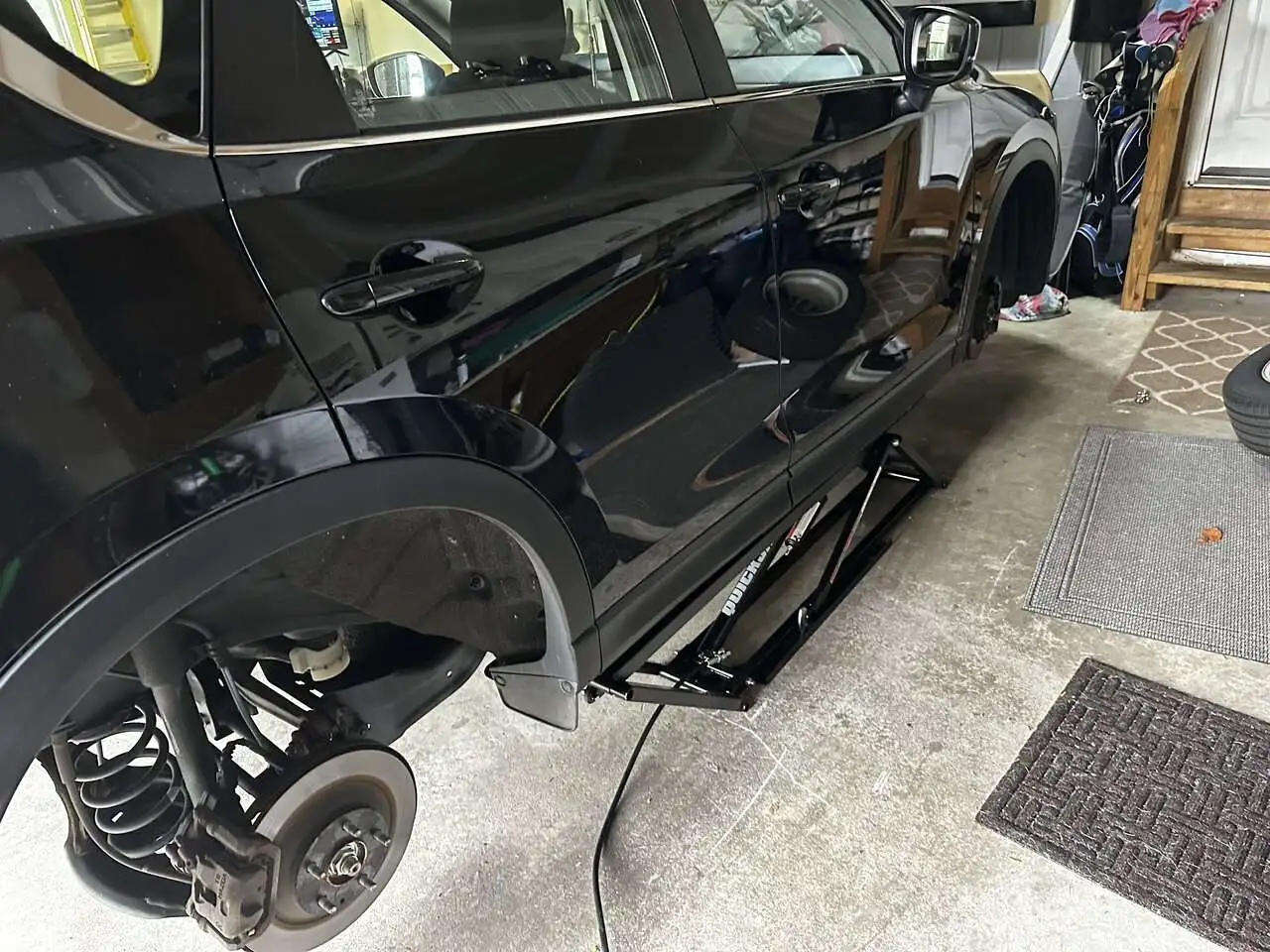

Tire rotation and oil change on my 2018 sport using my 5000tlx Quickjack! Love that thing.



[theblooms]

Well, it's more overkill, but I found some titanium torx license plate screws for the front.

Front plates are stupid and pointless.



[SoulRedCX]

Front plates are stupid and pointless.

Yes they are! Except I live in a two-plate state. Then again, there a plenty of driver's here that drive with no plate.



[paris1]

Yes they are! Except I live in a two-plate state. Then again, there a plenty of driver's here that drive with no plate.

Been doing it in Northern Calif for well over 50 years and no one's ever bothered me.



[Conrad 16.5]

Been doing it in Northern Calif for well over 50 years and no one's ever bothered me.

Same here except it's been 40 years in Northern Illinois.



[yrwei52]

Same here except it's been 40 years in Northern Illinois.

Not as that lucky. I got pulled over once for no front plate on my 1998 Honda CR-V in Houston 20+ years ago. I talked to the judge showing my plate and he waived the fine but I still had to pay $30 court fee.



[Conrad 16.5]

Not as that lucky. I got pulled over once for no front plate on my 1998 Honda CR-V in Houston 20+ years ago. I talked to the judge showing my plate and he waived the fine but I still had to pay $30 court fee.

I did get a written warning for no front plate after parking in a train station parking lot several years ago. I ignored it.

YMMV



[SoulRedCX]

I did get a written warning for no front plate after parking in a train station parking lot several years ago. I ignored it.

YMMV

I've seen many drivers just flout the law and run with expired temporary tags, or no license plate at all.



[ruthrj]

I finally got to wash Eve properly. Meguiars Clay bar treatment with Ultimate paste wax. Insane tire shine for good measure.



[rzc]

Just curious, anyone install this????

View attachment 323338

While on vacation, I purchased one locally. Can't wait to install it this weekend. I need to get the bumper off.

IMO the front turn signal light are not visible enough for the oncoming vehicle.

All done… taking out the bumper was not as bad as I thought.

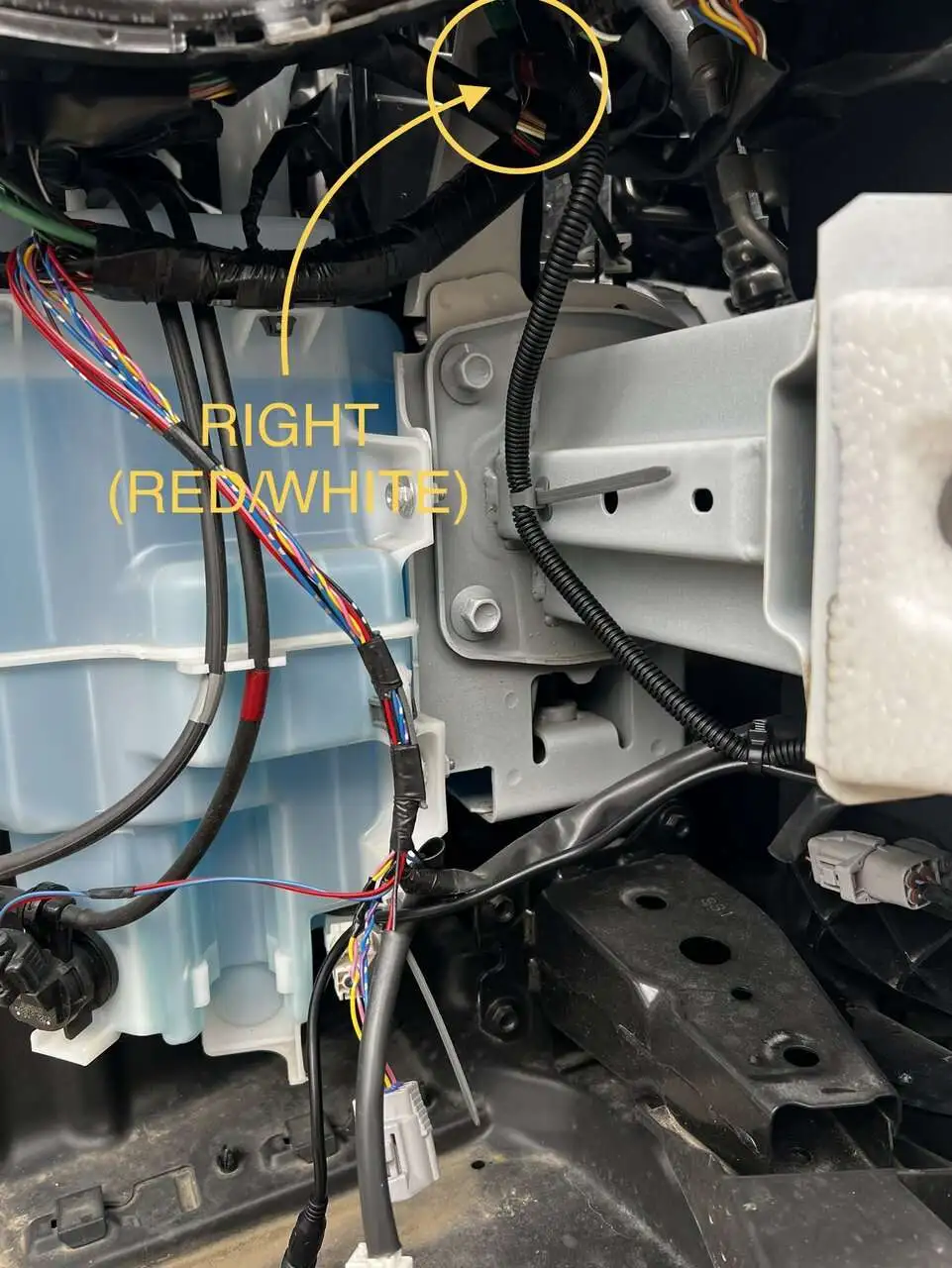

Here’s a couple of pics of the work for those of you planning to do this.

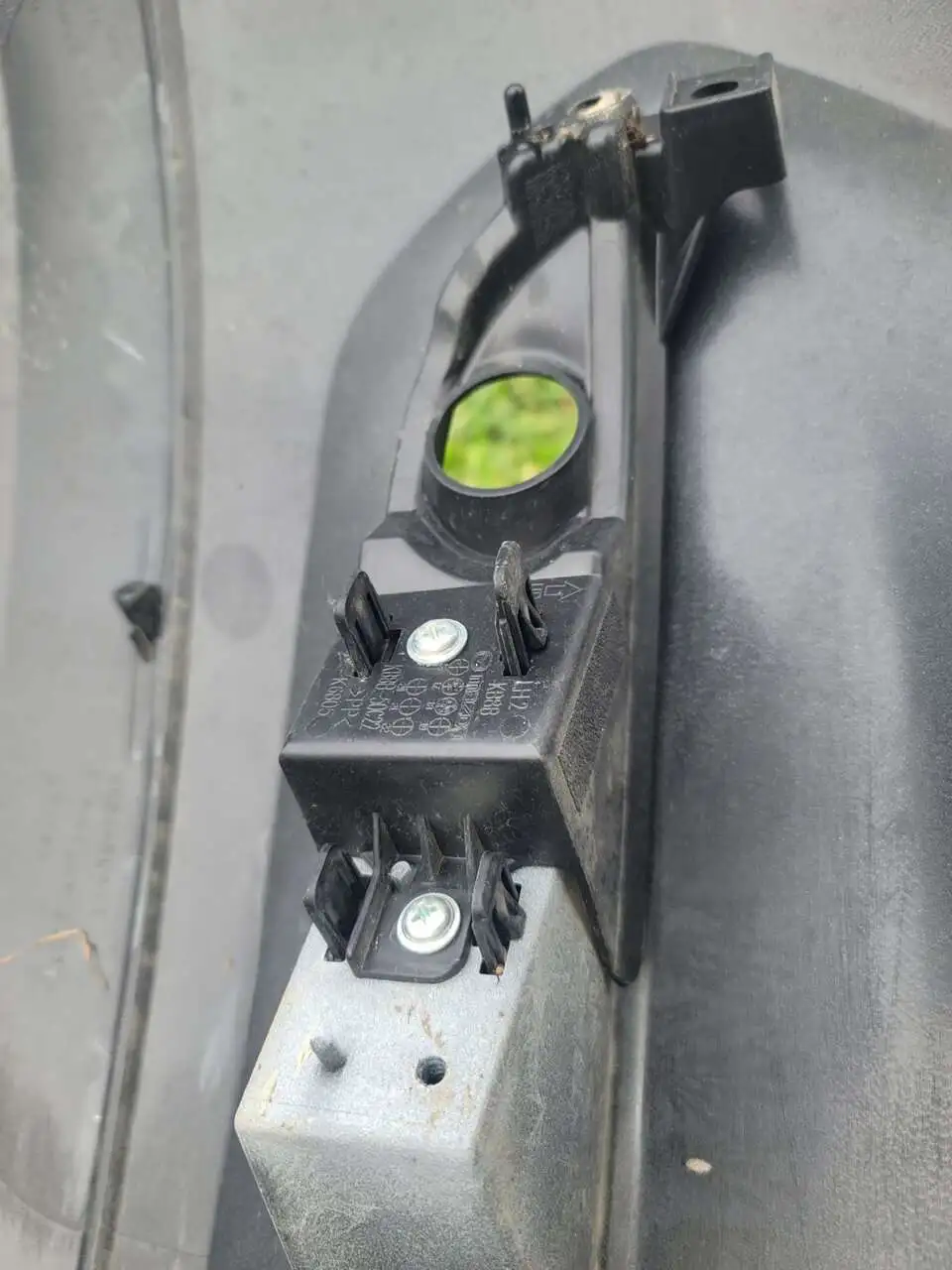

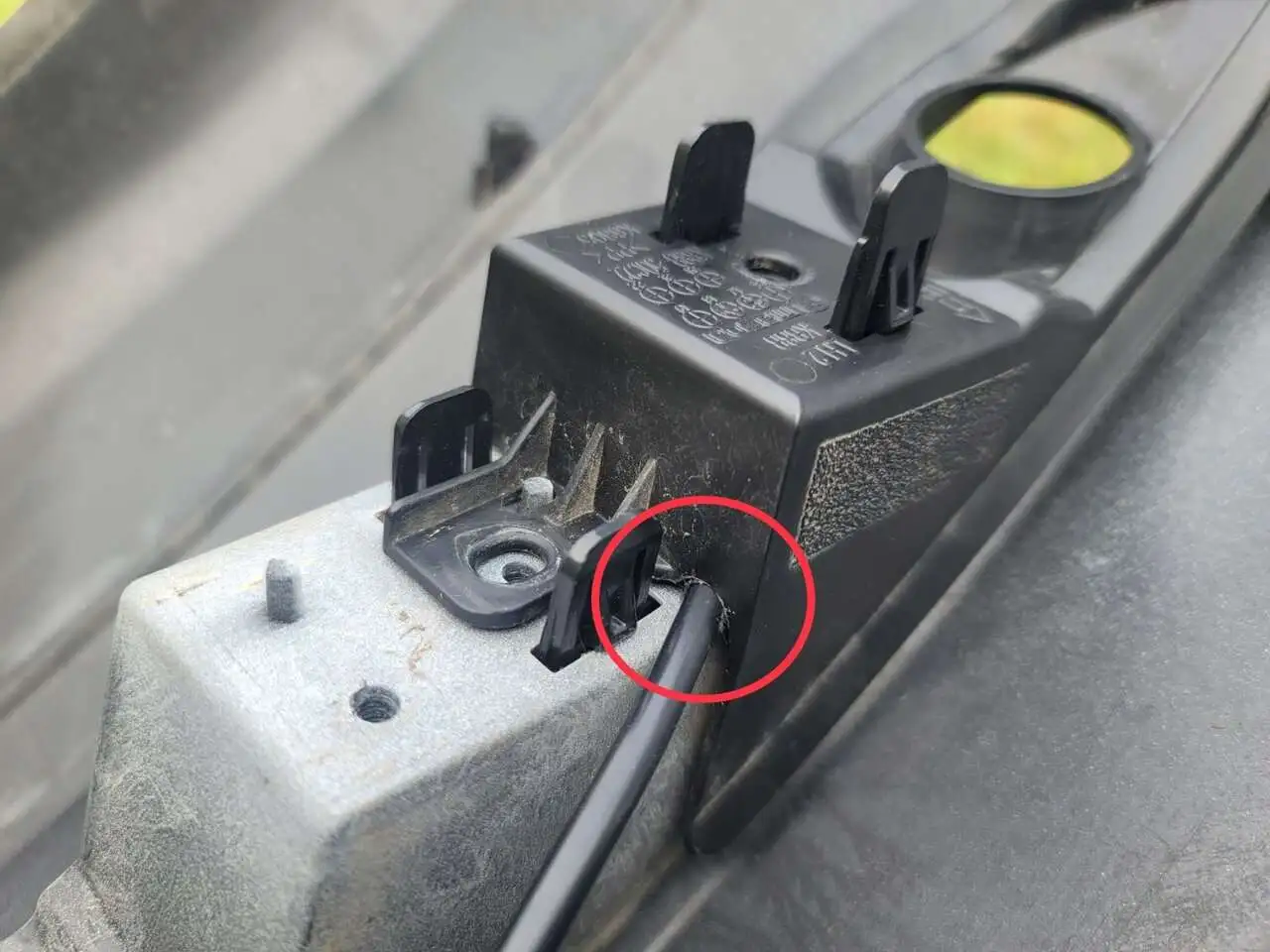

I notched a small opening here so the wire does not get pinched.

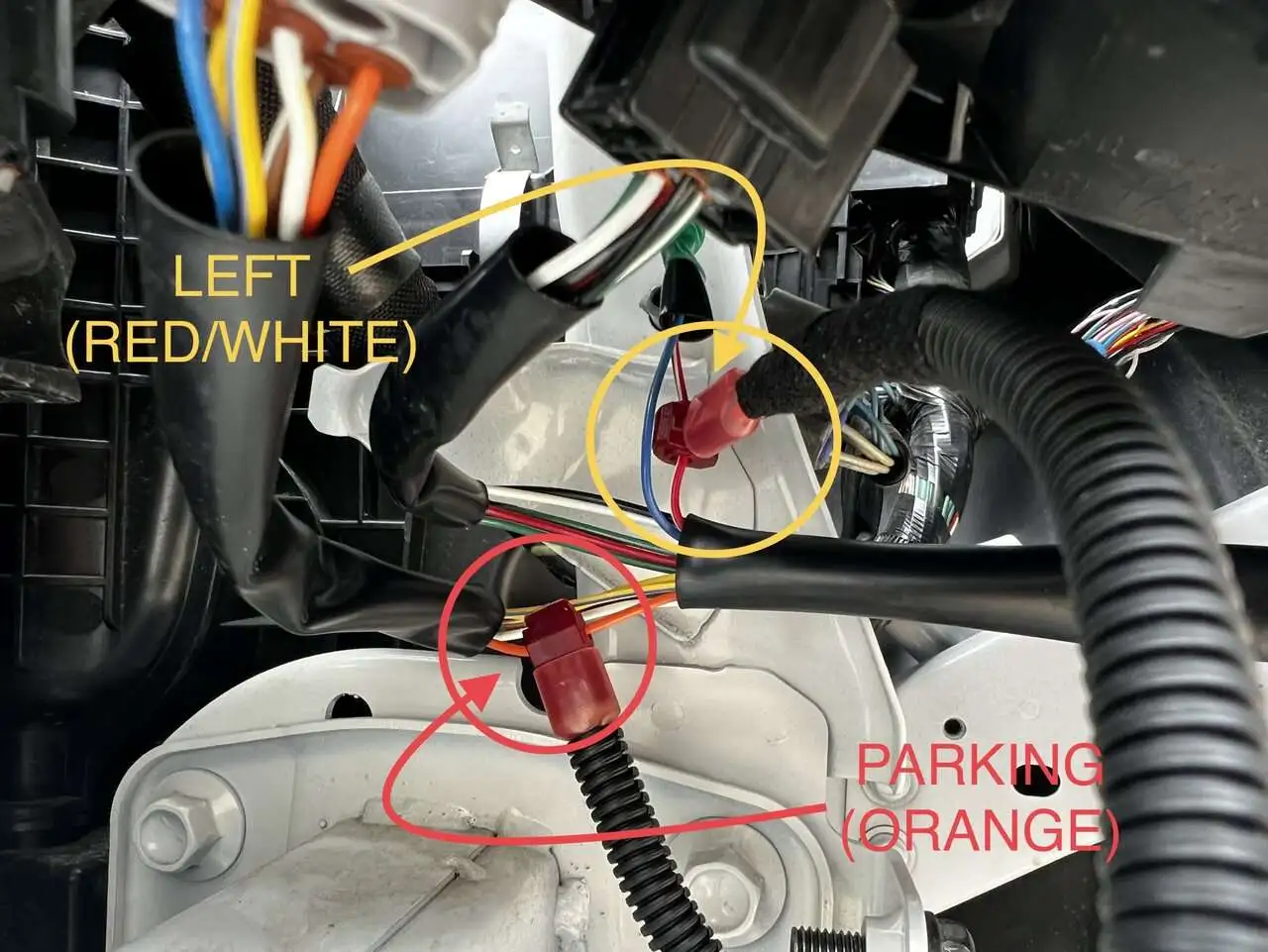

I typically use posi-taps but I didn’t have any laying around so instead is used these.

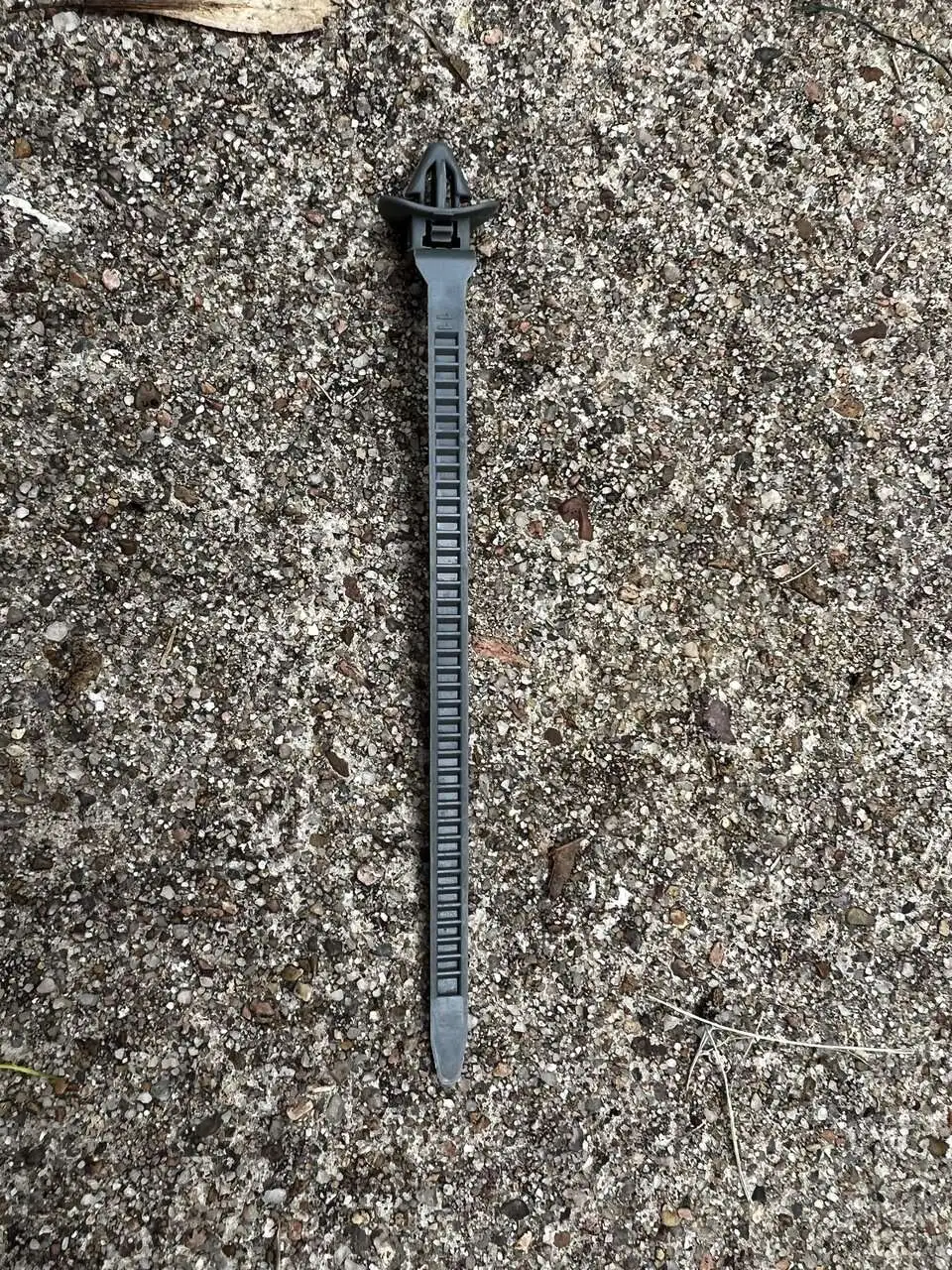

I have these laying around, got them from Amazon. It’s the best way of securing the wires.

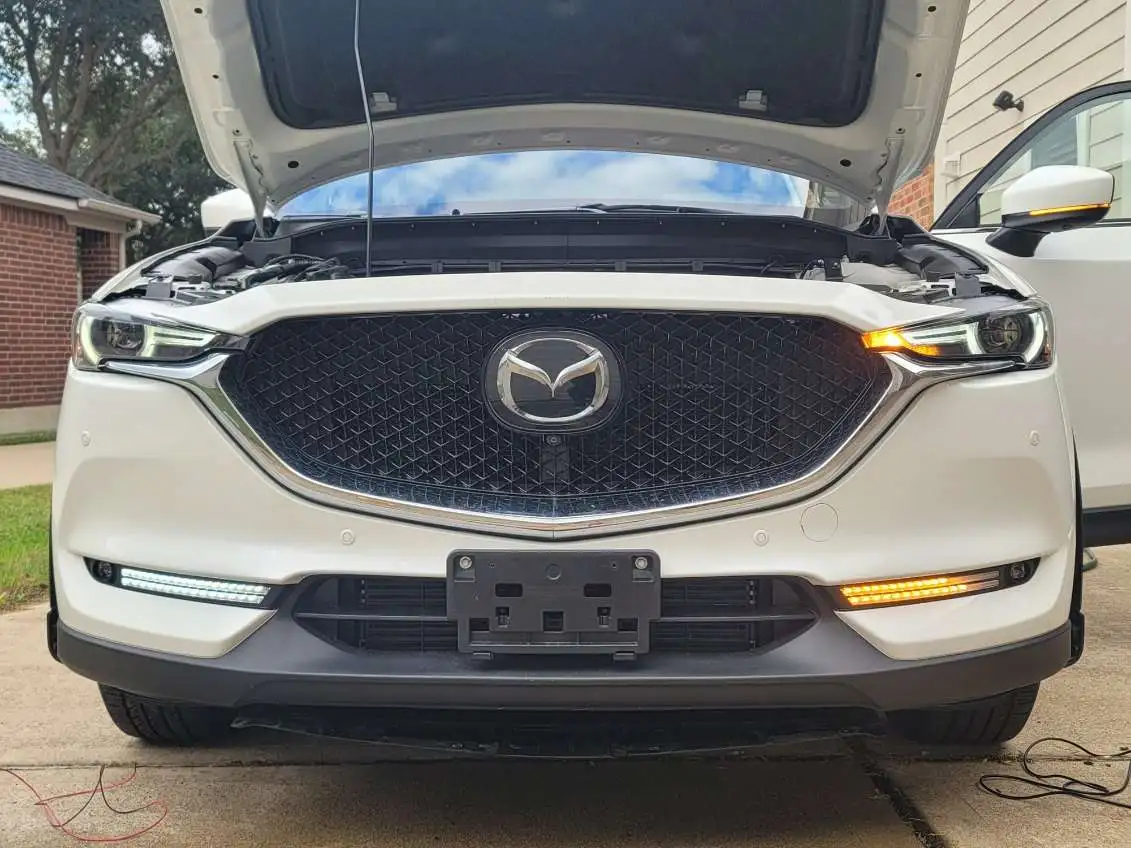

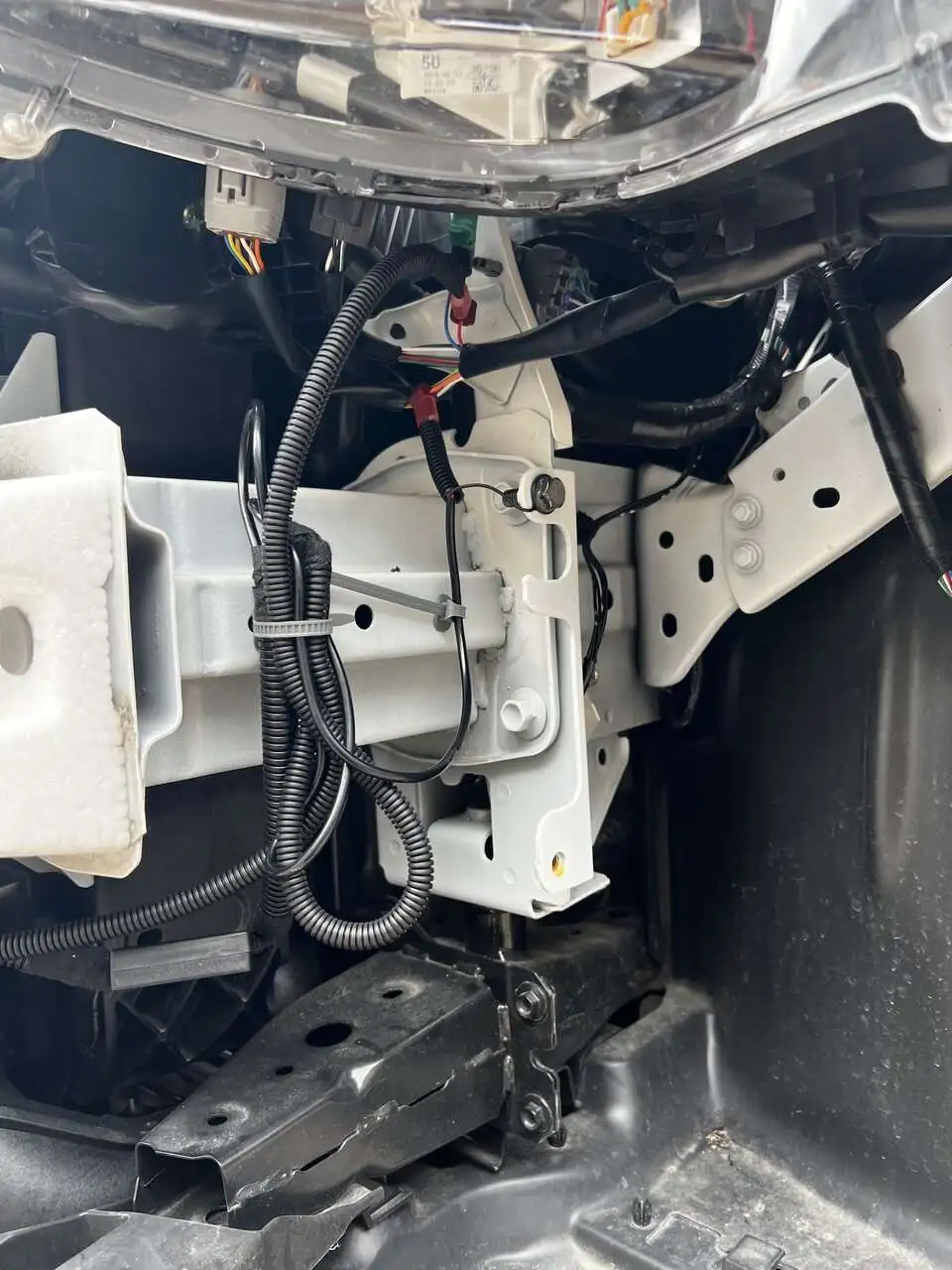

Here’s a pic of it installed

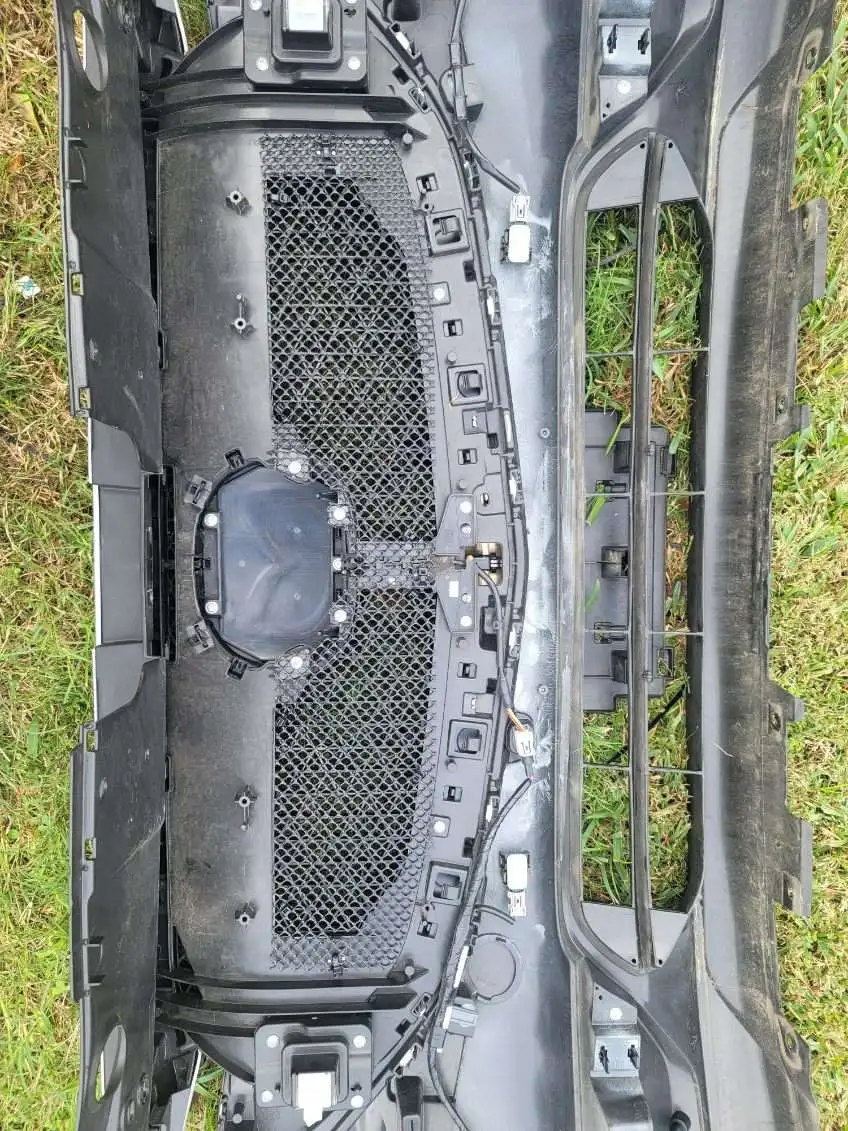

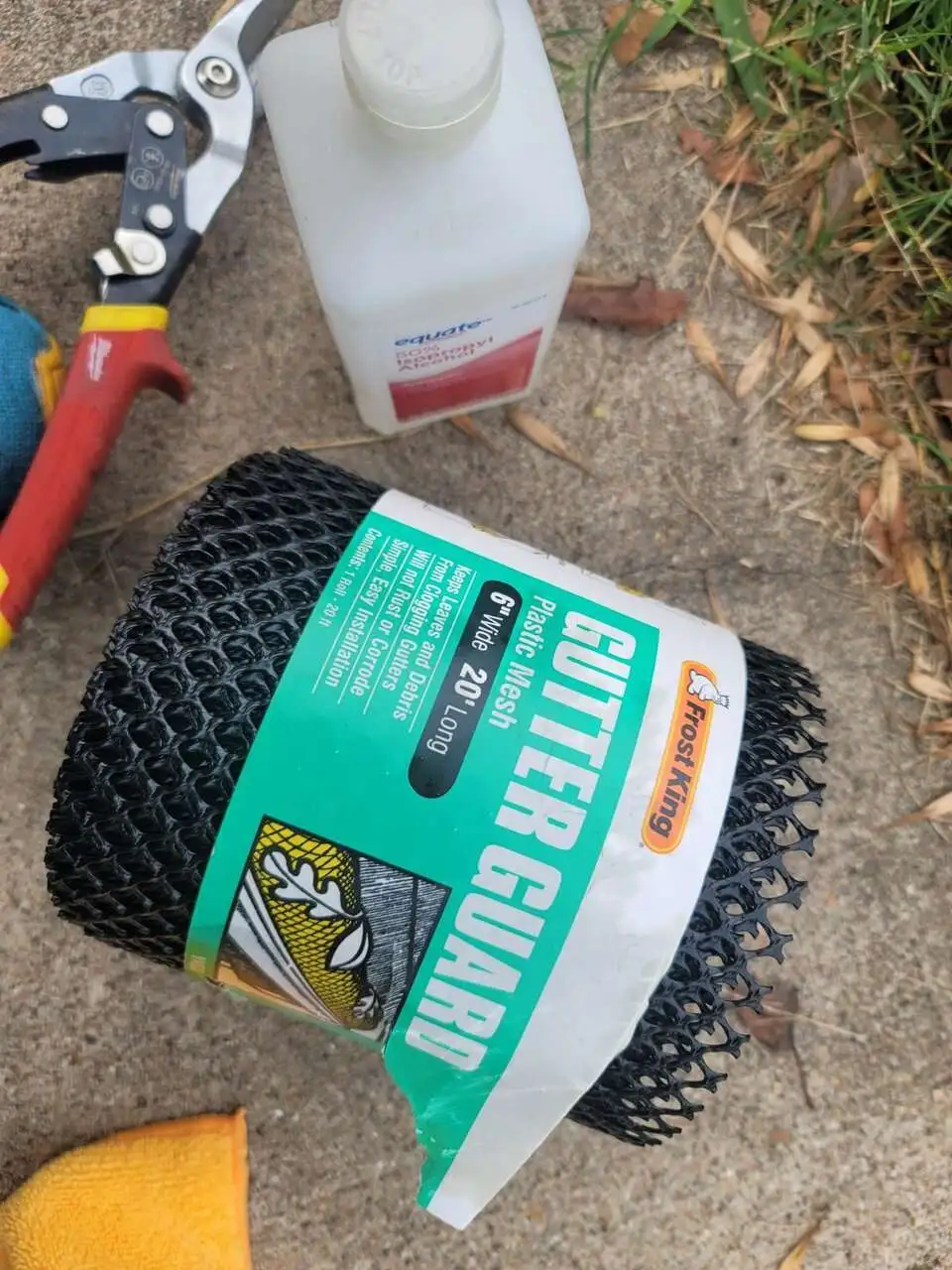

And since I had the bumper off, I installed this. It helps keep the bugs out in there.

Here’s a video of the startup (using the Linkr LTE)
