2018 non Bose. I know I can get in at the TPU but don’t trust myself with the small amount of wire available there. I know somewhere in this connector going to the rear door wiring is leads for the rear speaker. Does anyone have a pin-put diagram or able to tell me what colors here are for the rear speakers? Open to suggestions if you know an easier place to tap in.
Tapping into speaker wire B Pillar? 2018 CX-5 Non-Bose
- Thread starter floridaplur
- Start date

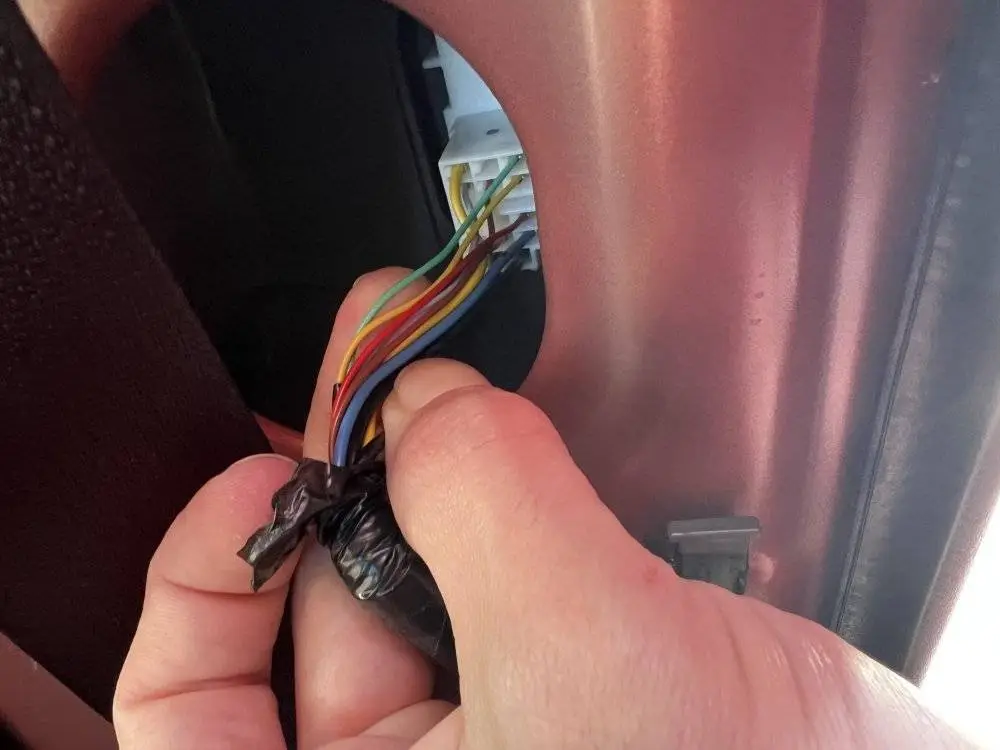

I believe it would be this green and yellow right here side by side. Can anyone confirm?
Upvote
0
I was successful. In that lower passenger B pillar, the Green is ground, yellow is positive.
Upvote
0
Can you tap into the left speakers from the passenger wires too?
Upvote
0

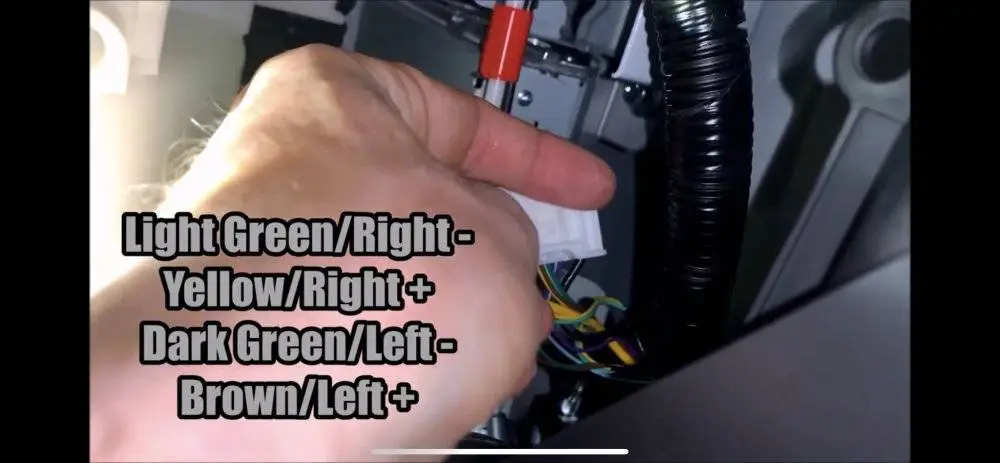

You can, but it needs to be done from behind the glove box.
I’ve moved long on since this post, and now run straight from a DSP to an iPad on my dash, bypassing the stock stereo completely.
