How To: Retrofit HID projectors into P5 headlights

[Tzar177]

You need to get an H4 bi-xenon relay harness.

http://www.retrosolutionsllc.com/servlet/the-245/HID-XENON-WIRING-HARNESS/Detail

I already have that. Bought it from theretrofitsource



[Tzar177]

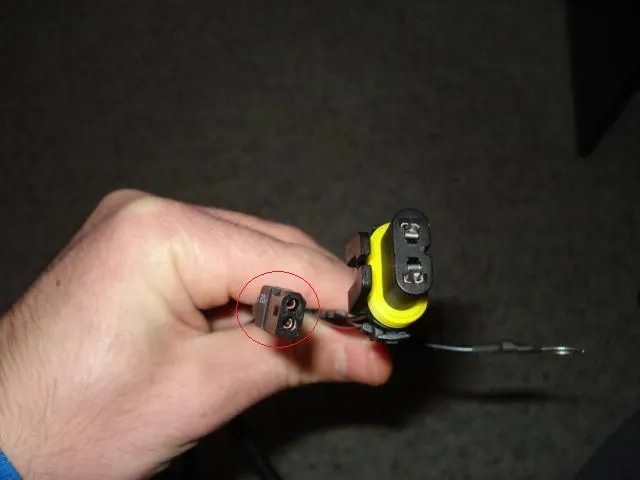

Here is what the end of my harness looks like. Would I connect the projector wires to the connector I circled in red?



[Matt V]

Oh, then yes. Just plug it into those and you should be solid.



[Tzar177]

I'll just have to find a way for it to fit as the projector wires are flat and won't fit into the holes in the connector since they are round



[Matt V]

You can splice some rounded pegs in place of the spade connectors, they are at Home Depot and such.



[MazdaP55]

Nice! And nice p5 dude... looks CLEAAAAAAAAAN!



[Matt V]

Bumpity bump.



[Tzar177]

The DDM ones are D2S base however they are cut slightly different than the standard OEM D2S bulb which makes it not fit into the FX-R bulb socket. The Morimotos are OEM replicas and one of the best aftermarket bulbs available.

Avoid Chinese bulbs like the DDM's at all costs.

I test fitted the DDM bulbs and they fit perfectly fine.... (shrug). Also, did you paint your headlight bezels? I seen in another thread you have chrome bezels



[SeR_Cyclops]

Some of those pictures are not his, he just used them for his how too.



[Matt V]

Yeah a few of those pictures aren't mine, I painted my bezels awhile back though, way before I did my retrofit.



[43975]

subbin...retrofit



[StealthWyvern]

The below "how to" has been added to the how to quick link list thanks to Zuku26 for the PM!
Protege - Retrofit HID projectors into P5 headlights



[Matt V]

Awesome, thanks for adding it!



[Tzar177]

heres my setup

on the shroud, does the fatter end go on top or bottom?



[Matt V]

I think with how the bezel sits you want the fatter end to go up on top so everything clears.



[mx-p5]

it's not a "How to" but still pretty dope, another set of P5 lights retro'd, but this one cost em. lol



[Matt V]

That is a nice retrofit no doubt, but I hate to see what he paid. I need to buy some Ebay headlights so I can swap those lenses over to mine and be completely clean.



[mx-p5]

quoting him

Custom TSX Projector Retrofit alone was 675$.
The CCFL rings were and additional 65$.
No it doesn't include that HID kit itself. That price is for the parts and labor.
I purchased my 55watt DS2 5000k HID Kit from lightwerks for 199$

So $939 plus shipping em (cost me $50 to ship my box of retro parts to chico in PR each way)



[Matt V]

Damn, pricey no doubt.



[MP3Night]

Awesome wright up! I'll being doing this really soon just trying not to get distracted from my turbo build lol
