Need some serious help with my mazda speed :(

[cl0zed]

Hello,

So I was doing my timing belt and borrowed a friends torque wrench which apparently didn't work since I heard no Clicks and the end result is I tore a bolt off in the waterpump when I was tightening it

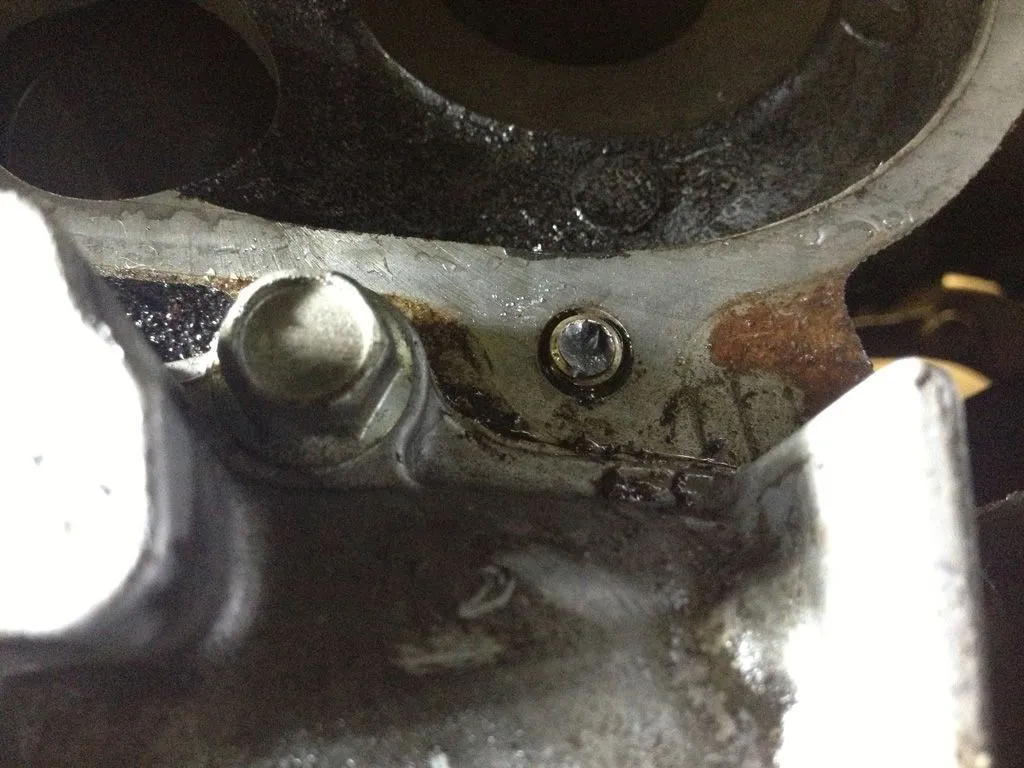

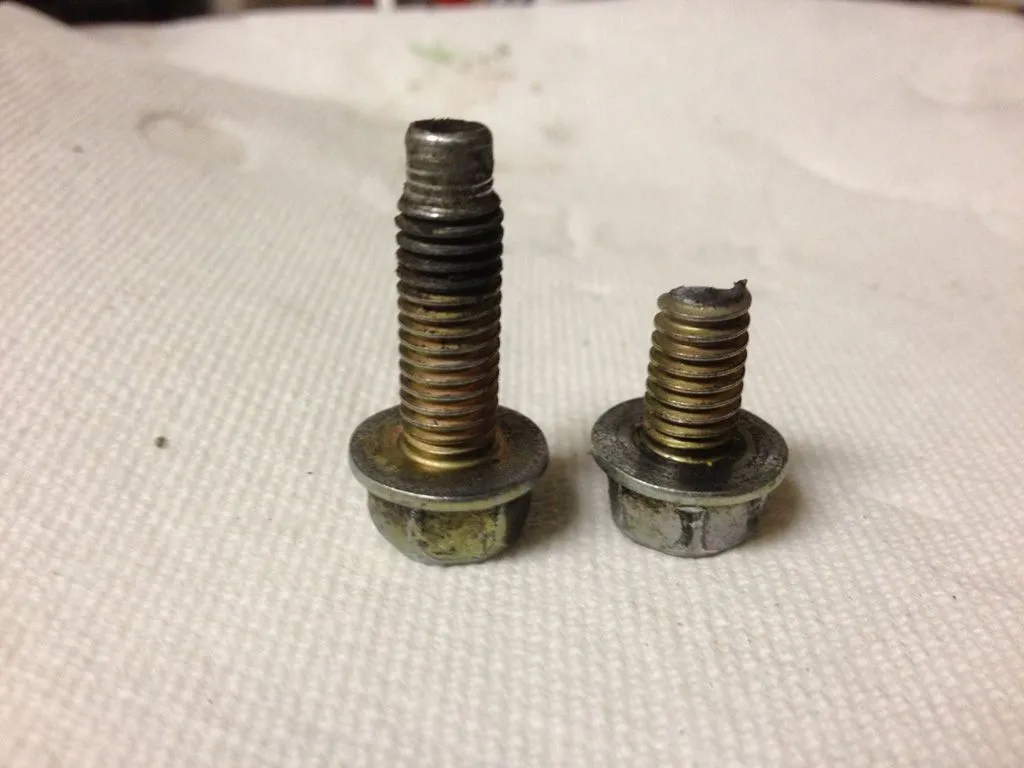

Any recommendations? I am ready to scrap this car I'm so pissed. Will I have to lift the engine out of the car to re-thread a new bolt? I took a few pics of the size of the bolt and where it broke off.

I need help!



[BRIAN_MP5T]

That is really REALLY unfortunate.

To get it out you might have to drill out the center with a very thin (New) drill bit and then once all the way through the bolt, drill a little bigger until you get to a 1/4"

Then use "EXTRACTABIT"

This s*** IS WORTH IT'S Weight.


Before you try to Extract, put the tube from WD-40 in the hold and blast the back of the threads. Let it sit and it should come out slick.



[BRIAN_MP5T]

PS. Don't Worry, it's not as bad as I have seen.

Whatever you do. DO NOT BREAK A DRILL IN THE BOLT. It is made of hardened steel and you will never drill a drill out.



[cl0zed]

Thanks I will give it a shot, i'm not sure if I can fit a drill in the spot...



[BRIAN_MP5T]

You might be able to if you support the engine and remove the entire passenger mount.



[-Jeff-Fire-]

or if you have a welder you can weld a nut on the broken bolt



[BRIAN_MP5T]

It's unlikely that he has access to a welder if he had to borrow a broken torque wrench...
