Mazdaspeed3 Turbo Upgrade making 330 WHP

[Superprotege]

Let me start by saying I hope this thread does not turn into a bashing of Hiboost and TBK Performance. I have read many threads on this forum and others that people have blasted both companies. I will be the first to tell you that things happened that should not have happened. I am not getting paid from either company, I am just sharing with the Mazda community, a new product that is available.

I have been told by both companies that changes have been made to prevent the same mistakes from re-occuring. I am hoping that anyone who decides to purchase this new product, will receive it in a timely and is satisfied with it.

The kit is basically a bigger GT35r (or the more streetable T3/TO4E is also available and making pretty the same power) mounted to Hiboost manifold and downpipe with all the accessories to bolt up to the stock exhaust. The kit makes 330 WHP on stock everything and pump gas. A software upgrade is in the works to increase HP. The test car will be soon fitted with a front mount intercooler to see how much HP can be gained.

I am not a mechanic or an expert. Again thank you for your interest.

Stock dyno run
http://www.youtube.com/watch?v=2rqCfFVrhSw

330 WHP run
http://www.youtube.com/watch?v=k-GlwXlBbsE



[Superprotege]

Update

I just got more detailed info making.

The kit is making 330 WHP at 12.5 psi

The kit includes, a big turbo, downpipe inlet & outlet pipe, oil lines inlet & outlet, hiflow turbo manifold, Tial 38mm wategate and all the other necessary accessories to bolt up to stock hardware.

The Front mount Intercooler Kit is also ready. It comes with the intercooler and the piping to relocate it to the front of the car. The core is made in the USA with polished endtanks, no the cheap Chinesse knoeck off.

Stay tuned!! Photos to come



[lestat13]

yummy.... "on stock everything"?!



[Superprotege]

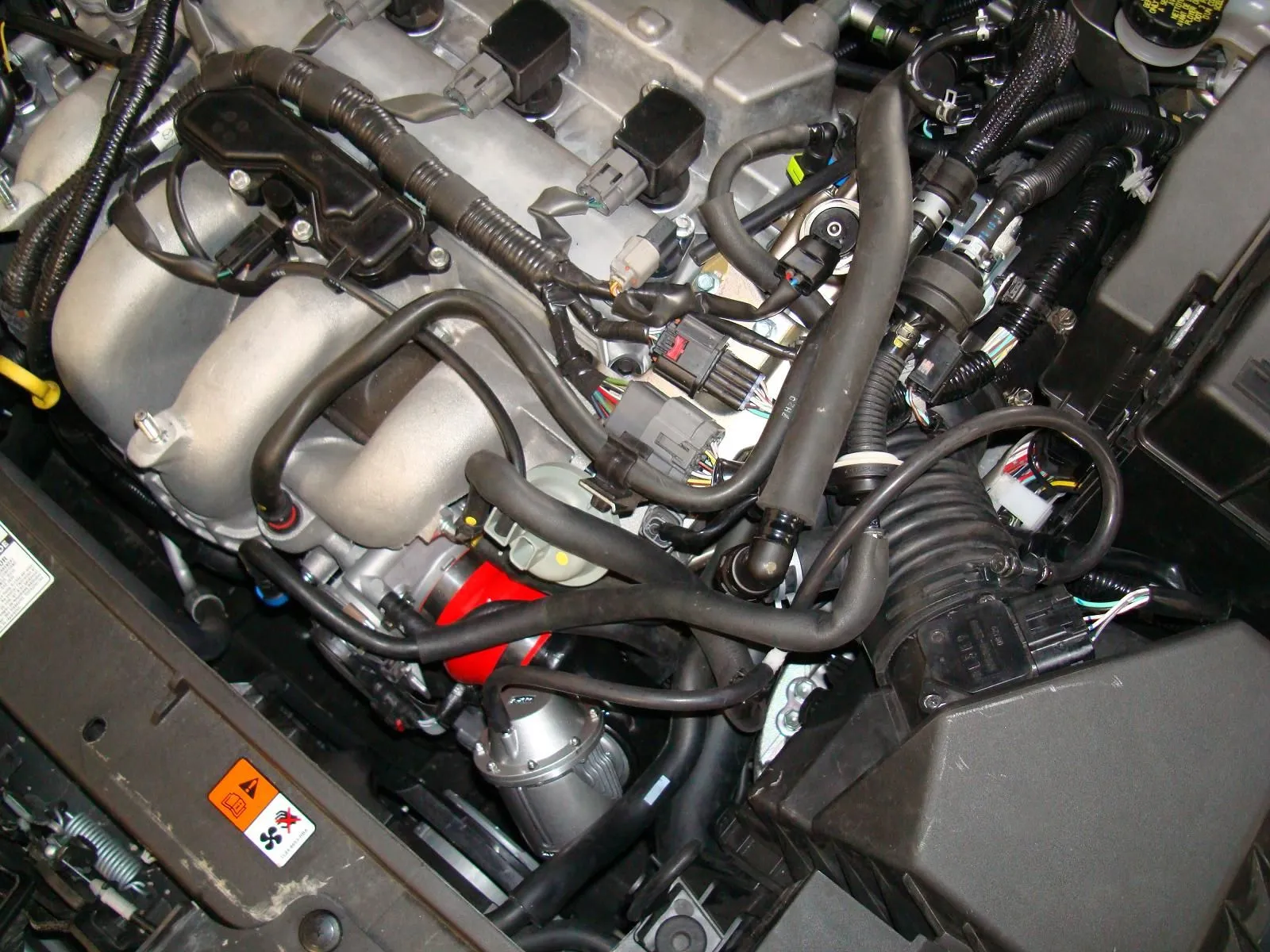

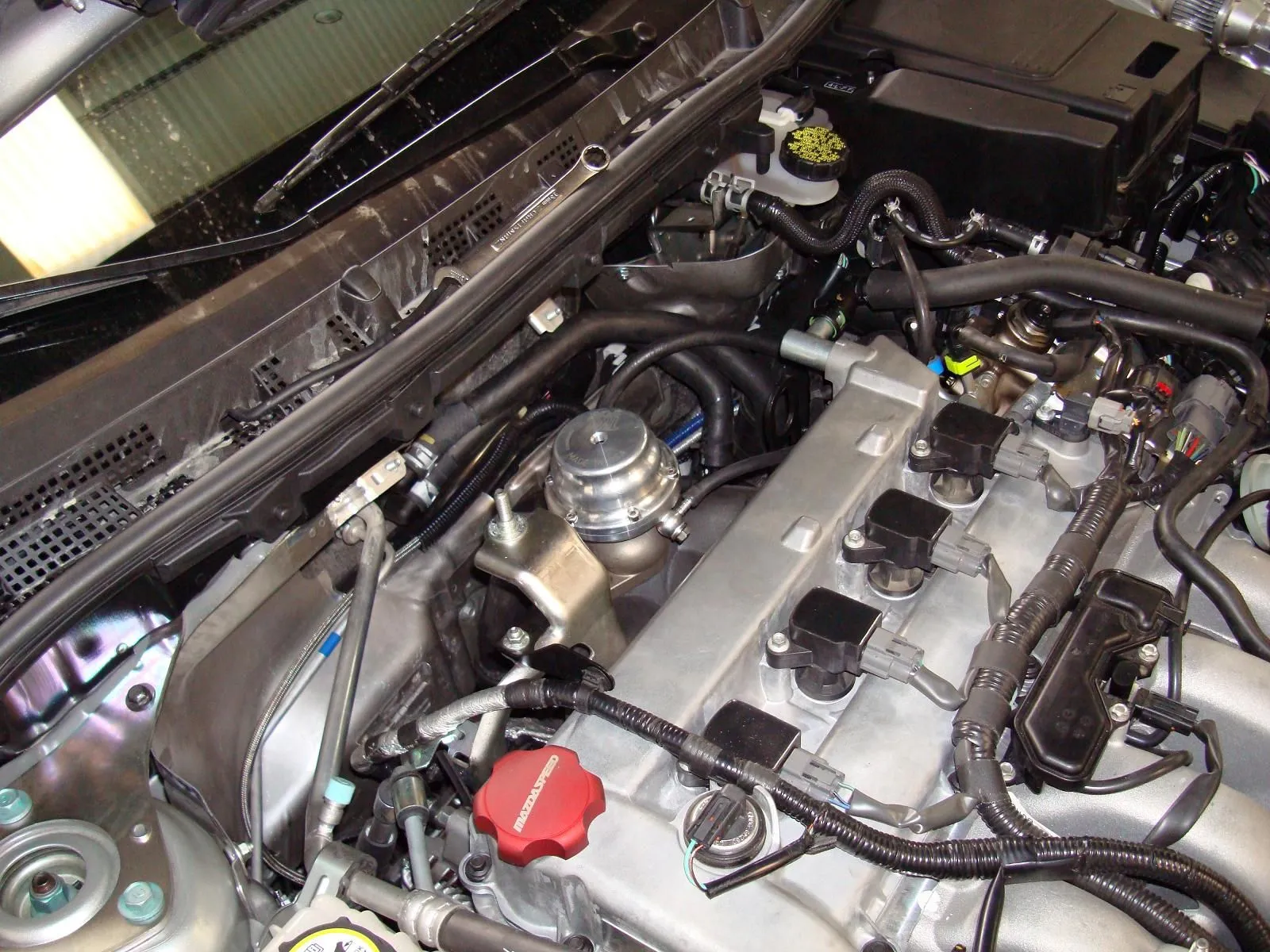

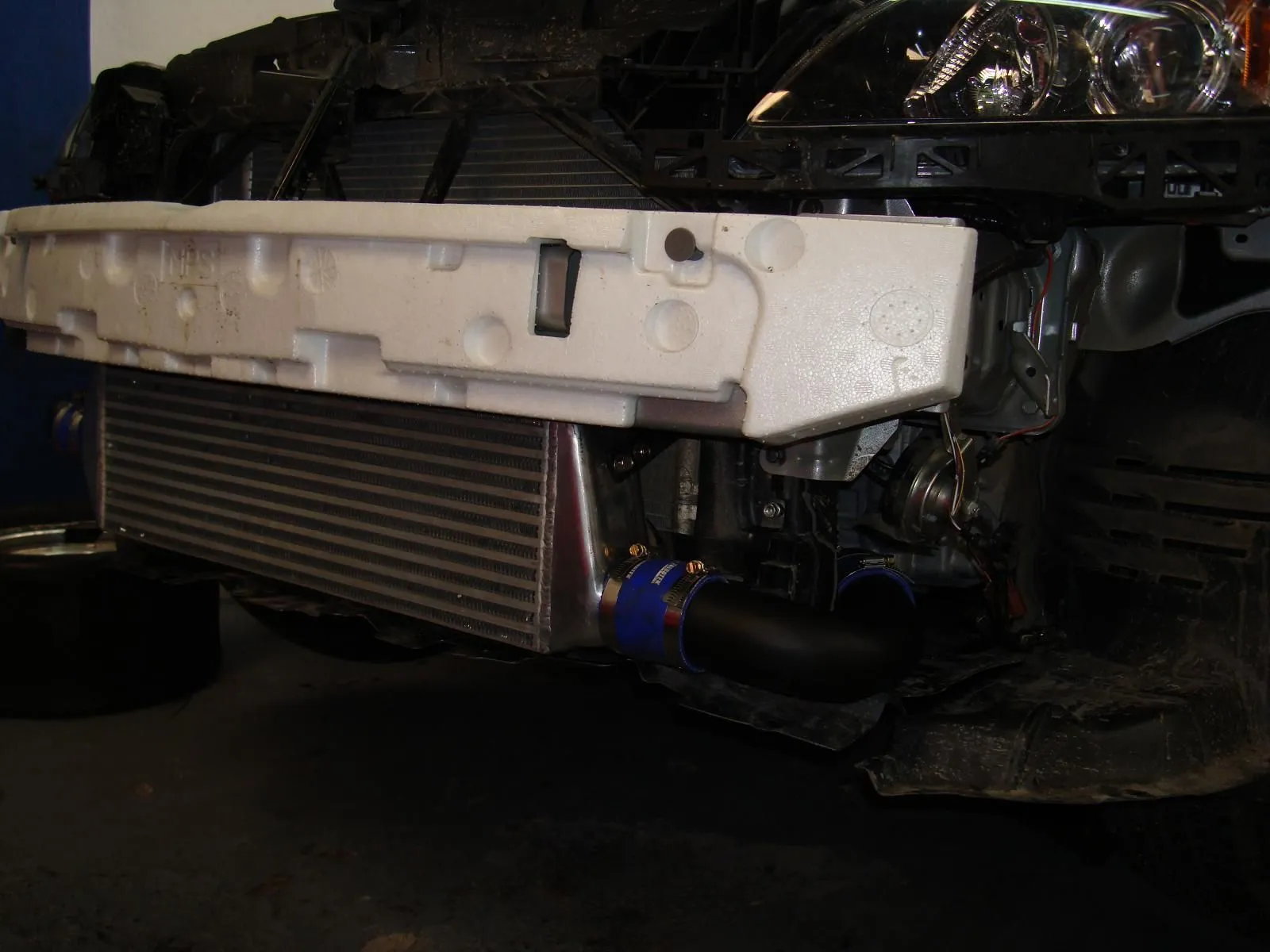

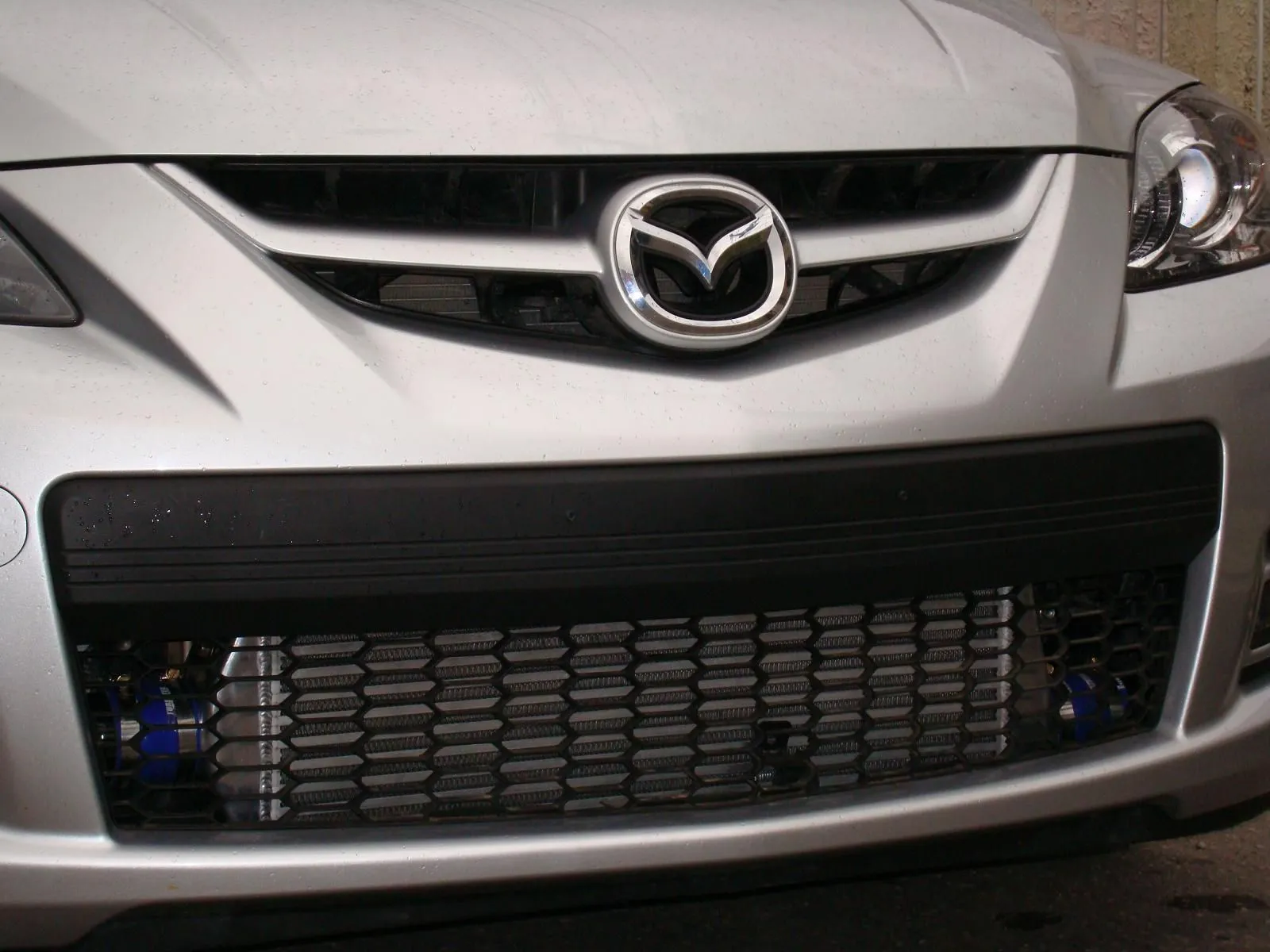

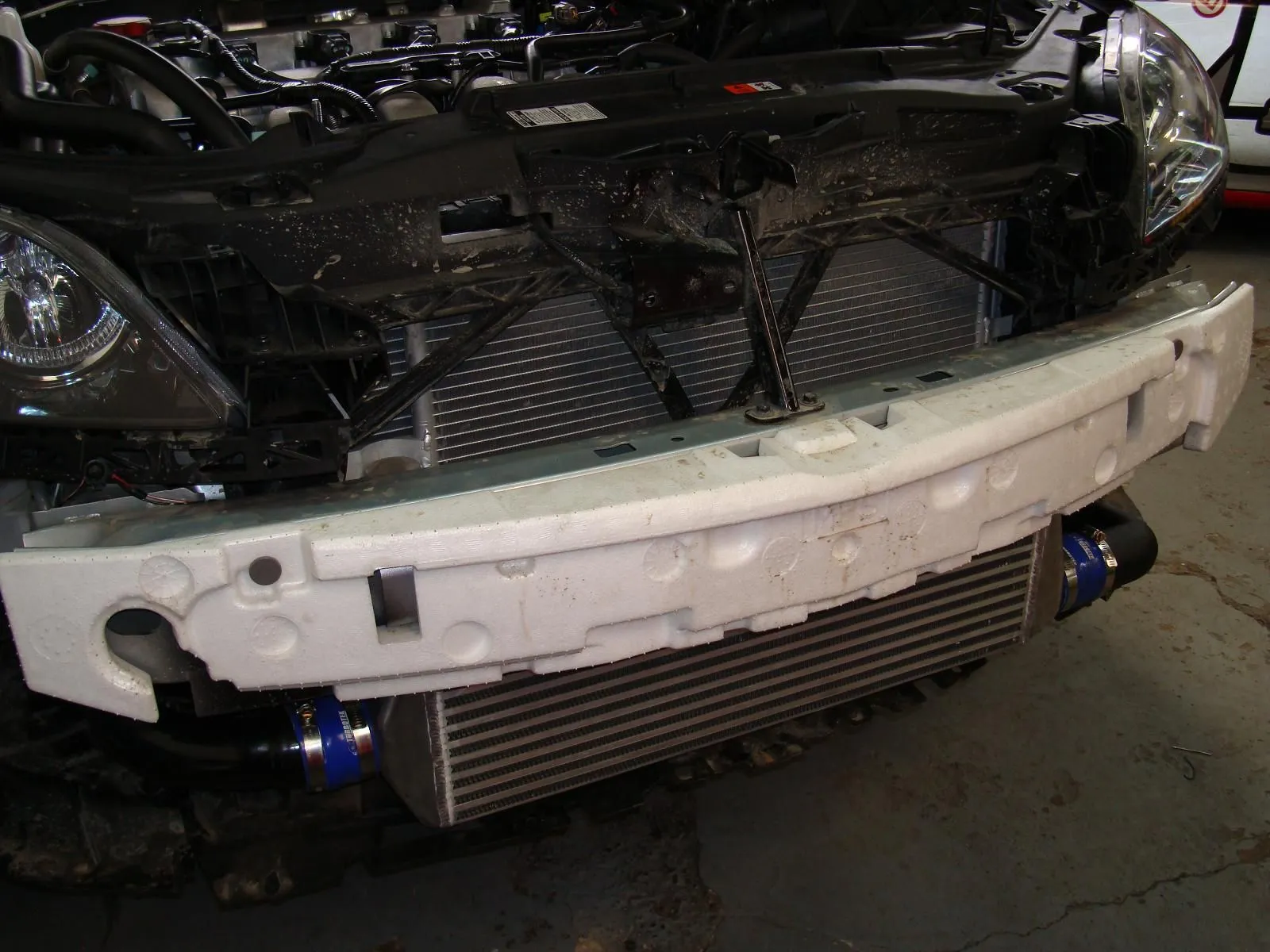

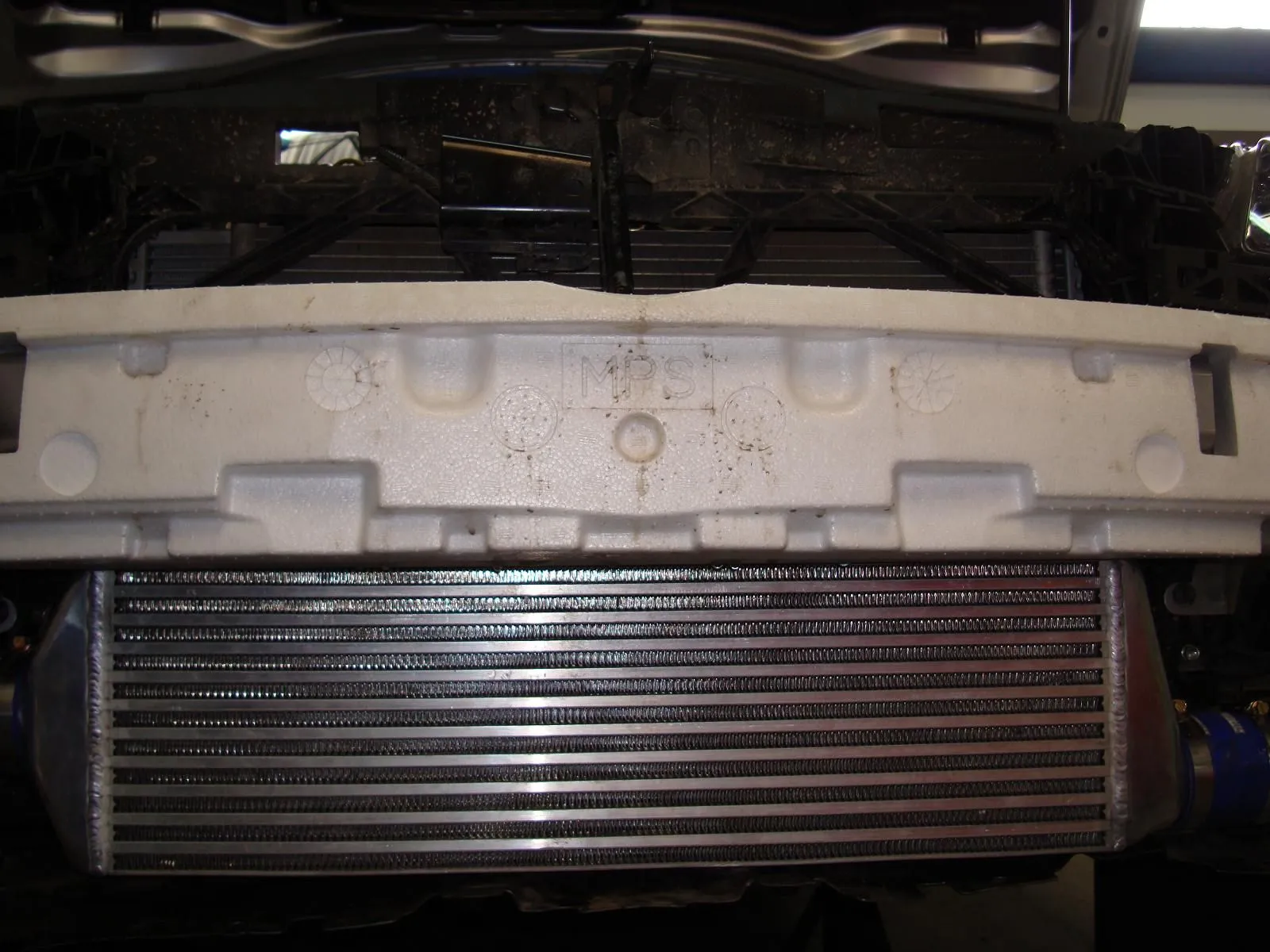

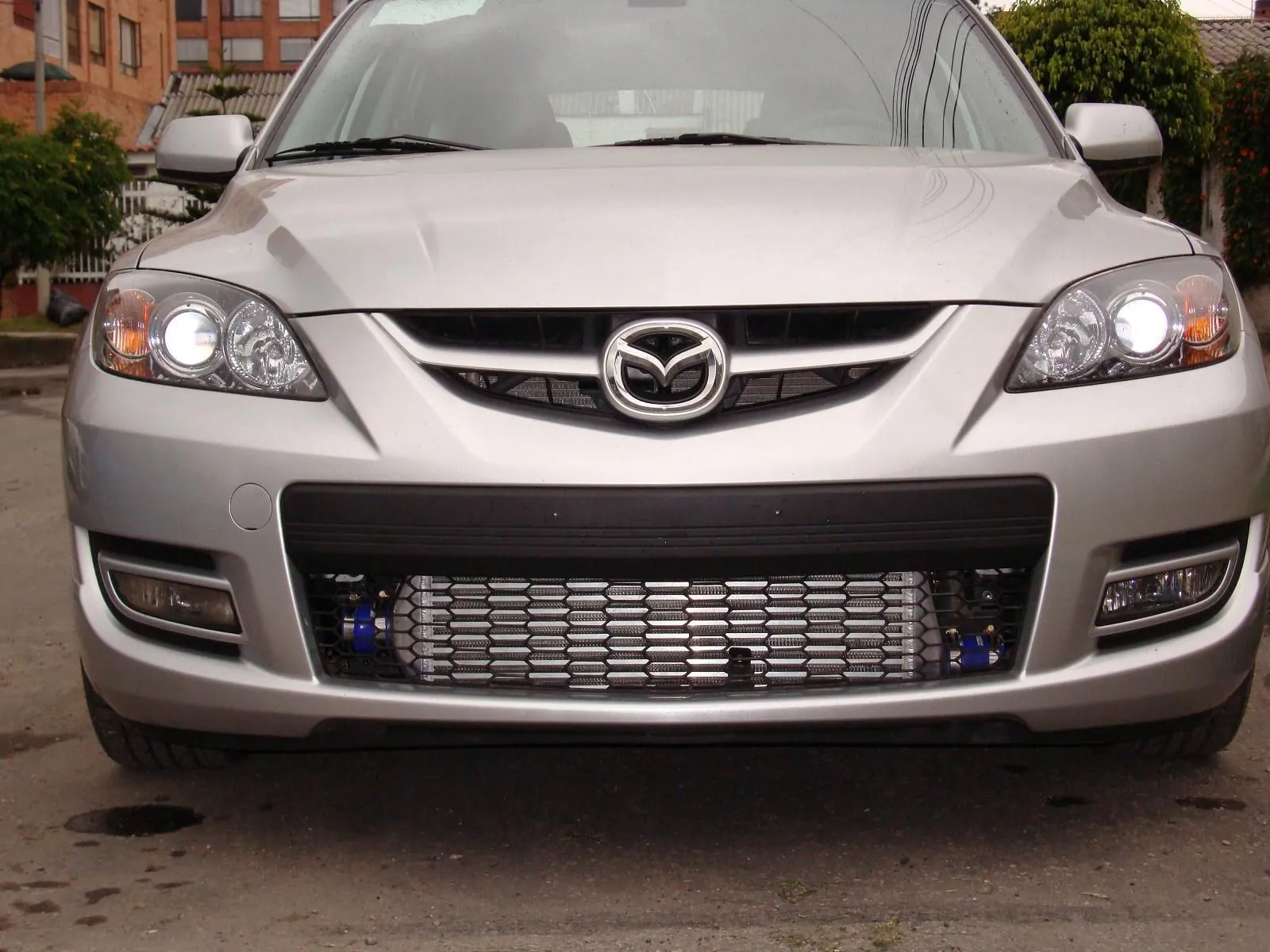

Engine bay + front mount photos

Sorry for the late response, I have been very busy at work and have not had time to get back on the forum since I created this thread.

Thank you guys for your courteousness and kind words.

Please see the photos below.



[Superprotege]

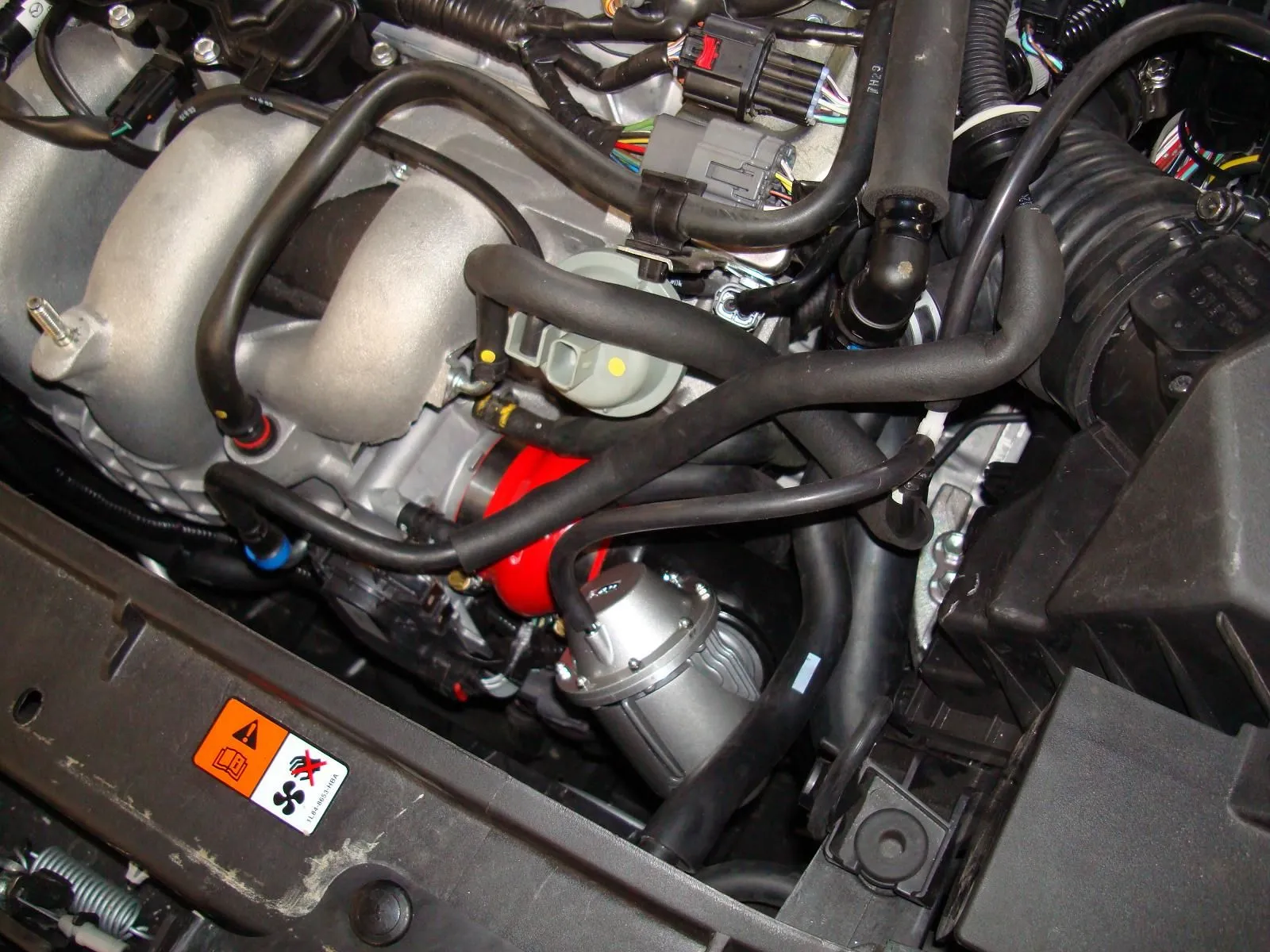

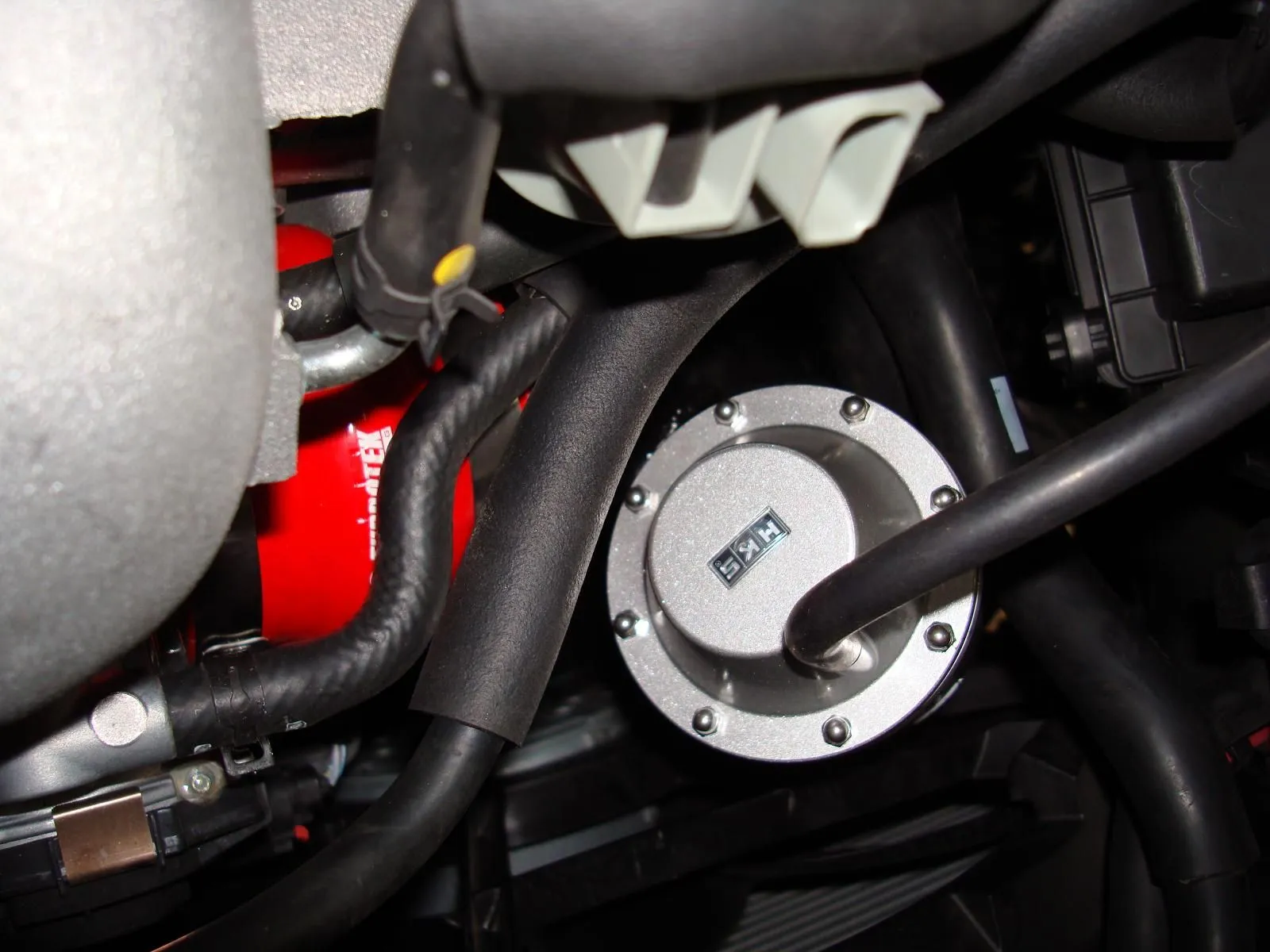

More pics

More pics



[Superprotege]

Answers to questions

Hi everyone, again sorry for the late response. Here the answers to some of the questions that have been asked so far.

(1) Is the flange on the wastegate universal or specific tial- The flange is for a 38mm wastegate

(2) If you already have a dp and fmic, can you get the missing parts- Yes, prices for individual parts to the kit will be sold once the kits are ready

(3) Can the mazdaspeed3 handle over 330 whp especially if you have other performance parts and decide to purchase this kit- -Yes, the GT35R and the T3/To4E makes power very linearly throughout the powerband which prevents the engine from blowing even with the car untuned. The car comes from the factory very rich and even with this kit the car is still running rich. The stock turbo does not make power linearly and at high rpm, it is only making at times 180-200 whp and thus the boom!

(4) Is a base map available for a 06 2.3L with a 3 bar map sensor, T3/T4 turbo on 440cc injectors- No Manuel has a map for the above but with 440cc and 550cc injectors using the Haltech unit ofcourse.

(5) Where is the test car currently- It is in Columbia. Juan is going back to dyno test the kit with the front intercooler and get us some new dyno video soon.

(6) Where did you relocate the p/s cooler or does it block it- No, the p/s is still in the stock location

(7) Where is the boost pressure being measured from- intake manifold.

(8) What is the the intercooler size- core is 24x7x3

(9) How much torque is the car putting out- Juan did not remember when I asked him this question but I will get a response soon.



[Superprotege]

Boost turned up on pump gas with stock internals

Juan went back to the dyno, turned up the boost on pump gas and with the aid of a Cobb Accessport made 477 whp.

465 WHP @ 19 psi
http://www.youtube.com/watch?v=Tnukd_n7aec
http://www.youtube.com/watch?v=UYGT15esBds

477 WHP @ 21 psi
http://www.youtube.com/watch?v=MkCHsX-pPhA



[16902]

Juan went back to the dyno, turned up the boost on pump gas and with the aid of a Cobb Accessport made 477 whp.

465 WHP @ 19 psi
http://www.youtube.com/watch?v=Tnukd_n7aec
http://www.youtube.com/watch?v=UYGT15esBds

477 WHP @ 21 psi
http://www.youtube.com/watch?v=MkCHsX-pPhA

(bang) Why am I spending money on this car with toothpick internals?



[bgibb68]

Juan went back to the dyno, turned up the boost on pump gas and with the aid of a Cobb Accessport made 477 whp.

465 WHP @ 19 psi
http://www.youtube.com/watch?v=Tnukd_n7aec
http://www.youtube.com/watch?v=UYGT15esBds

477 WHP @ 21 psi
http://www.youtube.com/watch?v=MkCHsX-pPhA

(humpleg)



[MAZDA_SPEED]

Juan went back to the dyno, turned up the boost on pump gas and with the aid of a Cobb Accessport made 477 whp.

465 WHP @ 19 psi
http://www.youtube.com/watch?v=Tnukd_n7aec
http://www.youtube.com/watch?v=UYGT15esBds

477 WHP @ 21 psi
http://www.youtube.com/watch?v=MkCHsX-pPhA

is this on stock everything?(wow)



[16902]

is this on stock everything?(wow)

Probably, the MS3 is pretty stout internally.



[Superprotege]

Status of the kit

Due to te current economic situation, the production of the kit has been delayed. We were trying to get the kit installed on a local speed3 but we were not sucessful.

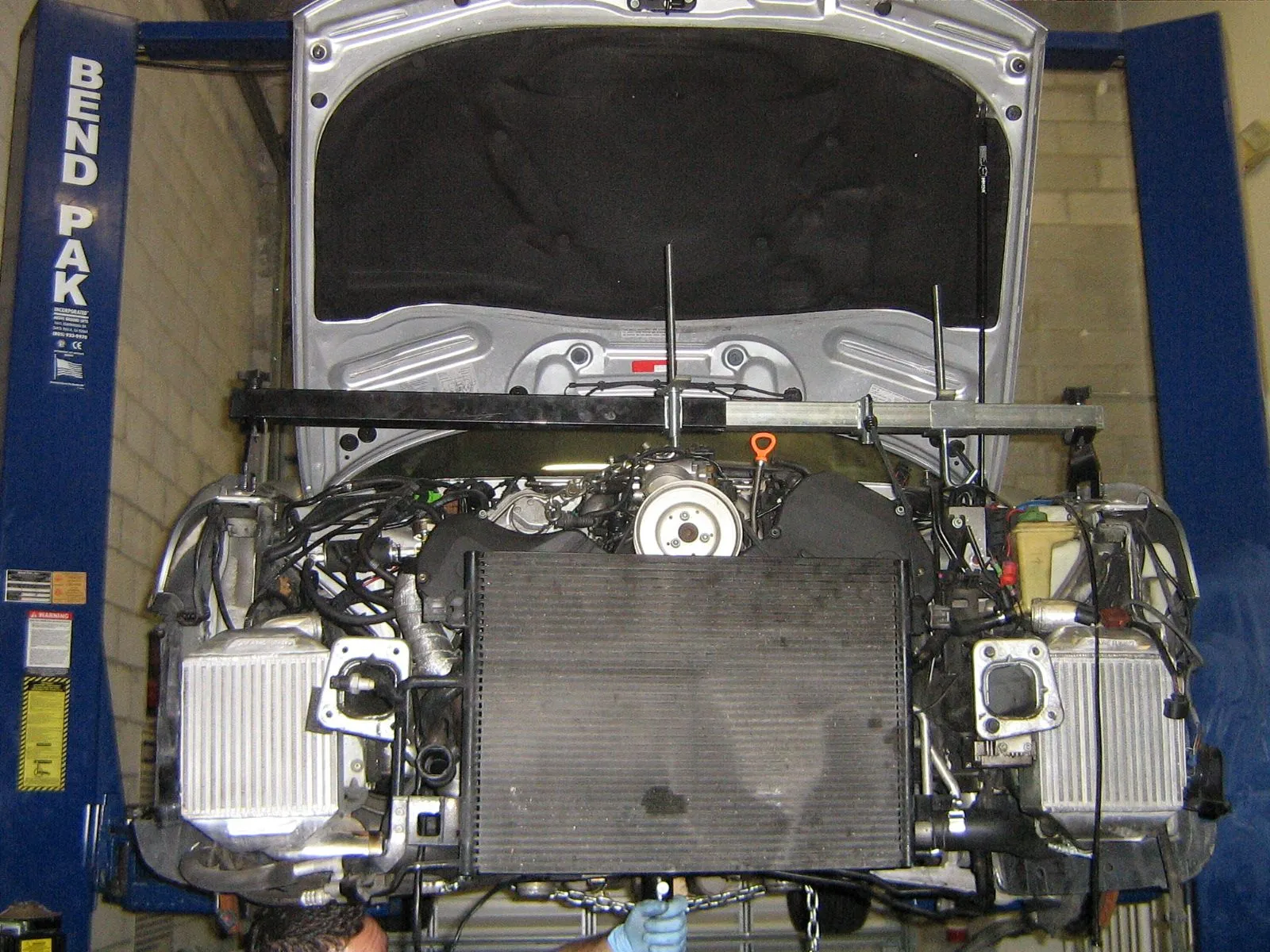

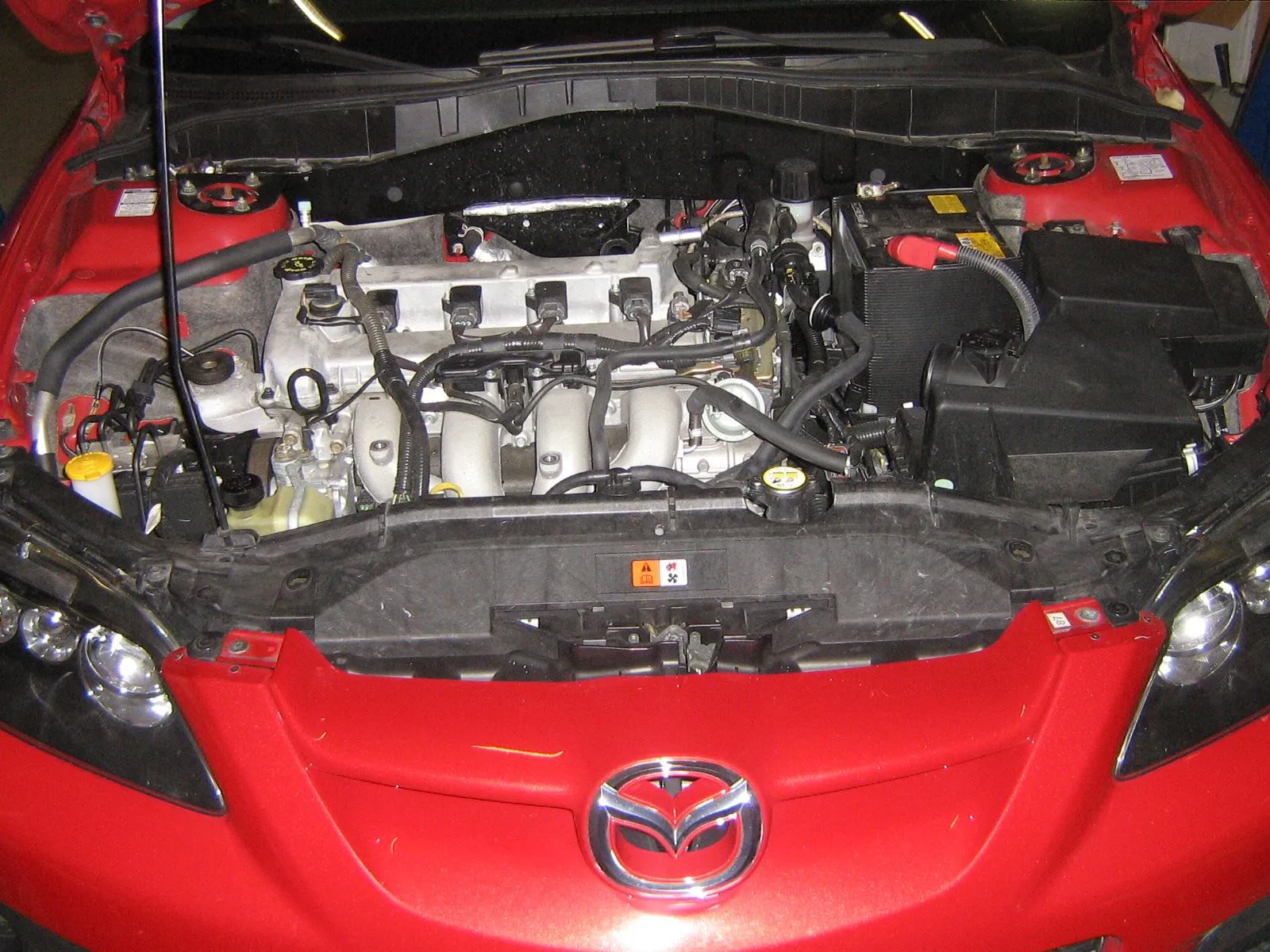

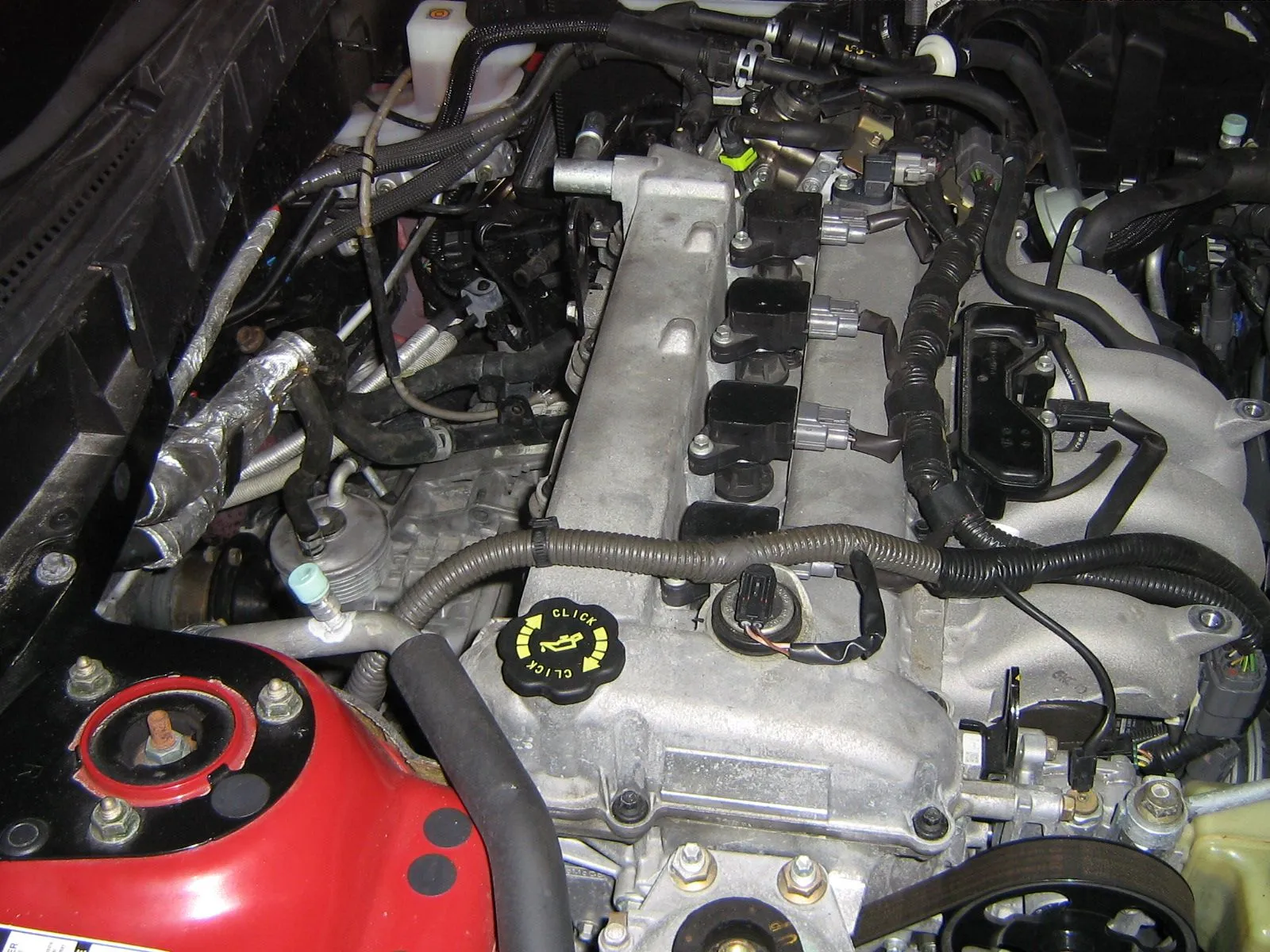

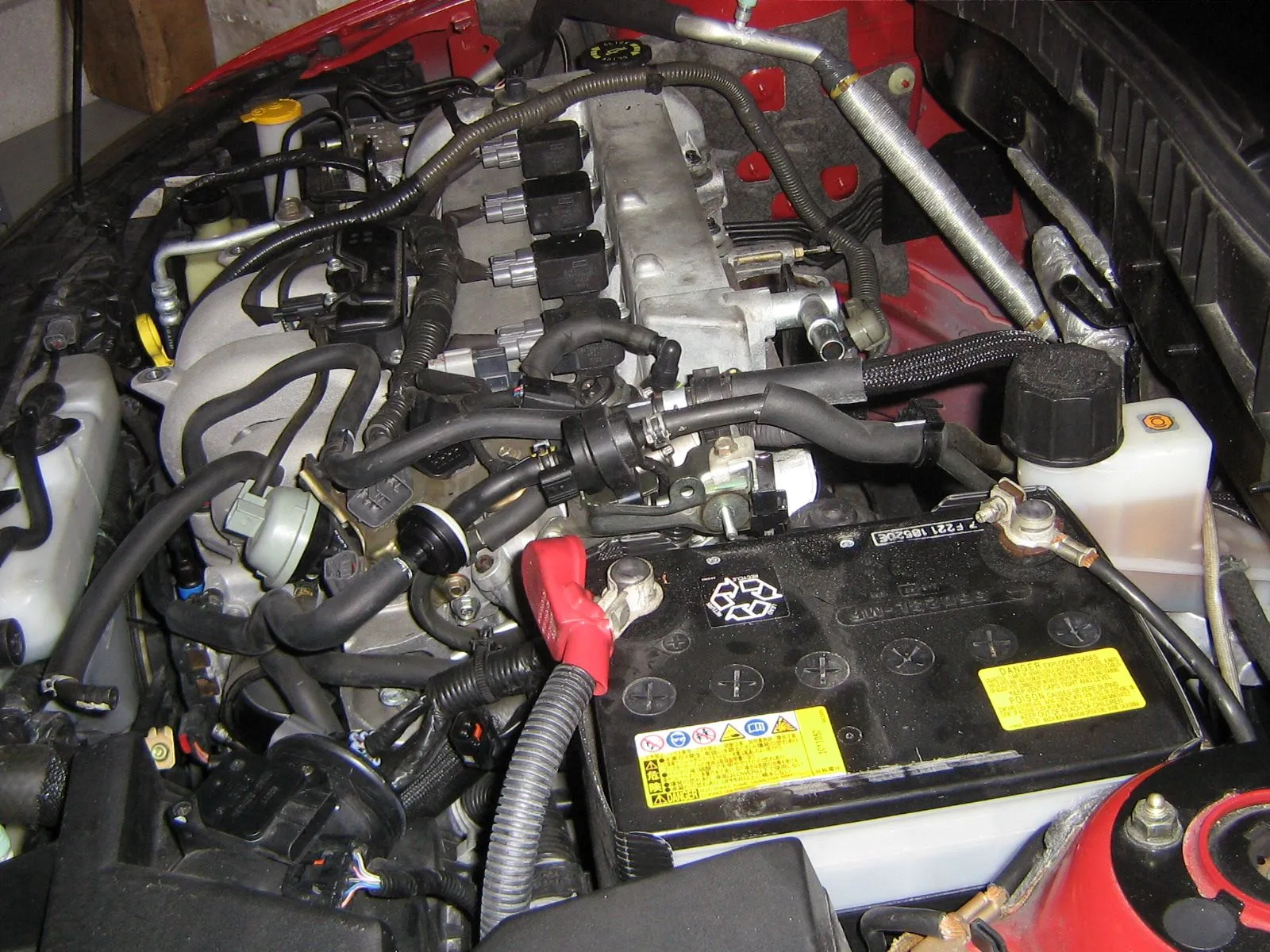

Manuel has a speed6 in the shop that the kit will be put on. Yes the kit is just about the same for the speed6 and speed3. Once Manuel finish working on the Audi S4 with bigger turbos and builted engine then the speed6 will be finished.

The speed6 owner might even get his engine builted.

Stayed tuned!
