Mazda Connect Firmware 74.00.230A (now .324A)

I have problem with failsafe update.
I have OS VERSION: 59.00.502 EU N
I tried to update it to update it to 70.00.100
everythinmg i have done as it wqas in instruction
it crashed at the first failsafe file update

now my failsafe version is not available when i try to check it in the cmu system.
even I cannot update failsafe and cannot findf instruction what and how to update the failsafe,
if You could give me any clue what to do, a would be greatful.
thx.
Alb

albbent said:
I have problem with failsafe update.
I have OS VERSION: 59.00.502 EU N
I tried to update it to update it to 70.00.100
everythinmg i have done as it wqas in instruction
it crashed at the first failsafe file update

now my failsafe version is not available when i try to check it in the cmu system.
even I cannot update failsafe and cannot findf instruction what and how to update the failsafe,
if You could give me any clue what to do, a would be greatful.
thx.
Alb
Click to expand...

Double check the instructions. If you have that OS version (59.xx.xxx), you do not need to update to a failsafe. Again, double check the instructions.

sm1ke said:
Double check the instructions. If you have that OS version (59.xx.xxx), you do not need to update to a failsafe. Again, double check the instructions.
Click to expand...
this is in the instruction.

2. Your NEXT Install Procedure....::

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW 59.00.560A
LIKE 31.00.100A or 41.00.000 or 51.00.351 or
55.00.650 or 56.00.513 or 59.00.502A
THEN YOU *MUST* UPDATE with Verion Number 70.00.100A FIRST.
THIS IS A ;TWO FILE; INSTALLATION FOR YOUR REGION or COUNTRY.

70.00.100A-FAILSAFE.UP
Then Install
70.00.100A-REINSTALL.UP

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE LAST VERSION TO INSTALL.


and so I have do it,. during install of filsafe error occured... not I need to recovery failsafe then I can do another updates.

albbent said:
this is in the instruction.

2. Your NEXT Install Procedure....::

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW 59.00.560A
LIKE 31.00.100A or 41.00.000 or 51.00.351 or
55.00.650 or 56.00.513 or 59.00.502A
THEN YOU *MUST* UPDATE with Verion Number 70.00.100A FIRST.
THIS IS A ;TWO FILE; INSTALLATION FOR YOUR REGION or COUNTRY.

70.00.100A-FAILSAFE.UP
Then Install
70.00.100A-REINSTALL.UP

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE LAST VERSION TO INSTALL.


and so I have do it,. during install of filsafe error occured... not I need to recovery failsafe then I can do another updates.
Click to expand...

Ah, I see, my mistake. I missed that you are located in the EU.

Try contacting @ASH8 to see if they can point you in the right direction to get what you need.

Hi @ASH8 ,

Could you share the latest infotainment OS update download link (both failsafe and reinstall files) for CX-5 2017 North America version? My current version 59.00.546 NA N

super6502 said:
Hi @ASH8 ,

Could you share the latest infotainment OS update download link (both failsafe and reinstall files) for CX-5 2017 North America version? My current version 59.00.546 NA N
Click to expand...

kgtree said:
Would someone mind DMing me the most up to date NA file and instructions for:

Current: 59.00.504 NA N
Click to expand...

If ASH8 hasn't gotten back to you guys yet, please read the first post in the thread. You should PM ASH8 to politely request the update files.

@ASH8 I successfully upgraded my car’s firmware last night. The instructions are very clear! Followed exact steps and completed in 45 mins. Thank you!🙏

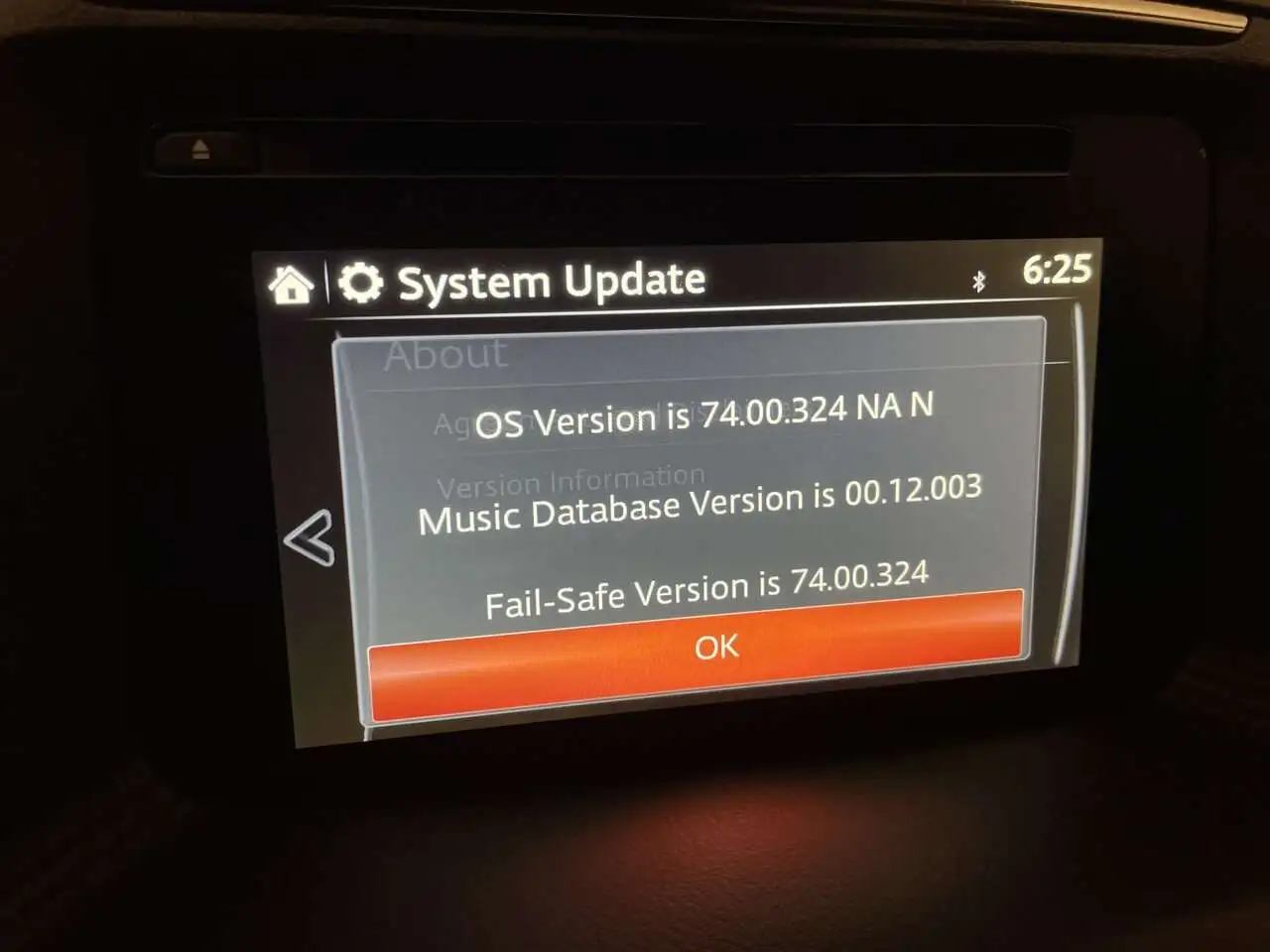

I have ver 74.00.324 installed and did the apple CarPlay update on my 2016 CX-5 GT several months ago, the memory card for the NAV consantly disconnects and reconnects, recently the operating system has started randomly rebooting… what’s going on and how do I resolve?

ASH8 said:
Please note the OP has directly copied my files in his first post, but I can not amend it.

There has been a change in what Version Numbers to now Install and this depends on what Version is currently running in your Mazda today.

Install Procedure...
(All Mazda Models already on Stage 2 .up firmware in use).

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW
55.00.600 NA N for North America, or,
56.00.000 EU N or 4A N for Europe/UK , or Australia, Asia, NZ, Oceania Middle East.
LIKE 31.00.100 or 41.00.000 or 55.00.000 (NA N) or 56.00.000A (EU N or 4A N).
THEN YOU MUST UPDATE with Version Number 70.00.100A First!.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.



Warning...!!!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL use YOUR ''CONNECT'' in CAR FOR A FEW MINUTES, THEN SHUTDOWN CAR FOR THE LAST FINAL VERSION TO INSTALL.

Next you MUST do final and last below.....
----------------------------------------------------------

Your FINAL Install Procedure is now Only a 1 (one) File Installation...
(All Mazda Models with .up Firmware use)

IF YOUR MAZDA HAS .up FIRMWARE VERSION ON or ABOVE
55.00.650A (NA N) or the 56.00.100A (EU N or 4A N) or 58.00.310A
or Any 59.00.502A or 59.00.650A,
or Any 70's Firmware like 70.00.021A, 70.00.100A or 70.00.110 or
70.00.150A or 70.00.335C or 70.00.367A or 74.00.230A or 74.00.311A
THEN YES YOU CAN UPDATE Directly to 74.00.324A for LATEST FIRMWARE.

This is now a SINGLE FILE (1) ONLY INSTALLATION for
YOUR REGION or COUNTRY,

MUST USE EITHER ONE of...

NA N_74.00.324A-UPDATE.UP (North America ONLY)
or
EU N_74.00.324A -UPDATE.UP (Europe/UK)
or
4A N_74.00.311A-UPDATE.UP (ADR, AU. NZ, ME, Asia) (74.00.324A 4A N (ADR) is not yet available)

THIS IS THE LATEST GENUINE FIRMWARE CURRENTLY AVAILABLE
FROM MAZDA JAPAN As Of December 30th, 2022.

-----------------------------------------------------------------------------------

ALL 7x.00.xxxx FIRMWARE INCLUDES the Software for
CAR PLAY + ANDROID-AUTO....But...

For the CP/AA CONVERSION TO ACTUALLY WORK IN YOUR MAZDA

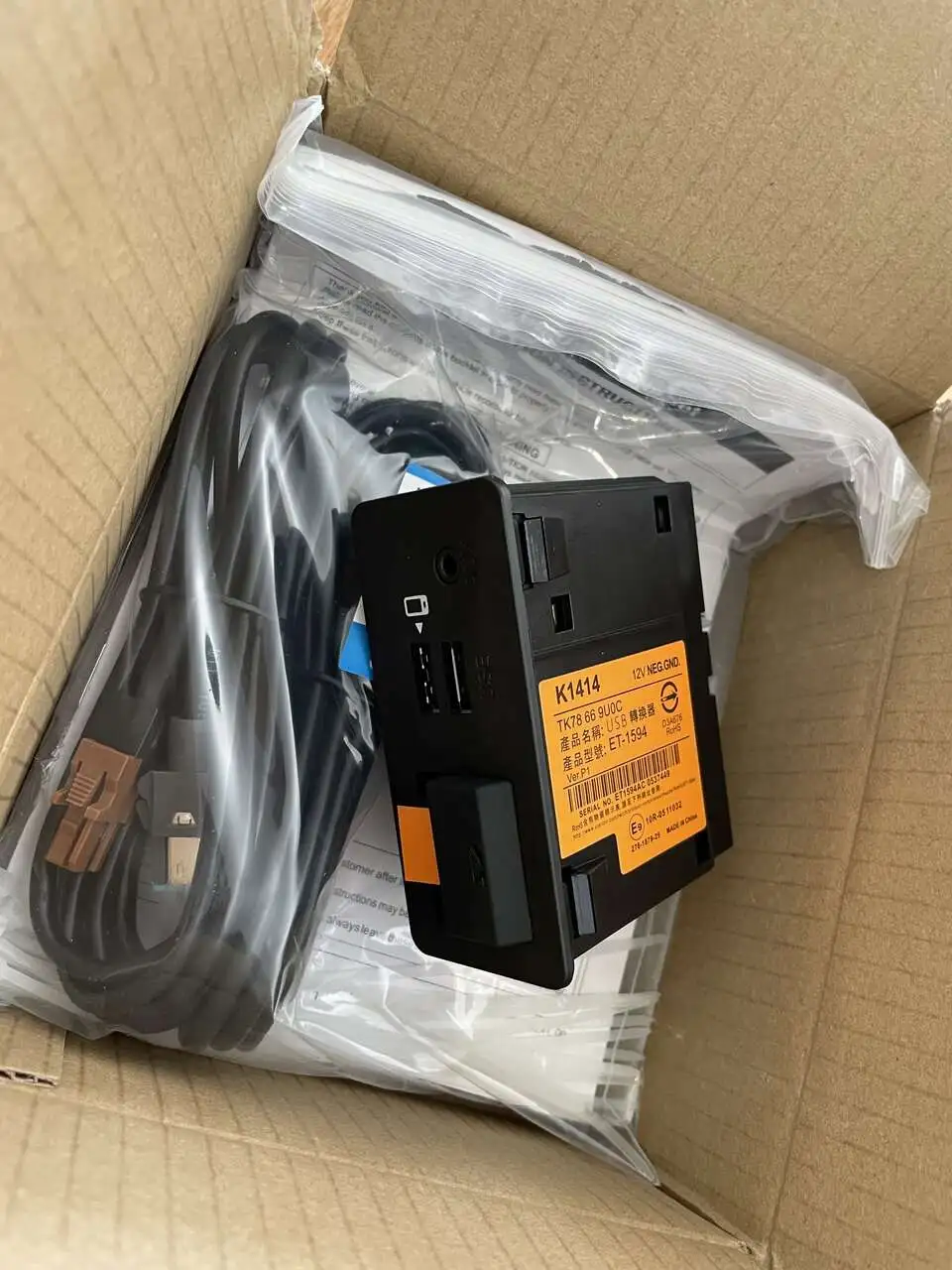

You MUST HAVE THE TWO ''GENUINE MAZDA PARTS'' INSTALLED
AFTER any 7X.00.XXXX is installed and or WORKING in YOUR CAR FIRST.

THERE ARE NO SHORT CUTS or OTHER BRAND PARTS...None, DO NOT ASK.

YOU MUST PURCHASE and INSTALL the TWO GENUINE MAZDA PARTS LAST.

DO NOT INSTALL THESE NEW PARTS FIRST or BEFORE ANY 70s FIRMWARE OTHERWISE YOU WILL HAVE TO REMOVE THE NEW PARTS RE-INSTALL THE OLD PARTS AND THEN START AGAIN.

YOU CAN NOT SEPARATE THIS CARPLAY and or ANDROID-AUTO
AS THEY ARE BOTH INSTALLED WITH all 7x.00.xxx FIRMWARE.

CARPLAY and ADROID-AUTO WILL NEVER WORK WITHOUT THE
TWO ''GENUINE MAZDA PARTS'' Finally INSTALLED Last...PERIOD.

*
Click to expand...
I plan to update from version 33.00.500 to 74.00.324

DO I need to still before installation of 2 FILES

70.00.100A-FAILSAFE.UP (First)
Then next Install (one after the other do not remove the USB Flash Drive).
70.00.100A-REINSTALL.UP (Last)

DO in engineering menu CLEAR the AVC DIC by pressing 3 ( enter then clear) and then 2 ( enter and clear)?

I have seen in on two videos on YouTube.

crikey said:
***** Moderator edit: The most recent update at this time is 74.00.324A. Please comb through the thread to learn how to obtain the update and installation instructions, and note that Mazdas247 does not assume responsibility of the actions taken by its members or the damages that may result from those actions.




Looks like there’s a new firmware, anyone try it yet?

74.00.230A

Changelog

***** MAZDA Firmware ALERT *****
from JUN 01, 2021

MAZDA (MZD) CONNECT, WHAT FIRMWARE DO I INSTALL..?

FOLLOW the .PDF INSTALLATION INSTRUCTIONS 100%.

*******************************
'.up' Firmware used for All MAZDA-MZD CONNECT MODELS 2014-2021.
**NOT For first production CX-5 or Mazda 6 with TomTom Navigation**.

*NOT For MAZDA CX-30 or MX-30 or MAZDA 3 (BP) see the
"CONNECT II 2019~" Folder for their own '.kwi' firmware*.

***NOT For 2021 MAZDA CX-5 (KF) or MAZDA CX-9 (TC) see the
"CONNECT 1.5 from 2021~" Folder for their own 'kwi' firmware***.

*******************************

BEFORE you START, Switch CAR OFF,
Then Remove Navigation 'SD Card' and
LEAVE the SD Card OUT of the Car until
the FINAL File is Installed.
Then Car OFF again, then Insert SD Card.
Then start car.
Navigation will work as normal when using CONNECT.
-------------------------------------

1. Your FIRST Install Procedure...

IF YOUR MAZDA has old FIRMWARE VERSION ON or BELOW 30.00.000
LIKE 23.00.000 or 25.00.150 or 28.00.300 or 29.00.100C
THEN YOU *MUST* UPDATE with Version Number 31.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

31.00.100A-FAILSAFE.UP (First)
Then next Install
31.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE NEXT VERSION
TO INSTALL.
-------------------------------------

2. Your NEXT Install Procedure...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW 59.00.560A
LIKE 31.00.100A or 41.00.000 or 51.00.351 or
55.00.650 or 56.00.513 or 59.00.502A
THEN YOU *MUST* UPDATE with Verion Number 70.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

70.00.100A-FAILSAFE.UP (First)
Then Install
70.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE LAST FINAL VERSION
TO INSTALL.

-------------------------------------

3. Your FINAL Install Procedure is ONLY 1 (one) File now...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or ABOVE 70.00.021A
LIKE 70.00.100A or 70.00.110 or or 70.00.150A or 70.00.335C or 70.00.367A
THEN YOU UPDATE to 74.00.230A for the LATEST FIRMWARE.

This is now a SINGLE FILE (1) ONLY INSTALLATION for
YOUR REGION or COUNTRY, MUST USE EITHER ONE of...

NA N_74.00.230A-UPDATE.UP (North America ONLY)
or
EU N_70.00.367A-UPDATE.UP (Europe/UK)
or
4A N_70.00.367A-UPDATE.UP (ADR, AU. NZ, ME, Asia)

THIS IS THE LATEST FIRMWARE CURRENTLY AVAILABLE.

INSTALLATION AS PER INSTRUCTIONS IN SERVER
''MAZDA FIRMWARE UPDATE PROCEDURE WORLDWIDE'' .Pdf

-------------------------------------

ALL 7x.00.xxxx FIRMWARE INCLUDES the Software for
CAR PLAY + ANDROID-AUTO....But...
For the CP/AA CONVERSION TO ACTUALLY WORK IN YOUR MAZDA
You MUST HAVE THE TWO ''GENUINE MAZDA PARTS'' INSTALLED
AFTER any 7X.00.XXXX is installed and or WORKING in YOUR CAR FIRST.

More Information on How to get CP/AA Working Do the Following..
OPEN THE ''-CARPLAY-ANDROIDAUTO INSTALL'' FOLDER IN
THIS SERVER ON HOW TO DO THE GENUINE CONVERSION.

THERE ARE NO SHORT CUTS or OTHER BRAND PARTS...NONE, SO DO NOT ASK.

YOU MUST PURCHASE AND INSTALL THE TWO GENUINE MAZDA PARTS, LAST.

YOU CAN NOT SEPARATE THIS CARPLAY and or ANDROID-AUTO
PACKAGE AS THEY ARE BOTH INSTALLED WITH all 7x.00.xxx FIRMWARE.

CARPLAY and ADROID-AUTO WILL NEVER WORK WITHOUT THE
TWO ''GENUINE MAZDA PARTS'' Finally INSTALLED Last...PERIOD.

***********************************

WCP or Wireless Car Play is included in all 74.00.xxxx Firmware, BUT
You MUST aslo use a new 2021 CMU meant for WCP use price is over $999 USD.

***********************************

If 74.00.230A is not in this Server for your Region it means a copy is not yet available
for Your Region or Country in the wild, yet.
Click to expand...
I installed this firmware version and all was good for a couple hrs and then the screen rebooted. Eventually it came to a point where the screen rebooted almost every minute. Frustrating as heck for sure. However I've started watching a YT channel called Cardiax Plays who is a certified Mazda tech that has his own shop. In one of his videos titled Easy Way!!! Self diag your Mazda display he mentions that this rebooting problem could be caused by a corrupt NAV SD card. He shows a page from Mazda that lists the corrupt SD card numbers. My SD card number was one of those so I removed the card completely. System is working perfectly. You can get a new SD card if you want but I've never liked the NAV in my 2018 CX9 anyway so I won't bother. I'll just use my phone. Anyway if anyone can't seem to get their system to stop rebooting and the vehicle has the NAV option remove it and see what happens.
crikey said:
***** Moderator edit: The most recent update at this time is 74.00.324A. Please comb through the thread to learn how to obtain the update and installation instructions, and note that Mazdas247 does not assume responsibility of the actions taken by its members or the damages that may result from those actions.




Looks like there’s a new firmware, anyone try it yet?

74.00.230A

Changelog

***** MAZDA Firmware ALERT *****
from JUN 01, 2021

MAZDA (MZD) CONNECT, WHAT FIRMWARE DO I INSTALL..?

FOLLOW the .PDF INSTALLATION INSTRUCTIONS 100%.

*******************************
'.up' Firmware used for All MAZDA-MZD CONNECT MODELS 2014-2021.
**NOT For first production CX-5 or Mazda 6 with TomTom Navigation**.

*NOT For MAZDA CX-30 or MX-30 or MAZDA 3 (BP) see the
"CONNECT II 2019~" Folder for their own '.kwi' firmware*.

***NOT For 2021 MAZDA CX-5 (KF) or MAZDA CX-9 (TC) see the
"CONNECT 1.5 from 2021~" Folder for their own 'kwi' firmware***.

*******************************

BEFORE you START, Switch CAR OFF,
Then Remove Navigation 'SD Card' and
LEAVE the SD Card OUT of the Car until
the FINAL File is Installed.
Then Car OFF again, then Insert SD Card.
Then start car.
Navigation will work as normal when using CONNECT.
-------------------------------------

1. Your FIRST Install Procedure...

IF YOUR MAZDA has old FIRMWARE VERSION ON or BELOW 30.00.000
LIKE 23.00.000 or 25.00.150 or 28.00.300 or 29.00.100C
THEN YOU *MUST* UPDATE with Version Number 31.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

31.00.100A-FAILSAFE.UP (First)
Then next Install
31.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE NEXT VERSION
TO INSTALL.
-------------------------------------

2. Your NEXT Install Procedure...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW 59.00.560A
LIKE 31.00.100A or 41.00.000 or 51.00.351 or
55.00.650 or 56.00.513 or 59.00.502A
THEN YOU *MUST* UPDATE with Verion Number 70.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

70.00.100A-FAILSAFE.UP (First)
Then Install
70.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE LAST FINAL VERSION
TO INSTALL.

-------------------------------------

3. Your FINAL Install Procedure is ONLY 1 (one) File now...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or ABOVE 70.00.021A
LIKE 70.00.100A or 70.00.110 or or 70.00.150A or 70.00.335C or 70.00.367A
THEN YOU UPDATE to 74.00.230A for the LATEST FIRMWARE.

This is now a SINGLE FILE (1) ONLY INSTALLATION for
YOUR REGION or COUNTRY, MUST USE EITHER ONE of...

NA N_74.00.230A-UPDATE.UP (North America ONLY)
or
EU N_70.00.367A-UPDATE.UP (Europe/UK)
or
4A N_70.00.367A-UPDATE.UP (ADR, AU. NZ, ME, Asia)

THIS IS THE LATEST FIRMWARE CURRENTLY AVAILABLE.

INSTALLATION AS PER INSTRUCTIONS IN SERVER
''MAZDA FIRMWARE UPDATE PROCEDURE WORLDWIDE'' .Pdf

-------------------------------------

ALL 7x.00.xxxx FIRMWARE INCLUDES the Software for
CAR PLAY + ANDROID-AUTO....But...
For the CP/AA CONVERSION TO ACTUALLY WORK IN YOUR MAZDA
You MUST HAVE THE TWO ''GENUINE MAZDA PARTS'' INSTALLED
AFTER any 7X.00.XXXX is installed and or WORKING in YOUR CAR FIRST.

More Information on How to get CP/AA Working Do the Following..
OPEN THE ''-CARPLAY-ANDROIDAUTO INSTALL'' FOLDER IN
THIS SERVER ON HOW TO DO THE GENUINE CONVERSION.

THERE ARE NO SHORT CUTS or OTHER BRAND PARTS...NONE, SO DO NOT ASK.

YOU MUST PURCHASE AND INSTALL THE TWO GENUINE MAZDA PARTS, LAST.

YOU CAN NOT SEPARATE THIS CARPLAY and or ANDROID-AUTO
PACKAGE AS THEY ARE BOTH INSTALLED WITH all 7x.00.xxx FIRMWARE.

CARPLAY and ADROID-AUTO WILL NEVER WORK WITHOUT THE
TWO ''GENUINE MAZDA PARTS'' Finally INSTALLED Last...PERIOD.

***********************************

WCP or Wireless Car Play is included in all 74.00.xxxx Firmware, BUT
You MUST aslo use a new 2021 CMU meant for WCP use price is over $999 USD.

***********************************

If 74.00.230A is not in this Server for your Region it means a copy is not yet available
for Your Region or Country in the wild, yet.
Click to expand...

Shortly I will be updating the firmware in my 2021 MX-5 from 74.00.200 to the current 74.00.324A.

What I am wondering is if there are any release notes or description of bugs fixes/enhancements available anywhere that cover changes in latest and/or preceding updates since 74.00.200.

Thanks in advance for any info.

Thanks all.
recently purchased a 2018 mazda 3, with version 70.00.235.

Could someone DM me the 74.00.324a EU N file (or latest!) ? Many thanks in advance.

Just to make this clear as I can't edit MY old post.

You DO NOT NEED TO Use the Intermediate Firmware of 70.00.100A if your CURRENT Version is 56.00.100 or anything NEWER, that is 56.00.200, 56.00.650, 58.00.240, 59.00.100, 59.00.342A or 70.00.021.

You go straight to 74.00.324A EU N or 4A N.

For North America or NA N the Version change point is 55.00.650 NA N, or Again anything NEWER like, 55.00.753, 56.00.750, 58.00.100, 59.00.770 or 70.00.021

You go straight to 74.00.324A NA N.

74.00.324A is much more forgiving when installing and once up and running it is faster and cleaner to use than all other versions before it.

If you want files from me you must PM, DM or Message me quoting the following...

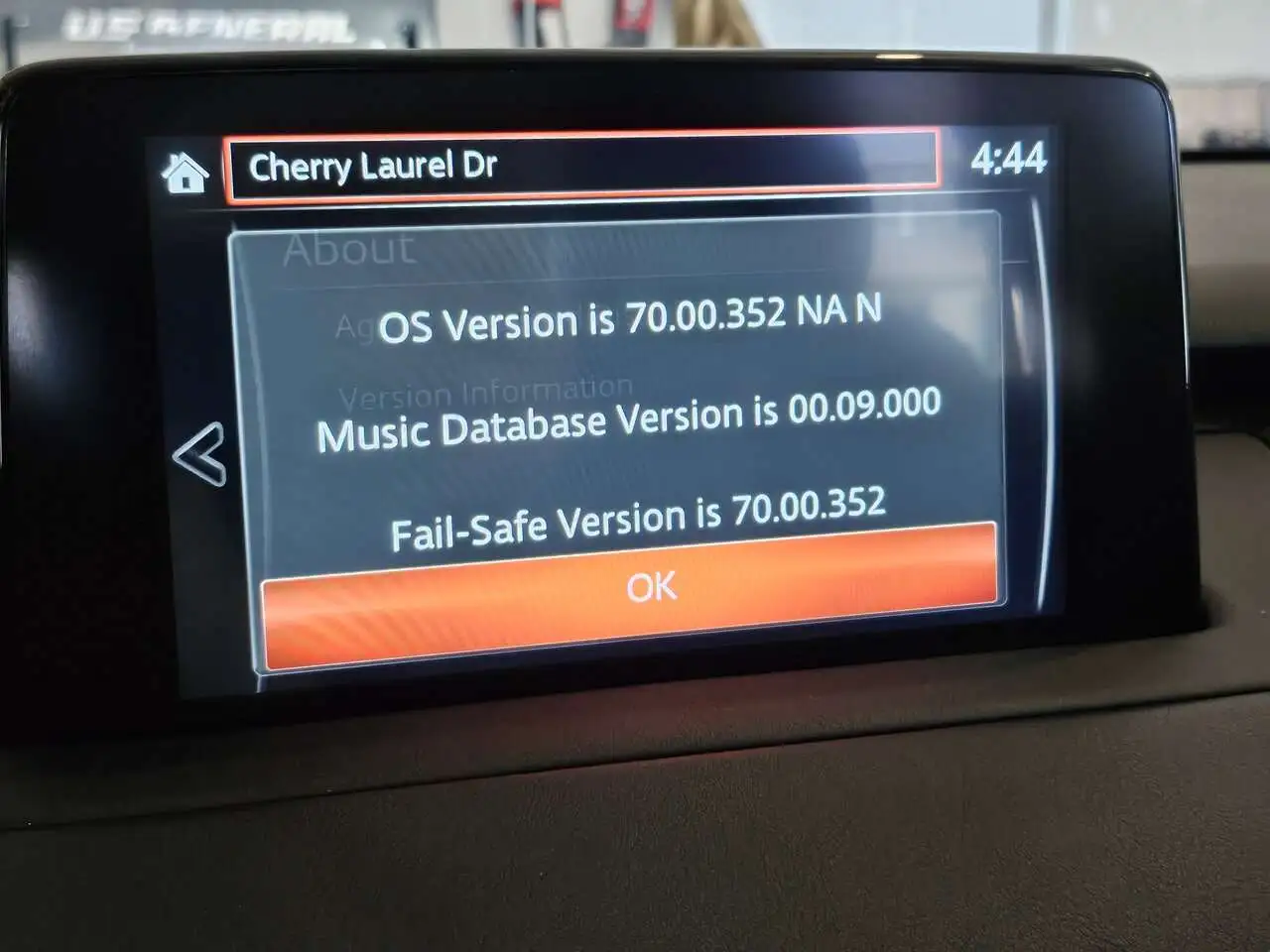

I Need to know what FULL Version Number is used in car now.

1. Go to touchscreen red 'SETTINGS',
2. Side Scroll to Top Far Right Folder 'SYSTEM',
Scroll Down to 'ABOUT'
3. Touch 'Version Information'.
FULL Version Numbers and Region Letters are revealed,
Next ONLY send a Picture of this screen details.
Also tell me in what country is your Mazda driven in.

CatmanTX said:
Hi,
I have a Mazda CX-9, in US 2020
OS ver 70.00.335 NA N
Music Database 00.09.000
Fail-Safe 70.00.335

Do I need any updates?
Thank you so much!
Click to expand...

As ASH8 posted..
If you want files from me you must PM, DM or Message me quoting the following...

He may not see your post reply, so PM, DM or message him directly.

Please log in or register to reply here.

Similar threads

theblooms
    • Like
Important Info: Using the iDataLink Maestro RR in Mazdas
Replies
0
Views
1K
theblooms
theblooms
D
Mazda Connect Voice Input Of Nav Address
Replies
1
Views
1K
youri
Y
C
Mazda CX-5 2016 Android Auto questions
Replies
1
Views
2K
7eregrine
7eregrine

Latest posts

Back
