Good Friends, I have reviewed multiple forums and videos on the web and I cannot find an effective or clear way of how to put the independent fog lights of our CX9 2010/2012 the tutorial of the 4 fuses to point the pink wire of heated seats, in our mazda 2011 does not have that color of wire, I would like to revive the discussion about this MOD for cx9 2011/2012 samples. someone who has already made this mod correctly and if it helps us, thank you very much.
Installing CX-9 2010 / 2012 fog light mod
- Thread starter CX-92011
- Start date
- :
- 2009 Mazda CX-9 GT
Get out your volt meter or test light and find the "key on" power at the heated seat relay.
- :
- 2009 Mazda CX-9 GT
The heated seat relay is used as it is the easiest. Lots of other options. Find any "key on" 12v source. Some have used the green park light wire.
Thank you very much for the time you take to answer me, I know that this issue of the fog lights in the cx9 of the years 2008/2012 is already somewhat dead, but I would like to revive it again since this car in my country Panama is very fashionable after 12 years old. and here it is handled with fog lights 24/7. I would like to get your help when you have time and help me to get this Mod done correctly for the cx9 2010/2012 and so you can make an update to your Mod and I can recommend it here in my country.
- :
- 2009 Mazda CX-9 GT
I will help as much as I can, but a voltmeter is going to be your friend. You say there is no pink wire at the relay, so what colour is it? Does it have ignition power going to it?

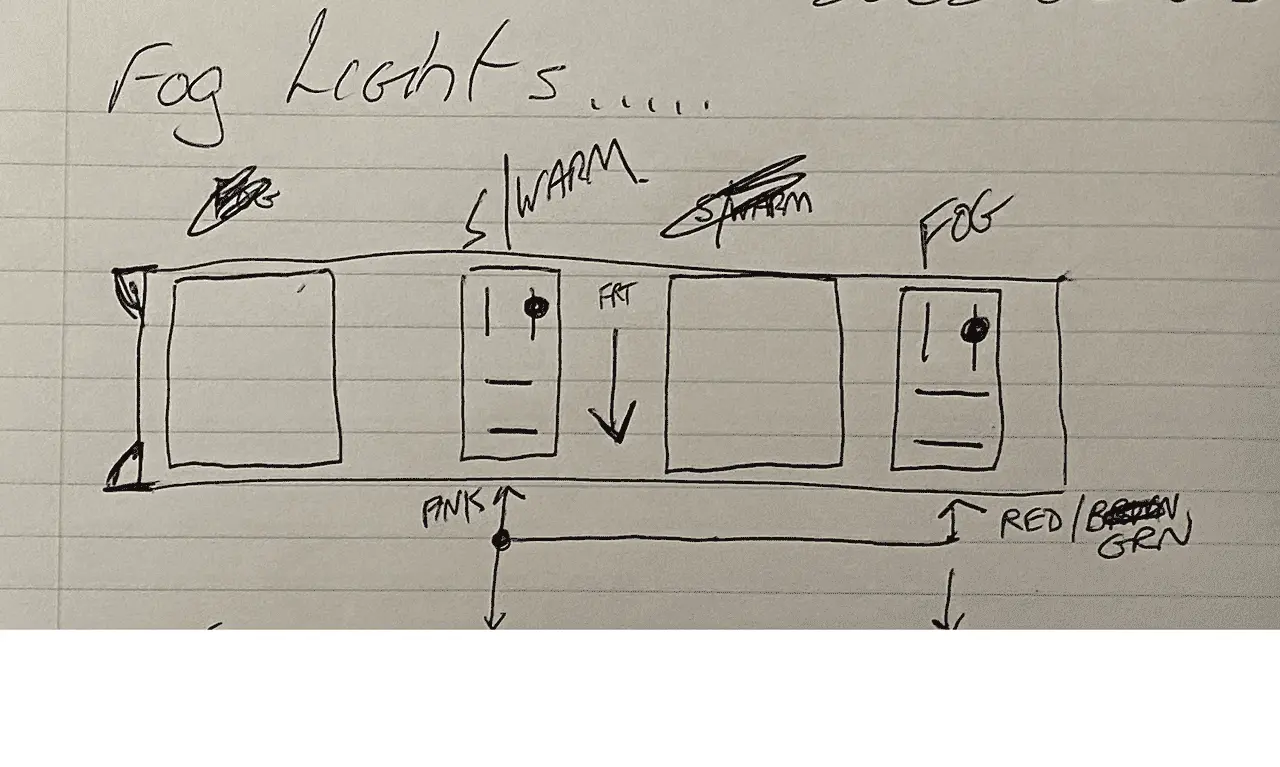

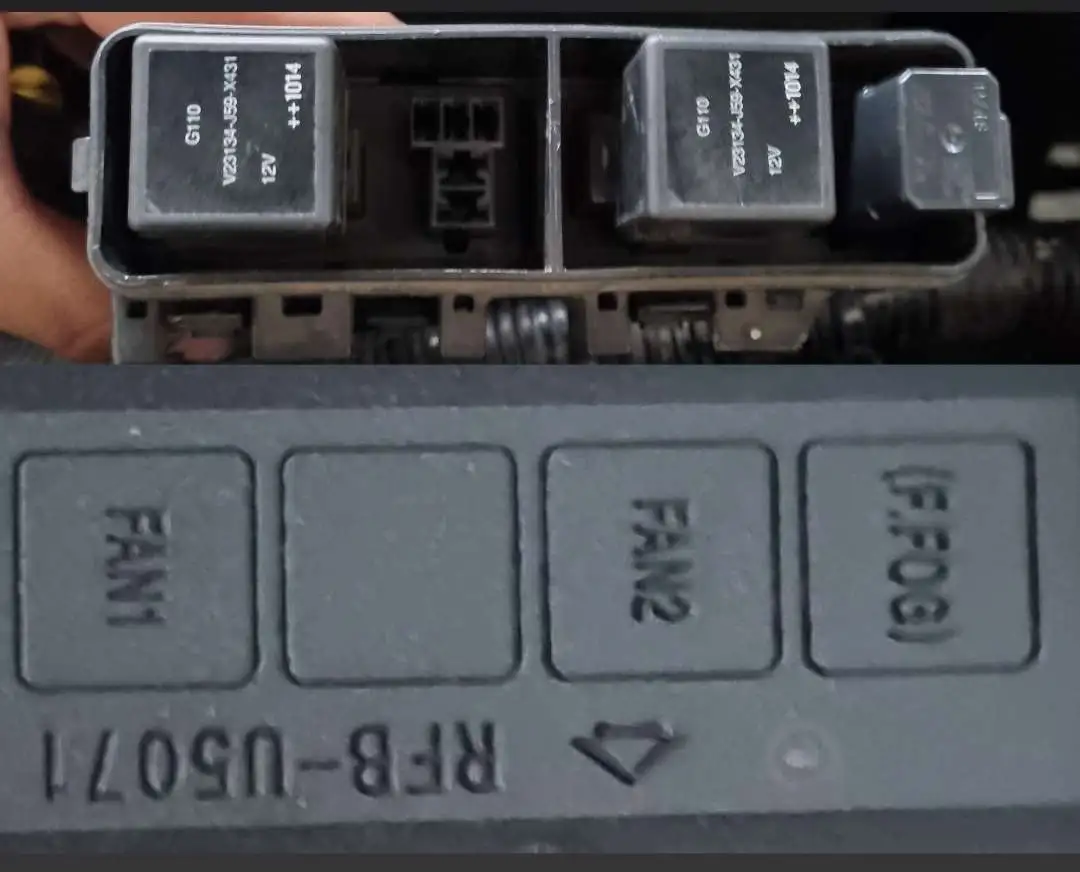

Looking at the relay holder, here are the pins/wires we are dealing with:
Looking at the relay holder, here are the pins/wires we are dealing with:
- :
- 2009 Mazda CX-9 GT
No seat heater at all. I would run a wire from the park light circuit (green wire I believe) to the fog light relay. Or find an ignition hot circuit in the fuse box.

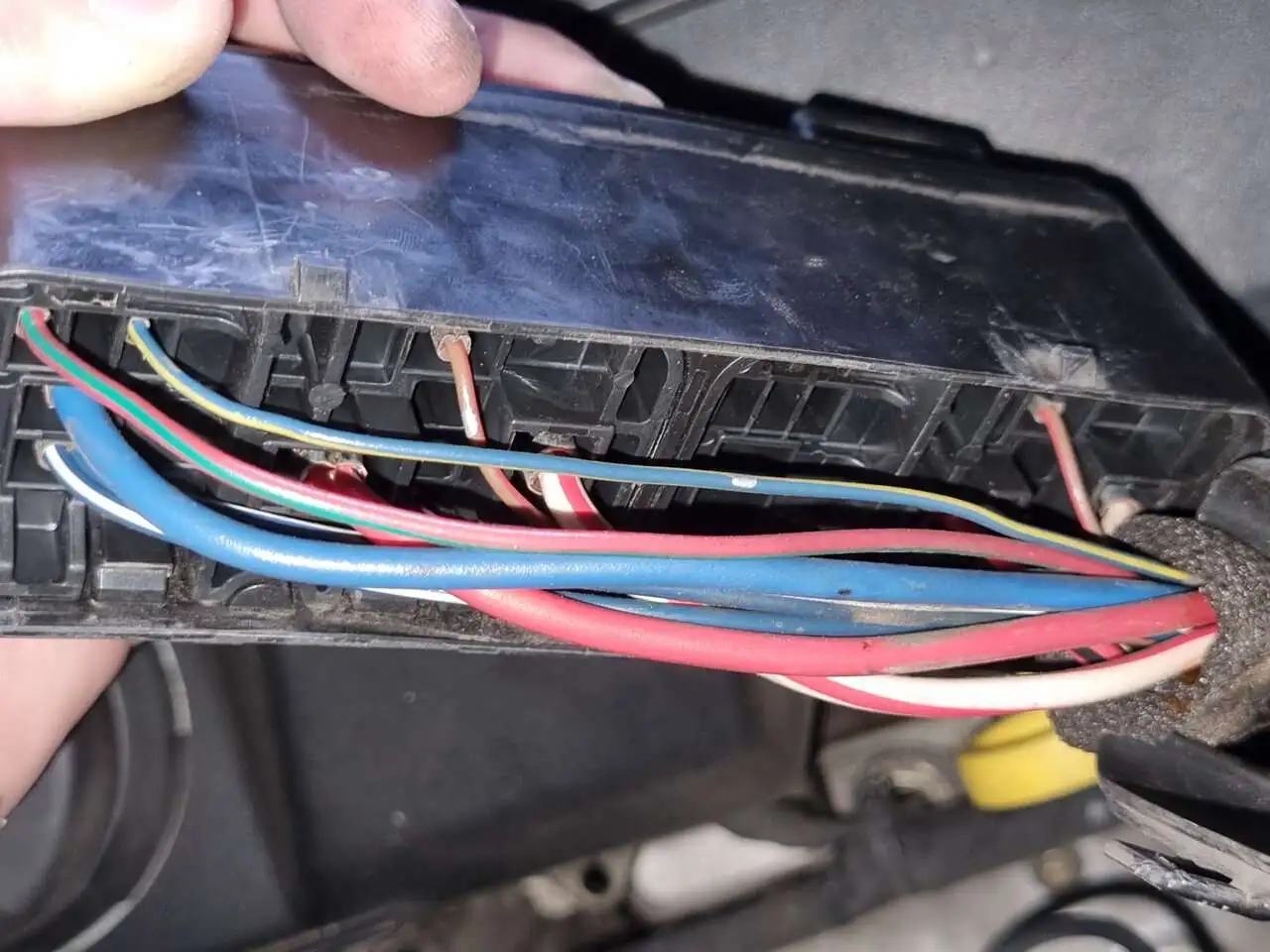

yes, indeed there is no heated seat relay, on 2010/2012 models, My CX9 2011 Grand Touring with heated seats and factory fog lights. but in the parking lights there is a yellow cable and 2 green ones, I would have to wear it during the day to test which of the 2 sends the 12v at the start.
