Okay to get the actual FMI mounted into the front bar how the hell am I supose to drill wholes theough that metal ... I Tryed with a plug in power drill... And got a pin whole out of it lol maybe tourching it first...? That was my issue and why I just have the pipes ran to my SMI for now ...
Maiello169
Member
- :
- Mazda, Protege, Speed
Yea my biggest issue is getting it mounted ... And let's so after 2 urs of drilling these wholes how is the screw going to stay in there with no nut on the other side ....
- :
- '13 CWP MS3 & '16 Mazda6 GT
Go to harbor freight and buy a pack of 1/4" drill bits for $4 and go to town....it didnt take much to drill holes for mine. I only drilled through one plate on the crach bar and cut a hole in the back so I could get the bolt in there and tighten it down.
Maiello169
Member
- :
- Mazda, Protege, Speed
Dont think my sawzow would fit to cut the back... What kind of drill did u use... I have. A bluff in drill.....
- :
- '13 CWP MS3 & '16 Mazda6 GT
I used a corded drill to drill the holes for the mounting screws and I used a air cutting tool to cut holes in the back of the bar.
Maiello169
Member
- :
- Mazda, Protege, Speed
Yeah I dnt have my aircompresure, at my brothers house.... Just the plug in sawzow .... And maybe a few other things but not for cutting mettle more for wood lol
Maiello169
Member
- :
- Mazda, Protege, Speed
What's the easiest / best way to run those first 2 pipes to get into the engine "pit" ....
- :
- '13 CWP MS3 & '16 Mazda6 GT
check the pics that have been posted. its all in how you want to do it.
Maiello169
Member
- :
- Mazda, Protege, Speed
Yeah Ive looked at them, some are done in kinda sloppy way others ran nice, wich takes more time... I want it too look nice and done right.as well, is it worth having it done perfecianaly for around $200-$300... Or spend 8 hrs to do it my self ..... And hope I can do it lol maybe wait till the spring too.... ?
silverzoom01lx
Member
- :
- 2001 protege lx 2.0 l
wow this is some good imfo just what i want.
Maiello169
Member
- :
- Mazda, Protege, Speed
Just went over to the hardwear store on my break got new.drill bits $7 a pc... And some new screws too, cuz the ones it. Came with are like 2/4-3/4 so need somthing smaller .... Might try and drill all the way through so i got ling screws and short ones as well just in case lol hope the new.bits will work , they R made to go through steel .... Now its how to run the pipes through all that ....

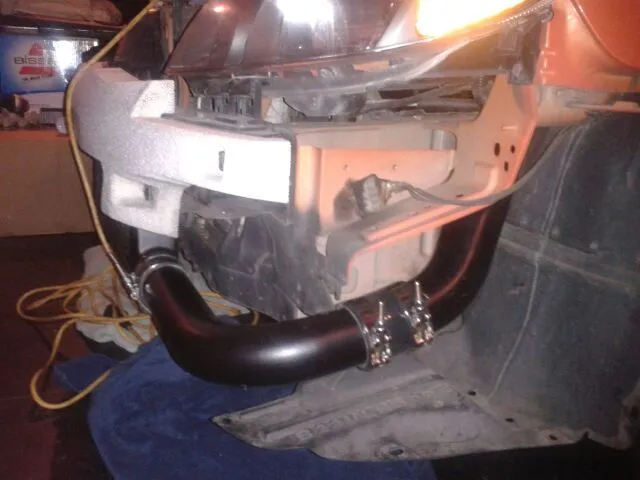

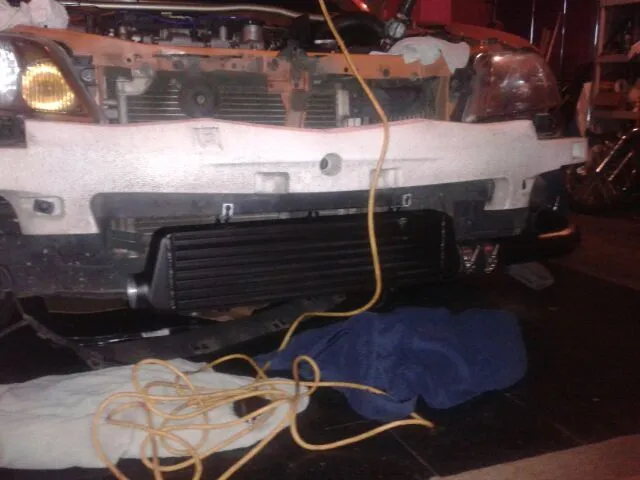

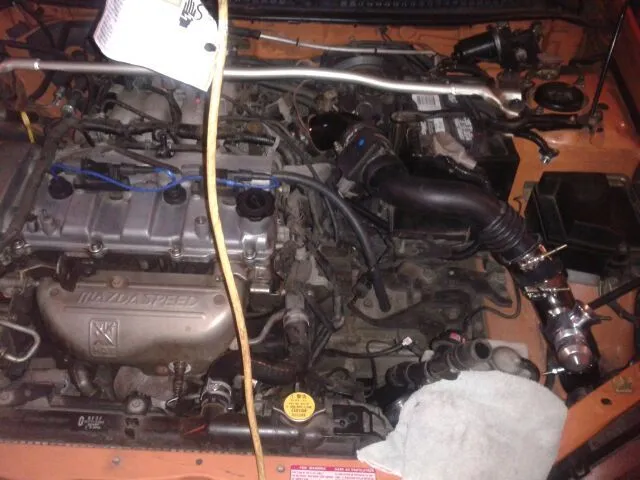

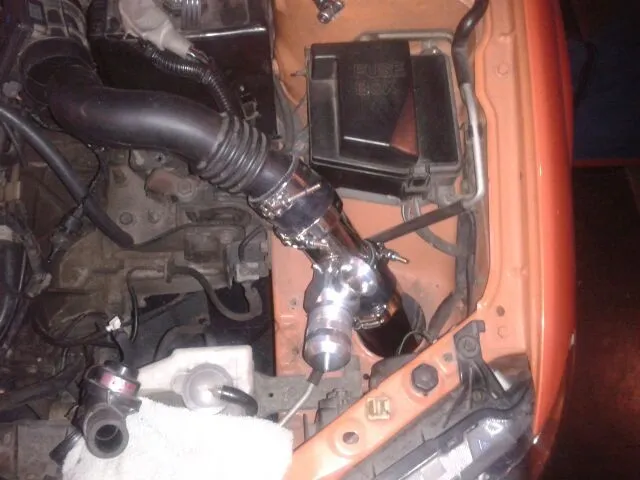

So started my install last night, figured I'd be able to finish today but did not go as planned. Started by mounting the intercooler, which is a 27 x 5.5 x 2.5 . Got my cold side all set up except I need a larger coupler for MAF sensor as you'll see in the picture. the Hot side has become a little problem, as noted on this thread earlier, the AC pipe is in the way, and for me it appears the Bottom radiator hose is also a slight issue. So After I did cold side, I figured I try and line bumper up, and as you can probably guess the fog light housing is hitting the cold pipe. .....Gonna try and move it alittle but does anyone have any advice for me? Here are some pics
hornsfan10609
Certified Mazda Tech
- :
- 2003.5 Mazdaspeed Protege x2
You can trim the back of the bumper cover to fit better, but I fit my piping in without cutting any of it. I cut the bottom of the metal that comes down right near the bend of the pipe for the cold pipe for more clearance. The MAF will fit into a 2.5" coupler, I did that on my car and it worked great.
My IC is mounted in about the same spot as yours and honestly I wish mine sat another inch or so higher. The way the core is mounted on top with the tabs will be visible through the front grille so maybe shoot those with some black paint when you are done.
You do have to fix the coldpipe though, don't use part of the stock plastic pipes that is ridiculous.
My IC is mounted in about the same spot as yours and honestly I wish mine sat another inch or so higher. The way the core is mounted on top with the tabs will be visible through the front grille so maybe shoot those with some black paint when you are done.
You do have to fix the coldpipe though, don't use part of the stock plastic pipes that is ridiculous.
