Homemade torsion bar.
- Thread starter Clod_King
- Start date
So I just got under my car tonight...

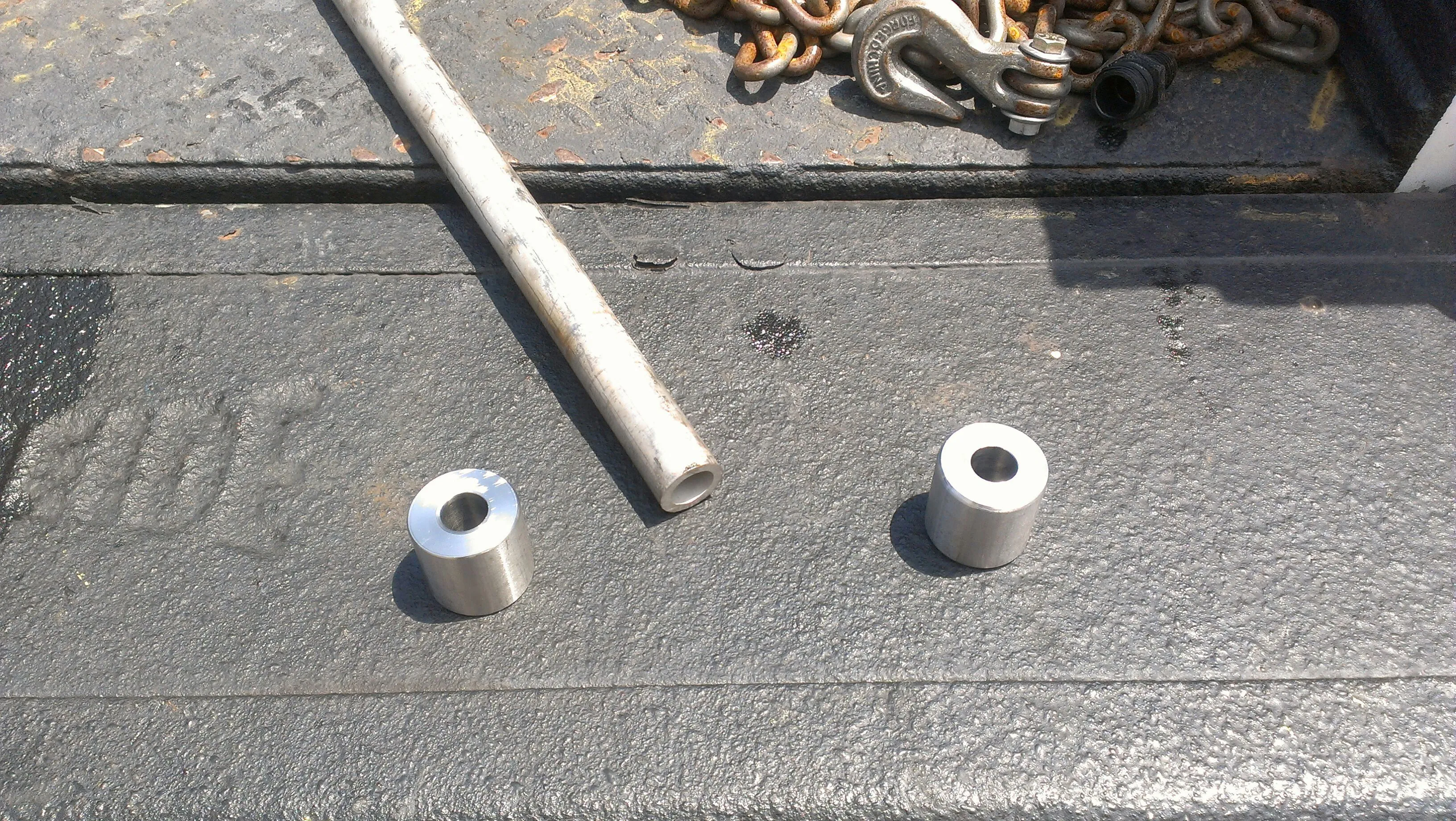

I already made my ends (1.5" diameter round bar X 1.5" tall) today, and I just picked a 1.5" hole saw to fish mouth the ends on the 1.5" diameter steel tubing.
The sizes I have under my car are as follows:
10mm bolt hole in the brace that is welded to the twist beam
**ASSUMED** 15mm hole in the twist beam
821mm spacing between bolt hole centers
^^^^^^^^^
The 821mm bolt hole spacing is (in my eyes) a fluctuating number. I believe the actual size should be 820mm. But since the braces are welded on, the bolt hole centers may shift from car to car....
I am going to be drilling out these holes to 5/8" so that they will allow for a little wiggle room for alignment with the (presumed) 15mm holes above them. I realize that this would make the hole 15.875 mm, and the fasteners i am using are 14mm, resulting in an overly sloppy fitment. I would prefer to keep bolt holes 1mm larger the fasteners typically (or 1/16th larger in imperial sized fasteners), but I want to make sure all the bolt holes line up in the end.
Oh and the flat section located around the 10mm bolt hole is in fact 1.5" in diameter, so try not to go over that size for your mounting points.
Sorry this took so long for me to get up on here. Busy BUSY weekend.
I already made my ends (1.5" diameter round bar X 1.5" tall) today, and I just picked a 1.5" hole saw to fish mouth the ends on the 1.5" diameter steel tubing.
The sizes I have under my car are as follows:
10mm bolt hole in the brace that is welded to the twist beam
**ASSUMED** 15mm hole in the twist beam
821mm spacing between bolt hole centers
^^^^^^^^^
The 821mm bolt hole spacing is (in my eyes) a fluctuating number. I believe the actual size should be 820mm. But since the braces are welded on, the bolt hole centers may shift from car to car....
I am going to be drilling out these holes to 5/8" so that they will allow for a little wiggle room for alignment with the (presumed) 15mm holes above them. I realize that this would make the hole 15.875 mm, and the fasteners i am using are 14mm, resulting in an overly sloppy fitment. I would prefer to keep bolt holes 1mm larger the fasteners typically (or 1/16th larger in imperial sized fasteners), but I want to make sure all the bolt holes line up in the end.
Oh and the flat section located around the 10mm bolt hole is in fact 1.5" in diameter, so try not to go over that size for your mounting points.
Sorry this took so long for me to get up on here. Busy BUSY weekend.
Okay, everyone. I might've goofed up... My bar won't fit. It's a little long, an I don't know if I measured the hole spacing incorrectly, or if I got mixed up during the welding process.... I will figure it all out tomorrow. So don't do any final welding there Ryno666
Last edited:
I have pics of the finished product, but none of it installed... I was excited to test it. And it works beautifully. I think it works better than the last bar I made. I have no idea whether it is because of the new mounting locations, or the change in materials though. I'll try and get some pictures up tomorrow.
That would've been the easier route if I had all the tools I needed at home, but I built this at work, and I didn't want to bring any jack stands to get underneath the car. Plus I would run a strong likelihood of puncturing a tire if I were to try and get the car into the shop.
