Dark green is the color I see of the FL22 factory fill coolant in my various Mazda's. Bright green would be wrong IMHO.
The factory fill in my 2020 is a bright green, no doubt about it.
There's reason to believe that Mazda changed suppliers somewhere along the way. Ravenol FL22 lists Motorcraft Specialty Green as a compatible coolant which happens to be dark green:
It's plausible that Mazda's FL22 was at one time this Ford / Motorcraft product (or a similar Ford predecessor). After all, FL22 was a Ford concoction or one jointly developed with Mazda. I'm not seeing anybody else producing a dark green product in the ethylene glycol / silicate free class of products. If this conjecture is correct, it begs the question of who's the guy putting bright green coolant in Mazda jugs today?
Mazda was using a different type of coolant until around 2012 (?) then switched to FL-22 after the SkyActiv engines released.
Here's a post from 2005 where a guy is talking about FL22 for his Mazda5, pretty deep in the Ford days:
Wow, its been hot and dry here in San Diego the last few days. I must say with the windows tinted the AC (w/low fan speed) has had no problems keeping the cabin comfortable. ....anyway, I plan on change my oil this weekend so I was snooping around under the hood tonight and noted several...
mazdas247.com
The FL22 designation is at at least 17 years old, ancient history in automotive years.

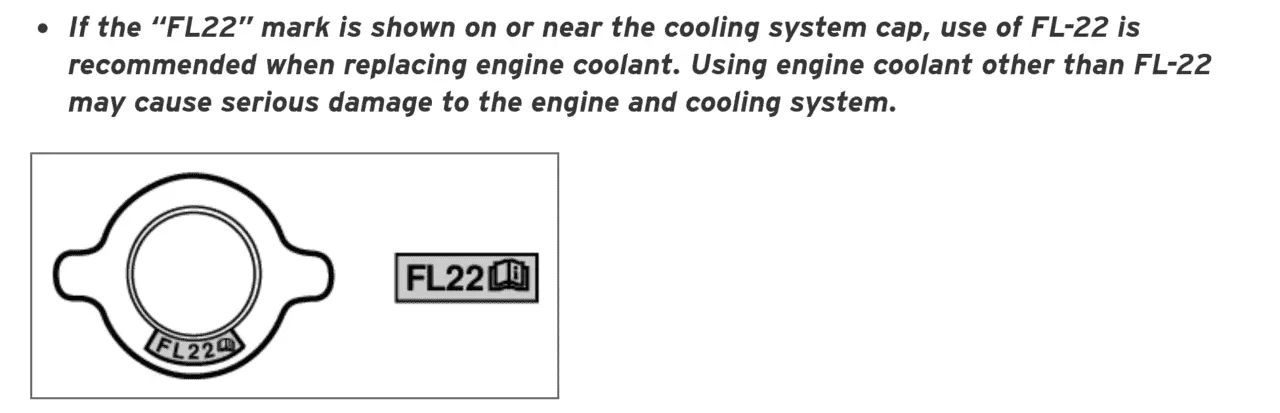

Per 2017 CX-5 owner's manual, FL22 coolant is recommended.
View attachment 314748
Mazda recommends FL22; they do not require it. That you
may cause serious damage using something else is kind of obvious since you could use a non-compatible product. There are compatible products that don't say FL22 on the label. Mazda is more direct in talking about using Mazda branded motor oil and (almost) nobody buys that recommendation: "Mazda Genuine Oil is used in your Mazda vehicle. Mazda Genuine 0W-20 Oil is required to achieve optimum fuel economy."
Back in 2016, Mazda provided this TSB:
Note the following:
"FL22 coolant is compatible with current (Green) ethylene glycol coolant."
There are several solid substitutes that don't have FL22 on the label. If you want to mimic Mazda's FL22 55/45 mix then then buy a compatible concentrate.
For example,
@theblooms discusses Peak Asian Green concentrate in post #9. That works for a 55/45 mix. I've used Peak 50/50 premix for a couple of ounces of top off--it checks all the boxes. You could use that Motorcraft Specialty Green discussed above which comes in a concentrate.
