Mazda Connect Firmware 74.00.230A (now .324A)

ASH8 said:
If you want files from me you must PM, DM or Message me quoting the following...

I Need to know what FULL Version Number is used in car now.

1. Go to touchscreen red 'SETTINGS',
2. Side Scroll to Top Far Right Folder 'SYSTEM',
Scroll Down to 'ABOUT'
3. Touch 'Version Information'.
FULL Version Numbers and Region Letters are revealed,
Next ONLY send a Picture of this screen details.
Also tell me in what country is your Mazda driven in.
Click to expand...
Hi Ash,

Pls refer below and appreciate you could send me the files via mail to ************
Am driving an
2017 Mazda 3 HB (BN) / 1.5L Auto
Country - Singapore / Asia

Thanks alot!

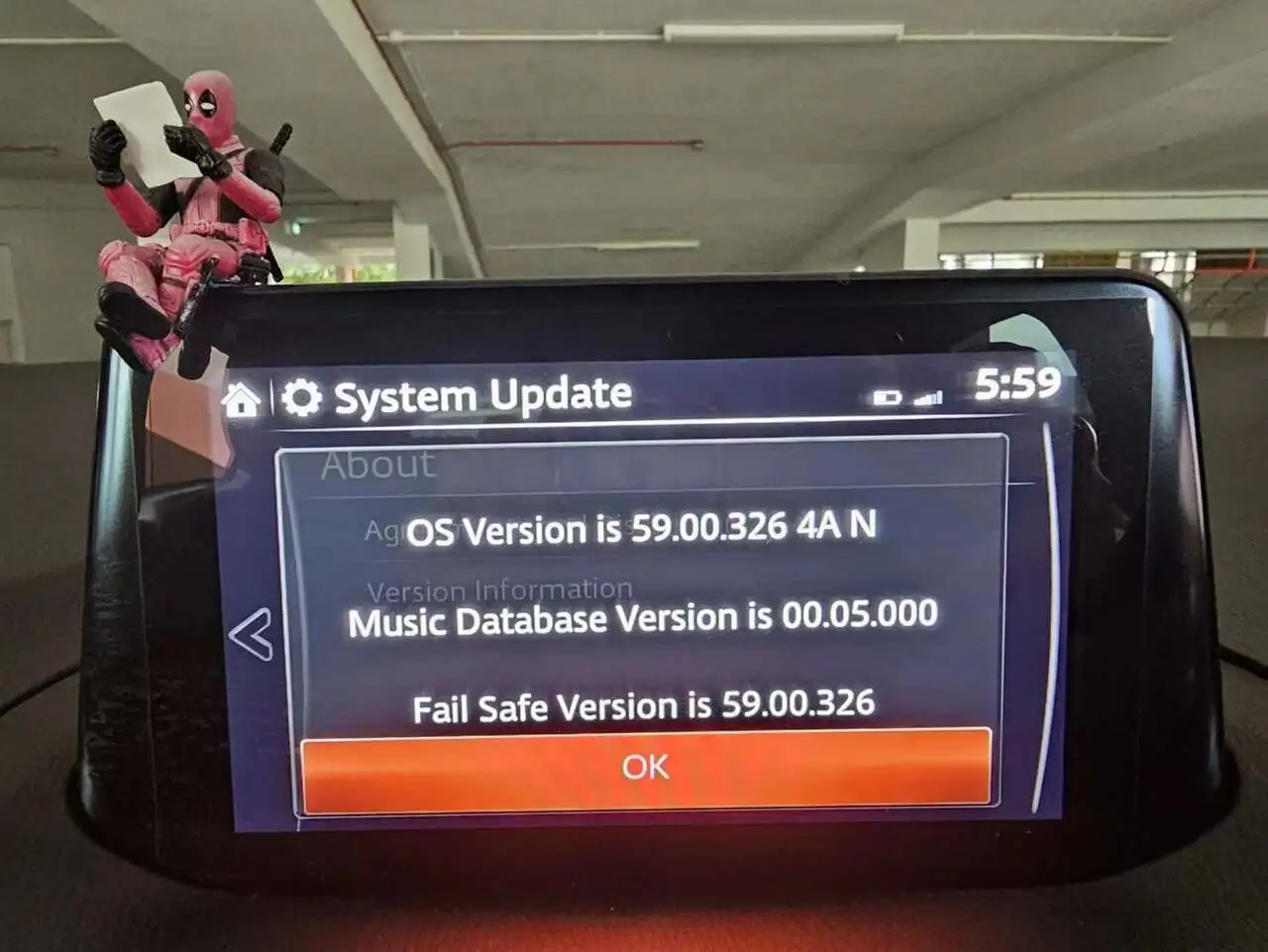

Attachments

  • ff0c27544d6deadf66f9ee985135291.jpg
    82.1 KB · Views: 160
Alvinos said:
Hi Ash,

Pls refer below and appreciate you could send me the files via mail to ************
Am driving an
2017 Mazda 3 HB (BN) / 1.5L Auto
Country - Singapore / Asia

Thanks alot!
Click to expand...

Please refer to the post you quoted. You have to PM, DM or Message @ASH8, not just post a reply in this thread. Thanks

MrAstinaGT said:
Hey everyone, just in Australia and need a firmware update link asap so I can have my carplay module installed! can anyone help :)
Click to expand...

Please follow the instructions:

ASH8 said:
If you want files from me you must PM, DM or Message me quoting the following...

I Need to know what FULL Version Number is used in car now.

1. Go to touchscreen red 'SETTINGS',
2. Side Scroll to Top Far Right Folder 'SYSTEM',
Scroll Down to 'ABOUT'
3. Touch 'Version Information'.
FULL Version Numbers and Region Letters are revealed,
Next ONLY send a Picture of this screen details.
Also tell me in what country is your Mazda driven in.
Click to expand...

ASH8 is your best source for these files, I recommend getting them from him and nobody else. PM, DM or Message him (do not reply to this thread) and wait for him to get back to you.

ASH8 said:
If you want files from me you must PM, DM or Message me quoting the following...

I Need to know what FULL Version Number is used in car now.

1. Go to touchscreen red 'SETTINGS',
2. Side Scroll to Top Far Right Folder 'SYSTEM',
Scroll Down to 'ABOUT'
3. Touch 'Version Information'.
FULL Version Numbers and Region Letters are revealed,
Next ONLY send a Picture of this screen details.
Also tell me in what country is your Mazda driven in.
Click to expand...
Hi, I just sent a DM. Thank you

omarjdmsir said:
Hello, how can i obtain the the 74.00.230 NAN files ? and would you have the steps? it's has been several years since i have updated my software. Thank you
Click to expand...

Please read the thread before posting. You need to do the following:

ASH8 said:
If you want files from me you must PM, DM or Message me quoting the following...

I Need to know what FULL Version Number is used in car now.

1. Go to touchscreen red 'SETTINGS',
2. Side Scroll to Top Far Right Folder 'SYSTEM',
Scroll Down to 'ABOUT'
3. Touch 'Version Information'.
FULL Version Numbers and Region Letters are revealed,
Next ONLY send a Picture of this screen details.
Also tell me in what country is your Mazda driven in.
Click to expand...

Hello, I own a 2018 Mazda 3. The current infotainment system on the car is 59.x. Can someone please share the link for 70.x and 74.x update?

Thank you in advance.

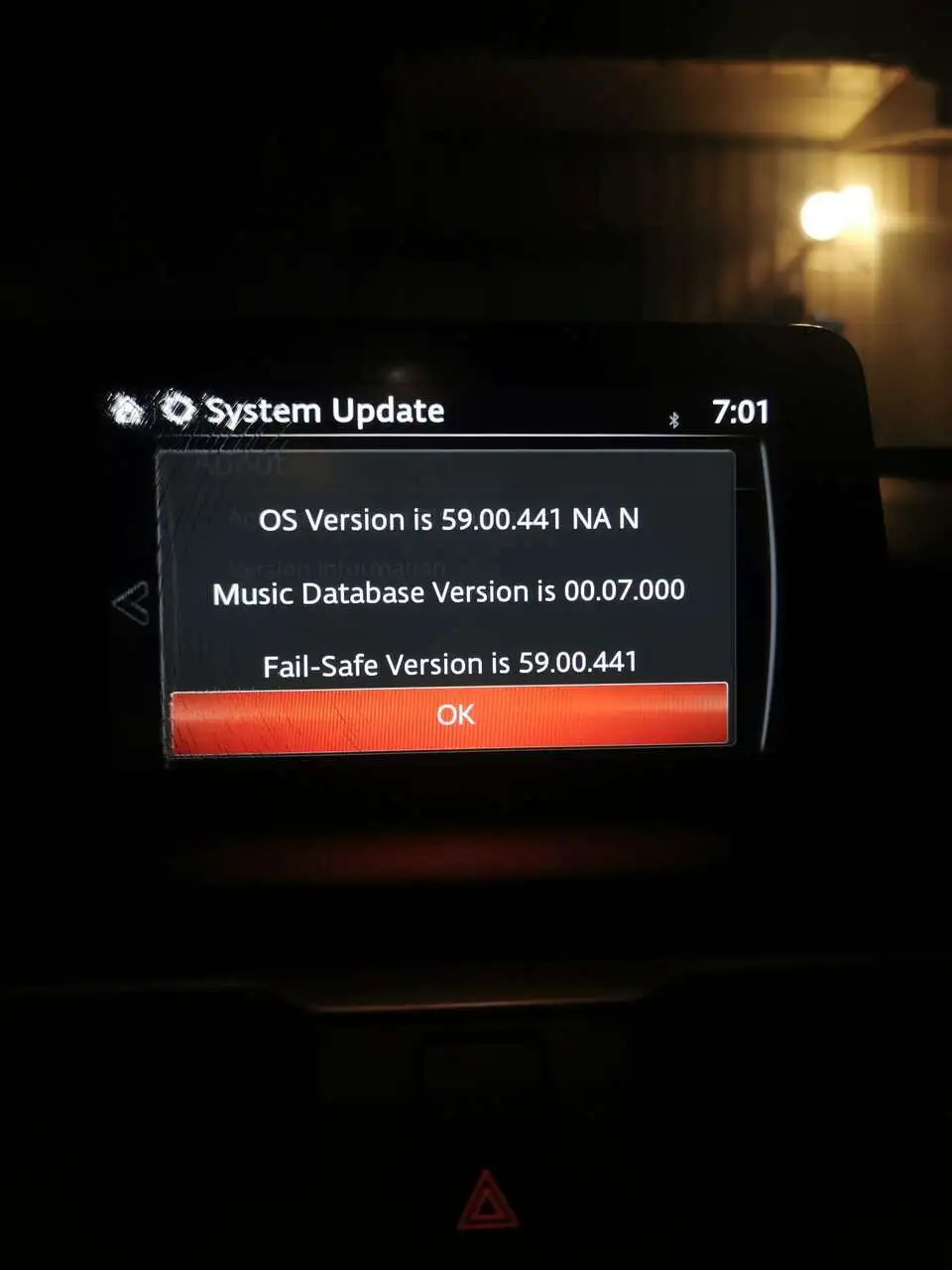

We live in Australia, and have a 2016 Mazda 3 with the following firmware:
OS Version is 59.00.342 4A N
Music Database Version is 00.05.000
Fail Safe Version is 59.00.342

To install the Carplay / Android Auto module I need a minimum of V70.00.21 or later.

If someone could be so kind to share the the firmware, it would be greatly appreciated. 😊

crikey said:
***** Moderator edit: The most recent update at this time is 74.00.324A. Please comb through the thread to learn how to obtain the update and installation instructions, and note that Mazdas247 does not assume responsibility of the actions taken by its members or the damages that may result from those actions.




Looks like there’s a new firmware, anyone try it yet?

74.00.230A

Changelog

***** MAZDA Firmware ALERT *****
from JUN 01, 2021

MAZDA (MZD) CONNECT, WHAT FIRMWARE DO I INSTALL..?

FOLLOW the .PDF INSTALLATION INSTRUCTIONS 100%.

*******************************
'.up' Firmware used for All MAZDA-MZD CONNECT MODELS 2014-2021.
**NOT For first production CX-5 or Mazda 6 with TomTom Navigation**.

*NOT For MAZDA CX-30 or MX-30 or MAZDA 3 (BP) see the
"CONNECT II 2019~" Folder for their own '.kwi' firmware*.

***NOT For 2021 MAZDA CX-5 (KF) or MAZDA CX-9 (TC) see the
"CONNECT 1.5 from 2021~" Folder for their own 'kwi' firmware***.

*******************************

BEFORE you START, Switch CAR OFF,
Then Remove Navigation 'SD Card' and
LEAVE the SD Card OUT of the Car until
the FINAL File is Installed.
Then Car OFF again, then Insert SD Card.
Then start car.
Navigation will work as normal when using CONNECT.
-------------------------------------

1. Your FIRST Install Procedure...

IF YOUR MAZDA has old FIRMWARE VERSION ON or BELOW 30.00.000
LIKE 23.00.000 or 25.00.150 or 28.00.300 or 29.00.100C
THEN YOU *MUST* UPDATE with Version Number 31.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

31.00.100A-FAILSAFE.UP (First)
Then next Install
31.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE NEXT VERSION
TO INSTALL.
-------------------------------------

2. Your NEXT Install Procedure...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or BELOW 59.00.560A
LIKE 31.00.100A or 41.00.000 or 51.00.351 or
55.00.650 or 56.00.513 or 59.00.502A
THEN YOU *MUST* UPDATE with Verion Number 70.00.100A FIRST.
THIS IS A TWO (2) FILE INSTALLATION FOR YOUR REGION or COUNTRY.

70.00.100A-FAILSAFE.UP (First)
Then Install
70.00.100A-REINSTALL.UP

Warning...!
DO NOT TURN OFF/ON or START ENGINE BETWEEN THIS
TWO FILE UPDATE, you INSTALL ONE after THE OTHER
DO NOT REMOVE USB FLASH DRIVE.

AFTER INSTALL RUN YOUR ''CONNECT'' IN CAR FOR
A FEW MINUTES,
THEN SHUTDOWN CAR FOR THE LAST FINAL VERSION
TO INSTALL.

-------------------------------------

3. Your FINAL Install Procedure is ONLY 1 (one) File now...

IF YOUR MAZDA HAS FIRMWARE VERSION ON or ABOVE 70.00.021A
LIKE 70.00.100A or 70.00.110 or or 70.00.150A or 70.00.335C or 70.00.367A
THEN YOU UPDATE to 74.00.230A for the LATEST FIRMWARE.

This is now a SINGLE FILE (1) ONLY INSTALLATION for
YOUR REGION or COUNTRY, MUST USE EITHER ONE of...

NA N_74.00.230A-UPDATE.UP (North America ONLY)
or
EU N_70.00.367A-UPDATE.UP (Europe/UK)
or
4A N_70.00.367A-UPDATE.UP (ADR, AU. NZ, ME, Asia)

THIS IS THE LATEST FIRMWARE CURRENTLY AVAILABLE.

INSTALLATION AS PER INSTRUCTIONS IN SERVER
''MAZDA FIRMWARE UPDATE PROCEDURE WORLDWIDE'' .Pdf

-------------------------------------

ALL 7x.00.xxxx FIRMWARE INCLUDES the Software for
CAR PLAY + ANDROID-AUTO....But...
For the CP/AA CONVERSION TO ACTUALLY WORK IN YOUR MAZDA
You MUST HAVE THE TWO ''GENUINE MAZDA PARTS'' INSTALLED
AFTER any 7X.00.XXXX is installed and or WORKING in YOUR CAR FIRST.

More Information on How to get CP/AA Working Do the Following..
OPEN THE ''-CARPLAY-ANDROIDAUTO INSTALL'' FOLDER IN
THIS SERVER ON HOW TO DO THE GENUINE CONVERSION.

THERE ARE NO SHORT CUTS or OTHER BRAND PARTS...NONE, SO DO NOT ASK.

YOU MUST PURCHASE AND INSTALL THE TWO GENUINE MAZDA PARTS, LAST.

YOU CAN NOT SEPARATE THIS CARPLAY and or ANDROID-AUTO
PACKAGE AS THEY ARE BOTH INSTALLED WITH all 7x.00.xxx FIRMWARE.

CARPLAY and ADROID-AUTO WILL NEVER WORK WITHOUT THE
TWO ''GENUINE MAZDA PARTS'' Finally INSTALLED Last...PERIOD.

***********************************

WCP or Wireless Car Play is included in all 74.00.xxxx Firmware, BUT
You MUST aslo use a new 2021 CMU meant for WCP use price is over $999 USD.

***********************************

If 74.00.230A is not in this Server for your Region it means a copy is not yet available
for Your Region or Country in the wild, yet.
Click to expand...
it works perfectly, thanks for all the help, everyone just try to follow the instructions that's it

mazdacat said:
Installed it a few days ago. All is working for me and had no issues during install
With previous FW 70.xx I had an intermittent issue with Android phone detection via USB cable.
Now it seems to be working fine.
I haven't seen any new features, as there was no changelog (your link does not work).

(2019 CX-9)
Click to expand...
How do you install these files?
