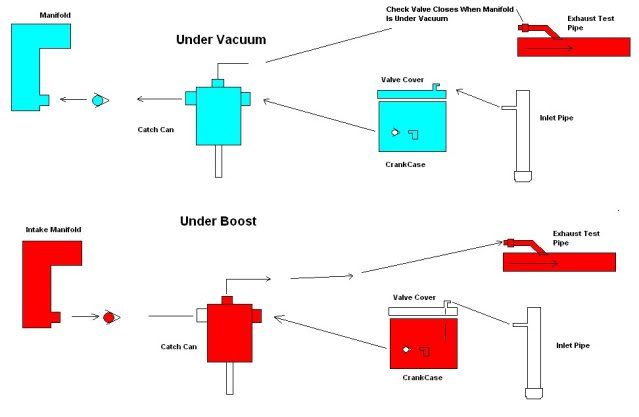

Long story short, I haven't been on here in ages, but recently sold my DNP mani on here and said I'd update my sig and make a thread @ new top mount BT set up, so here it is. Rocking a SteedSpeed Twin Scroll Top Mount Mani http://www.steedspeed.com/mazdaspeed_36_mzr_turbo_manifolds, A Garret Twin Scroll 3076 w/ .78 hot side (from SU Mark), and Tial 38mm ewg, vta. s*** spools fast as hell, and is fast as hell!!! All current mods in sig. I just finished the install on 4/28, so I'm still rocking the CPE fmic (plan on custom TR8 set up w/ 2.5" pipes). For prep work, I did the following: Upgraded injector seals (stockers blow out even w/ high boost on k04, causing false kr and can lead to head damage), egr delete, BSD w/ gpwerks.com baffled oil pan. I also upgraded all my CPE fmic couplers (which are bad, esp for BT) for some much thicker ply ones from siliconeintakes.com. All T-Bolt clamps (worms = fail). I also replaced ALL my vac line, and it's all is good and leak free (unlike before prep, lol).
Fellow forum member on msf dot org Dustin aka DJ makes a custom DP and SRI/Intkae one piece, and modifies the stock oil lines to work with the custom BT top mount turbo set up, and a custom screamer pipe to go with it. PM him on msf about the kit if you're interested. There's a grocery list of s*** to buy from ATP to complete the kit, and IIRC, it ran about $160. I can't stress enough that the injector seals are a MUST do and not a 'nice' benefit. A dude name SilverDemon created them, and sold them to CPE, where you can (and I did) buy them.

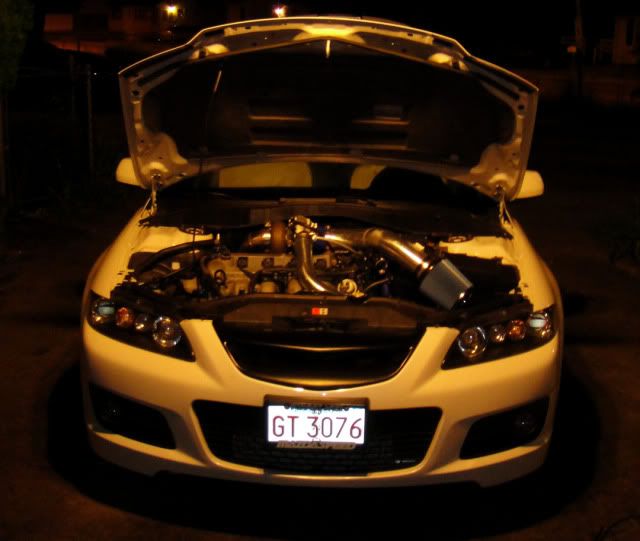

Enough mumbo jumbo, here's the finished product (installed w/ Carlson + Ben 5/28 in one day... I was fully bolted w/ meth, except I was still rocking the stock DP!!!!

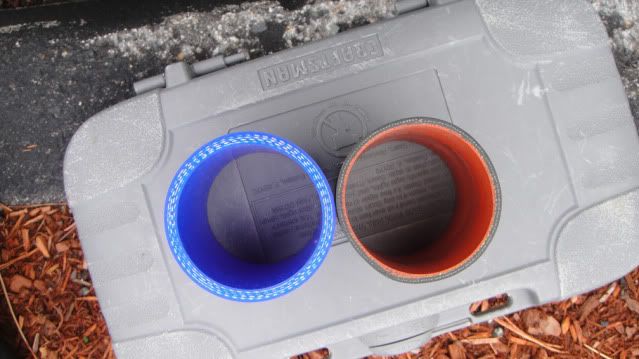

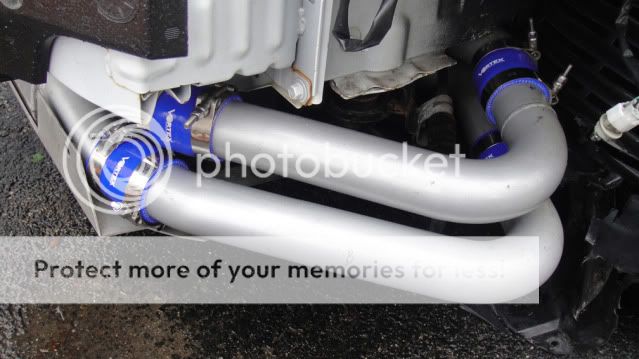

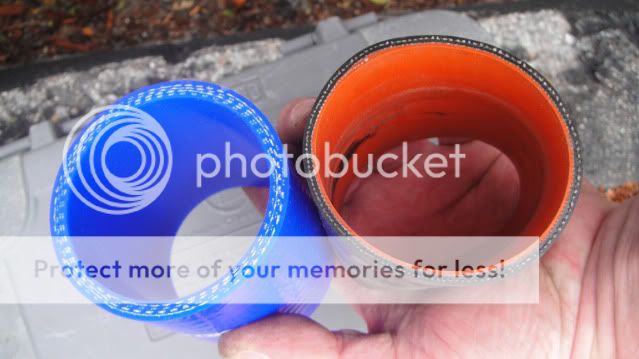

Ghetto CPE Couplers vs. Upgraded ones from Siliconeintakes.com. BTW, I've done 90% of the installs in my sig w/ just that lil' sears ratched set, in the very parking lot the following couplers pics were taken (FU people w/ gargages + tools galore!!! LOL JK
)
Installed:

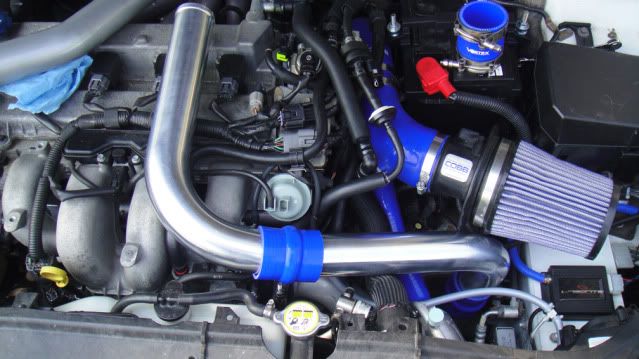

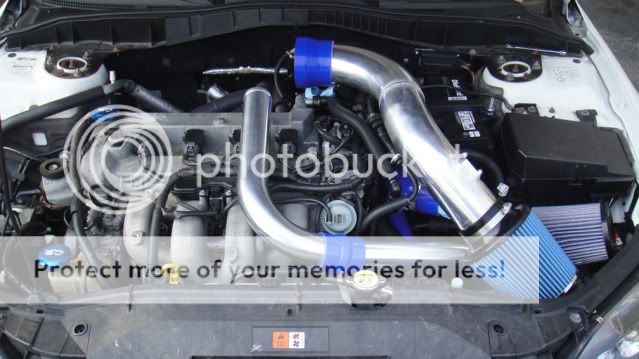

Also, the CPE hot pipe wouldn't fit (different turbo location), but two 18" 2.25" L-pipes and hump hoses did the trick, with no fabbing required! Mocked up before install:

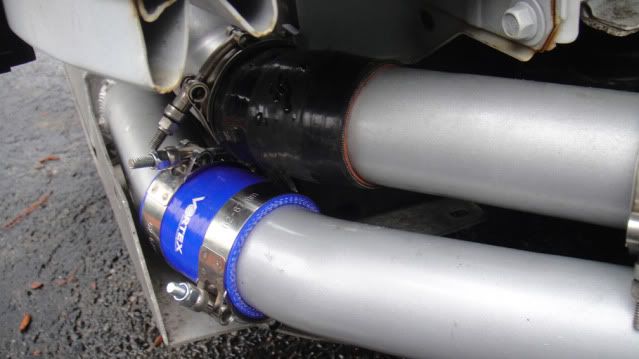

I also had to ditch the stock hood liner tmic scoop thingy so I could close the hood w/ the giant intake, lol:

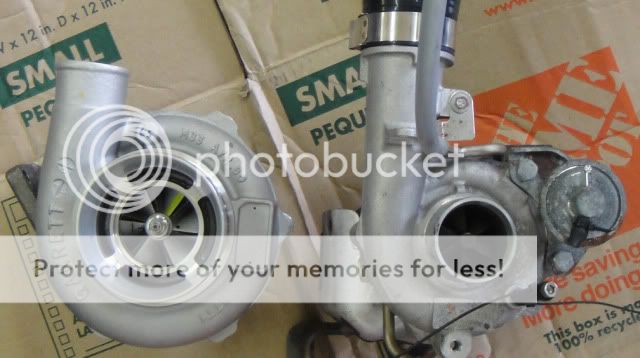

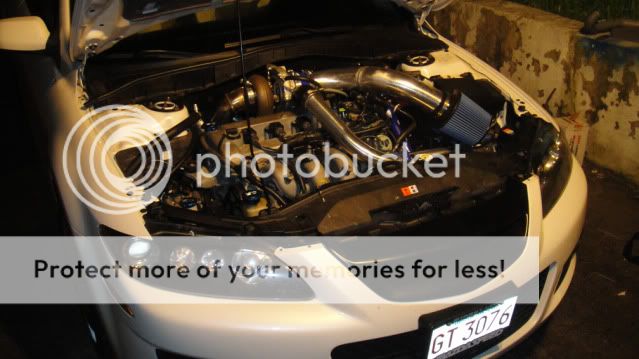

Install... K04 vs. TS3076:

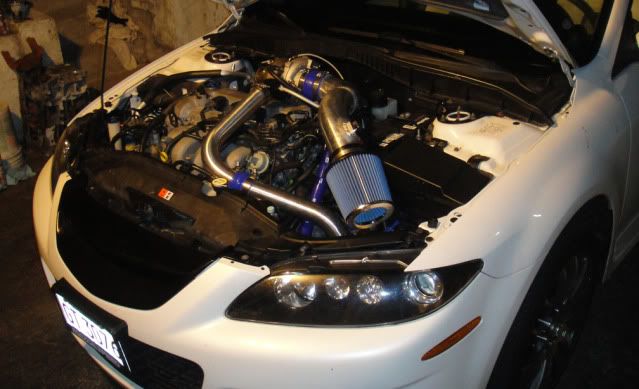

BT Install, finished pics:

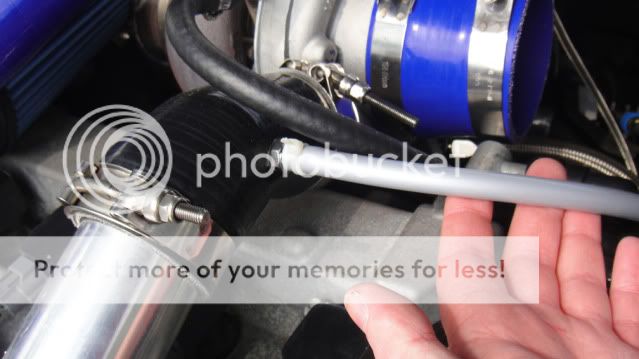

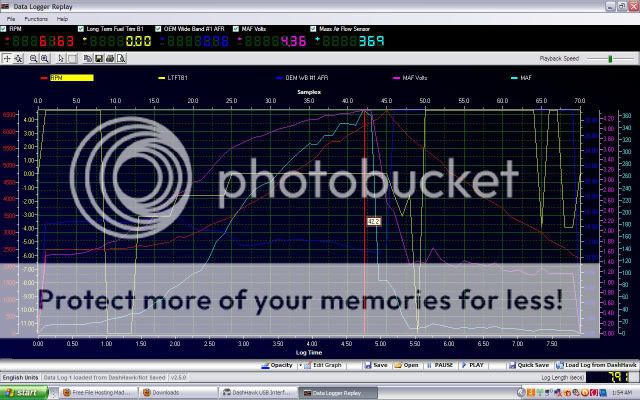

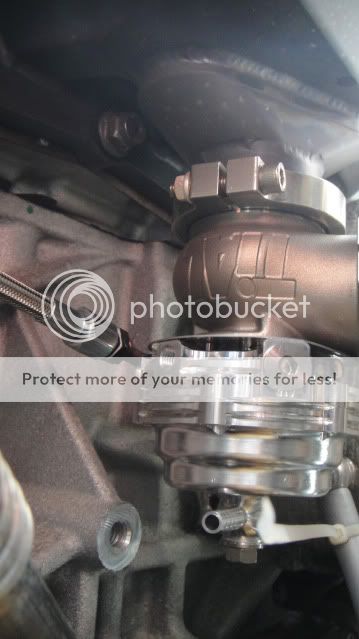

I ditched the ebcs to run spring out of tuning convenience. I'm running a 16psi spring (Tial ewg), but I'm holding 20-21 psi (logs attached). I used an ATP quick tap for a boost source to the Tial:
Don't mind the zip ties, lol

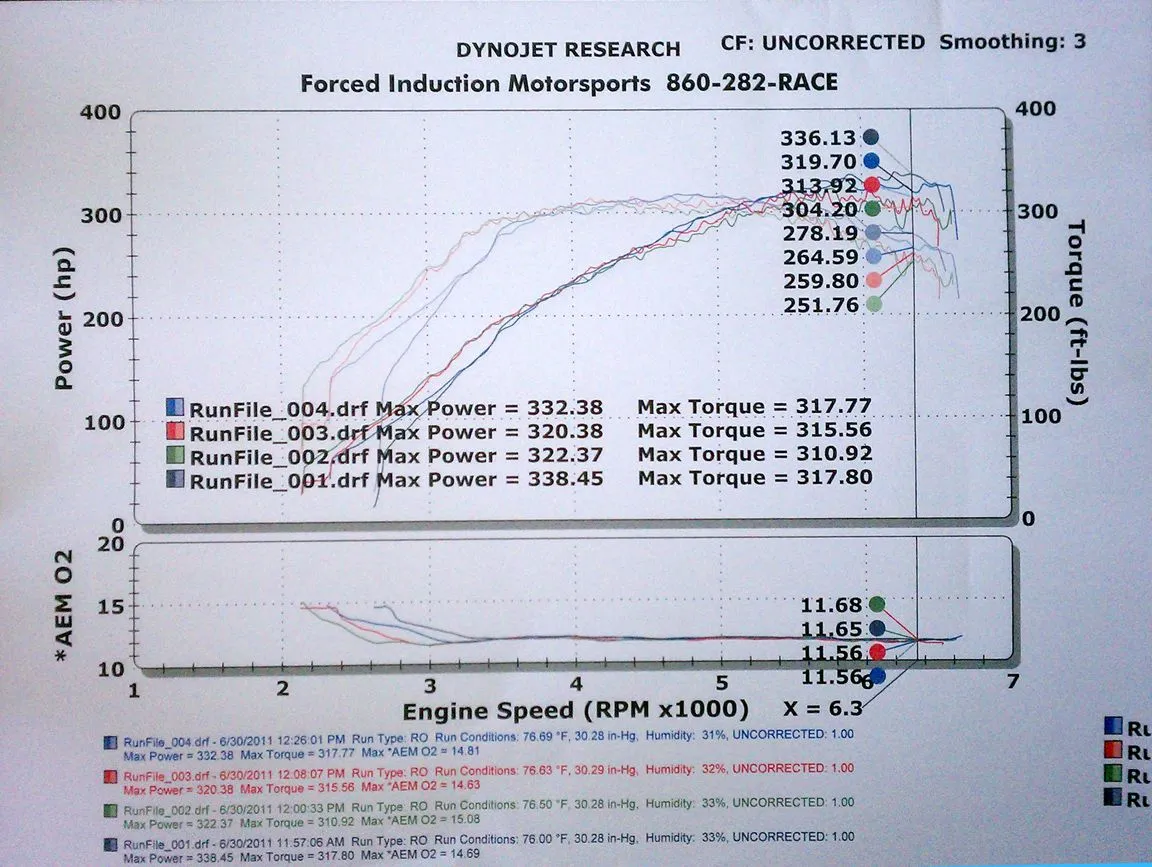

That's all folks! Car is fast as hell. Max grams/sec I ever pushed on stock K04 (fully bolted except for DP) was 270g/s @ 20psi. With the ts3076, I was pushing 364 g/s and increasing @ 6,100rpms, but I had to slow down before I rammed the car in front of me, lol. Car is sick.. can't recommend BT enough to anyone. If you don't go twin scroll GT3076, go twin scroll GT35R!!!!
Fellow forum member on msf dot org Dustin aka DJ makes a custom DP and SRI/Intkae one piece, and modifies the stock oil lines to work with the custom BT top mount turbo set up, and a custom screamer pipe to go with it. PM him on msf about the kit if you're interested. There's a grocery list of s*** to buy from ATP to complete the kit, and IIRC, it ran about $160. I can't stress enough that the injector seals are a MUST do and not a 'nice' benefit. A dude name SilverDemon created them, and sold them to CPE, where you can (and I did) buy them.
Enough mumbo jumbo, here's the finished product (installed w/ Carlson + Ben 5/28 in one day... I was fully bolted w/ meth, except I was still rocking the stock DP!!!!
Ghetto CPE Couplers vs. Upgraded ones from Siliconeintakes.com. BTW, I've done 90% of the installs in my sig w/ just that lil' sears ratched set, in the very parking lot the following couplers pics were taken (FU people w/ gargages + tools galore!!! LOL JK
)
Installed:
Also, the CPE hot pipe wouldn't fit (different turbo location), but two 18" 2.25" L-pipes and hump hoses did the trick, with no fabbing required! Mocked up before install:
I also had to ditch the stock hood liner tmic scoop thingy so I could close the hood w/ the giant intake, lol:
Install... K04 vs. TS3076:

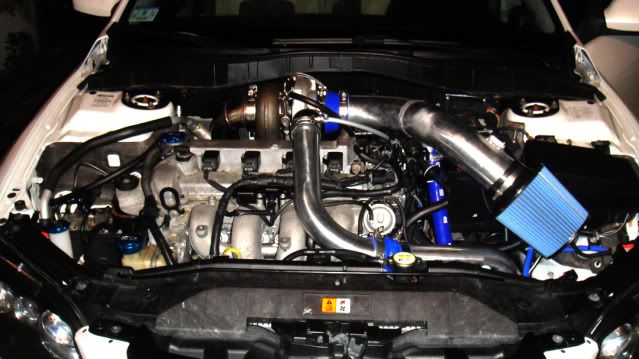

BT Install, finished pics:
I ditched the ebcs to run spring out of tuning convenience. I'm running a 16psi spring (Tial ewg), but I'm holding 20-21 psi (logs attached). I used an ATP quick tap for a boost source to the Tial:
Don't mind the zip ties, lol
That's all folks! Car is fast as hell. Max grams/sec I ever pushed on stock K04 (fully bolted except for DP) was 270g/s @ 20psi. With the ts3076, I was pushing 364 g/s and increasing @ 6,100rpms, but I had to slow down before I rammed the car in front of me, lol. Car is sick.. can't recommend BT enough to anyone. If you don't go twin scroll GT3076, go twin scroll GT35R!!!!
