boost gauge

[RevLimitLaunch]

anyone with a mechanical boost gauge. what vac hose did you tap into?? im looking to do this asap. i could do it from a vac line off the intake mani that goes to the bov but i'd like to see if anyone else found a better place yet. thanks for any help in advance. greatly appreciated.



[Rican219]

Also Curious



[buit9110]

i tapped the vac line comming from the stock bov.



[RevLimitLaunch]

thats what i was going to do, but i figured there would be a better way. i don't like to tap into the bov line this way it has its own direct vac source. when i had my 93 talon, a thread on a dsm forum discussed how that tapping into the bov vac line can lag your bov from opening, which obviously isn't good.



[RevLimitLaunch]

bump



[RevLimitLaunch]

bump, where did you route your boost gauge line thru on the firewall?



[vert]

bump, where did you route your boost gauge line thru on the firewall?

I just ran a long thin screwdriver through the rubber grommet on the firewall to put a small hole in it. I then ran a 2" long plastic sleeve 1/4" wide through the grommet. Once that was done, I fed the line through it.



[RevLimitLaunch]

not a bad idea. what line did you tap into? bov?



[vert]

not a bad idea. what line did you tap into? bov?

Yes I did, but tap into the line as close to the motor you can get.



[RevLimitLaunch]

yeah i know that. now i just gotta wait for the prosport (first)

where did you tap your wires into?



[vert]

yeah i know that. now i just gotta wait for the prosport (first)

where did you tap your wires into?

I tapped into both of the cig. 15amps fuses.



[mrmister]

Do you happen to have a picture of where you hooked into for electric.

Thanks.



[clos56l]

siiiiiiiiiiiiiiiik



[vert]

Do you happen to have a picture of where you hooked into for electric.

Thanks.

sure I will take one at halftime



[vert]

Do you happen to have a picture of where you hooked into for electric.

Thanks.

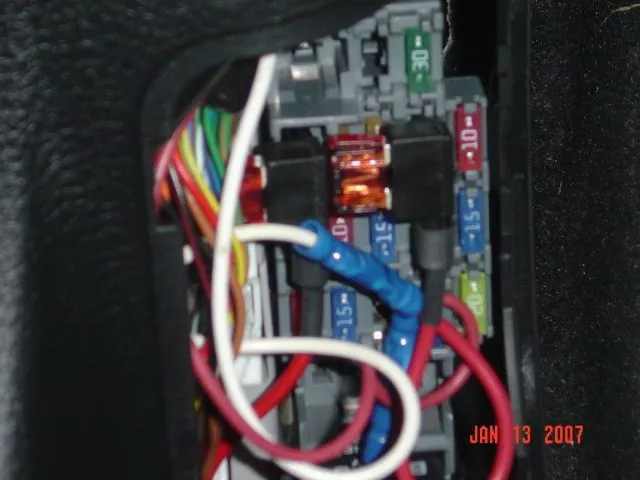

I used two fuse splitters in the cig locations.



[vert]

I am using the VEI gauge so I do not use the dim feature. I ran the power 12v wire to one and ran the wire for lights to the other cig fuse.



[mrmister]

Where'd you buy those fuse splitters from?



[Kansei]

siiiiiiiiiiiiiiiik

(ughdance)



[vert]

Where'd you buy those fuse splitters from?

I picked them up from autozone, around 5 bucks each.



[mrmister]

Does the lighter stay on during the time when you start the car?
